Entron iPAK2

Section 12 Confi
g
uration 58

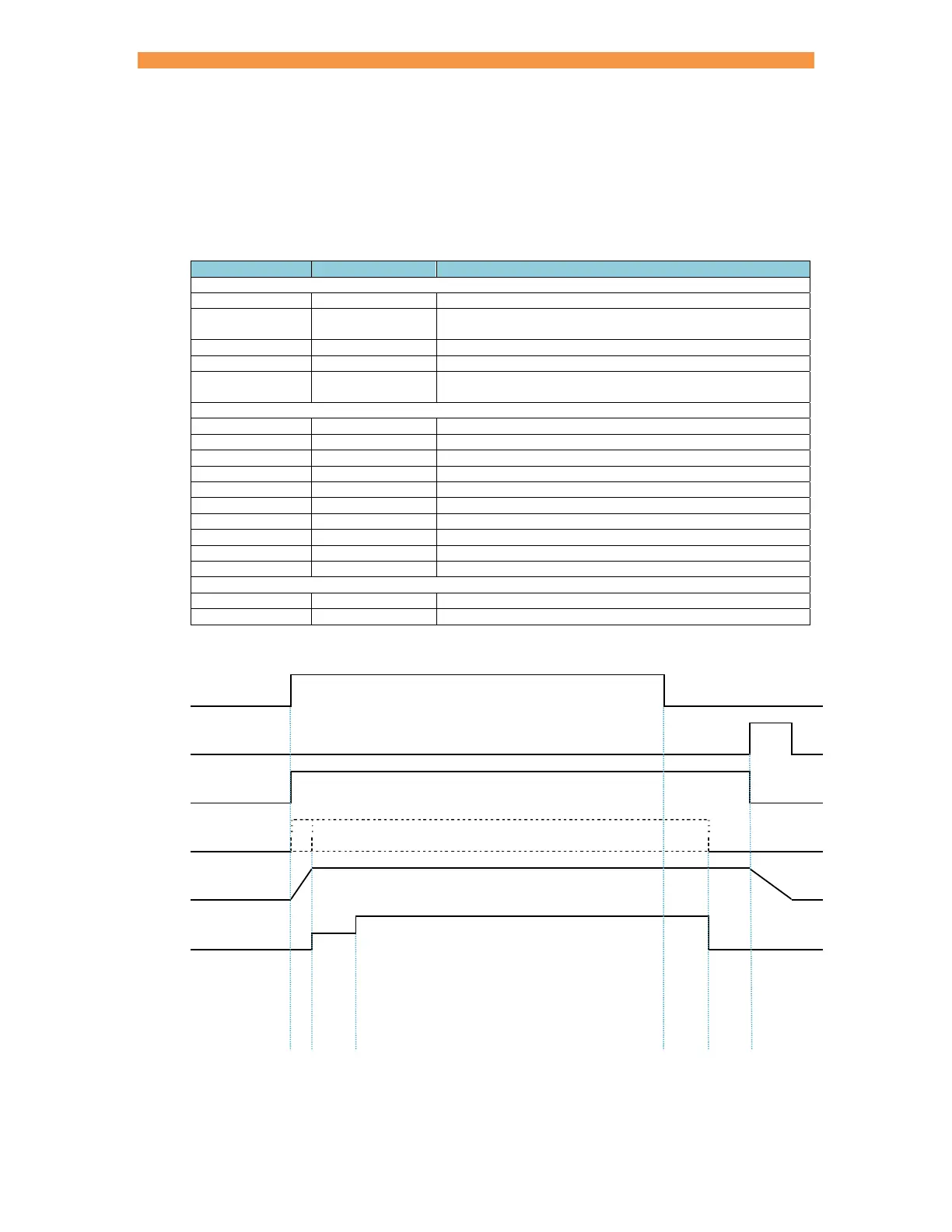

Seam pre-heat
Pre-heat can be used in applications where the initial current needs to be different to the main current. The
following example shows a continuous seam weld with a pre-heat.
Parameter Setting Description
Sequence timing
Presqueeze ms The time for the electrodes to close onto the work piece.
Squeeze ms The time between the initial application of the electrode force
and the first application of welding current
Pre-heat ms The pre-heat welding current is applied
Main heat ms The main welding current is applied
Hold ms Electrode force continues after the welding current has
finished
Current control
Pre-mode P/W
–
CCu
–
CCC Operating mode of the Pre-heat interval
Pre-heat % The % heat used during the Pre-heat interval
Pre-current kA The current used during the Pre-heat interval
Pre-monitor
1
yes/no The current can be tested between limits
Main mode P/W
–
CCu
–
CCC Operating mode of the Main heat interval
Main heat % The % heat used during the Main heat interval
Main current kA The current used during the Main heat interval
Main monitor
1
yes/no The current can be tested between limits
Low limit
1
% Current low limit
High limit
1
% Current high limit
Options
Pre-heat yes Enable the Pre-heat parameters
Post-heat no Disable the Post-heat parameters
1
optional
Start input
1
EOS output
WAV output
Motor output
2
Force
Current
Interval S
q
ueeze
Pre-heat Main heat Hold
1
The Main heat interval is repeated until the Start input is removed.
2
The operation of the motor output is determined by the 2
nd
stage test (Section 12 Configuration).
