Entron iPAK2

Section 12 Confi
g
uration 57

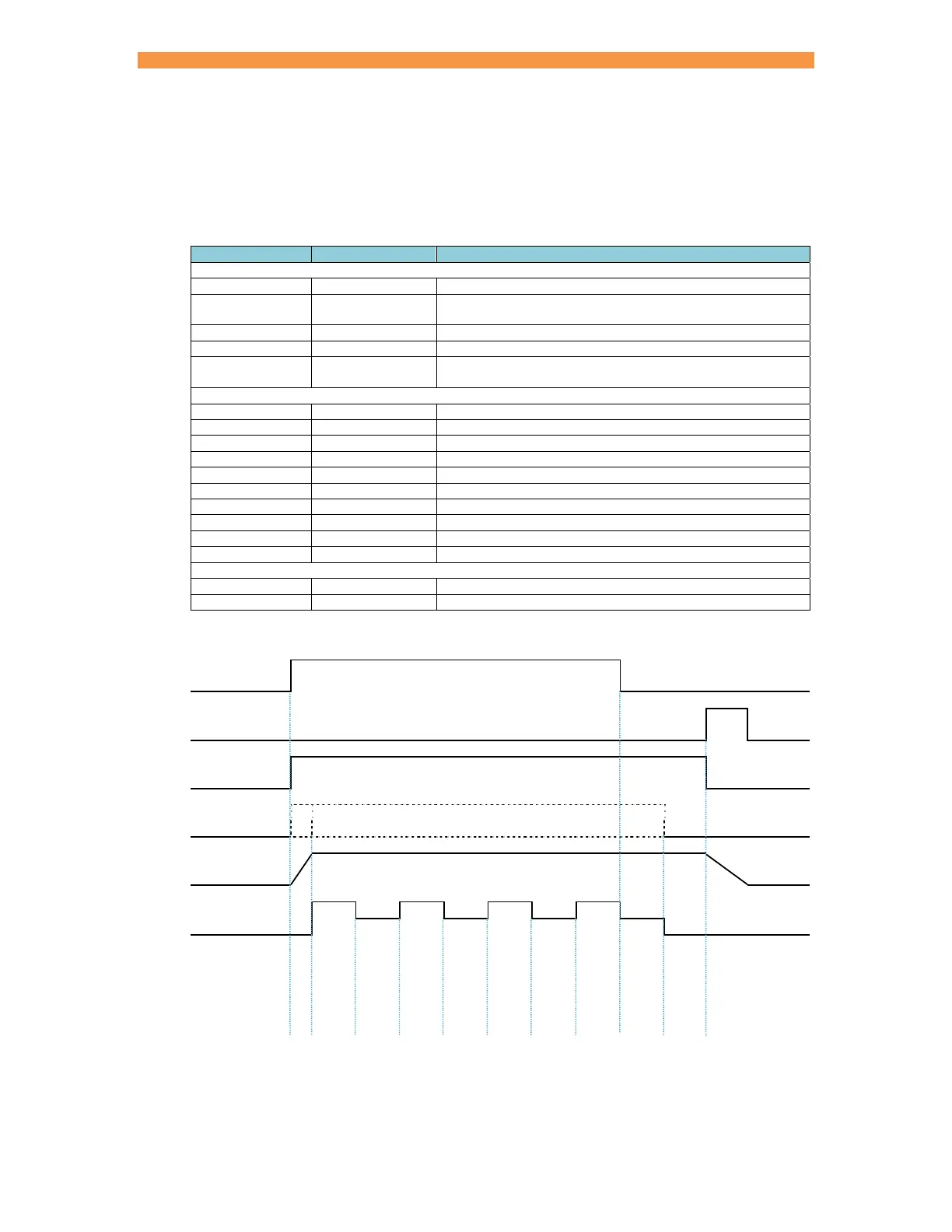

Seam modulation
Seam modulation can be used in applications where a change in current is required. Two Heat intervals are
repeated for the duration of the weld. The following example shows how this type of sequence may be
implemented.
Parameter Setting Description
Sequence timing
Presqueeze ms The time for the electrodes to close onto the work piece.
Squeeze ms The time between the initial application of the electrode force
and the first application of welding current
Main heat ms The main welding current is applied
Post-heat ms The post-heat welding current is applied
Hold ms Electrode force continues after the welding current has
finished
Current control
Main mode P/W – CCu – CCC Operating mode of the Main heat interval
Main heat % The % heat used during the Main heat interval
Main current kA The current used during the Main heat interval
Main monitor
1
yes/no The current can be tested between limits
Post mode P/W – CCu – CCC Operating mode of the Post-heat interval
Post heat % The % heat used during the Post-heat interval
Post current k
A
The current used during the Post-heat interval
Post monitor
1
yes/no The current can be tested between limits
Low limit
1
% Current low limit
High limit
1
% Current high limit
Options
Pre-heat no Disable the Pre-Heat parameters
Post-heat yes Enable the Post-heat parameters
1
optional
Start input
1
EOS output
WAV output
Motor output
2
Force
Current
Interval S
q
ueeze
Main heat Post- heat Main heat Post- heat Main heat Post- heat Main heat Post- heat Hold
1
The Main heat – Post-heat intervals are repeated until the Start input is removed.
2
The operation of the motor output is determined by the 2
nd
stage test (Section 12 Configuration).
