EMW90HDNC1U Air-cooled Chiller
3 Installation Guide
3.1 Installation
Instructions
In order to achieve the design performance of
chillers and maximize their service life, please
reserve space for installation and maintenance
with reference to the suggestions provided by
manufacturers, and strictly install equipment
drawings for installation.
3.1.1 Transportation and
Handling
During transportation and handling, please
ensure that the outer packaging is complete,
avoid moisture or damage to the outer
packaging, and ensure that the chiller is
protected from collision, rain and chemical
corrosion.
Please keep the chiller upright during
transportation and handling, and it is strictly
forbidden to lie on its side or turn it upside
down.
When handling the bare machine of the chiller, it
is forbidden to use the coolant inlet and outlet
interfaces as the force-bearing support.
3.1.2 Physical Dimension

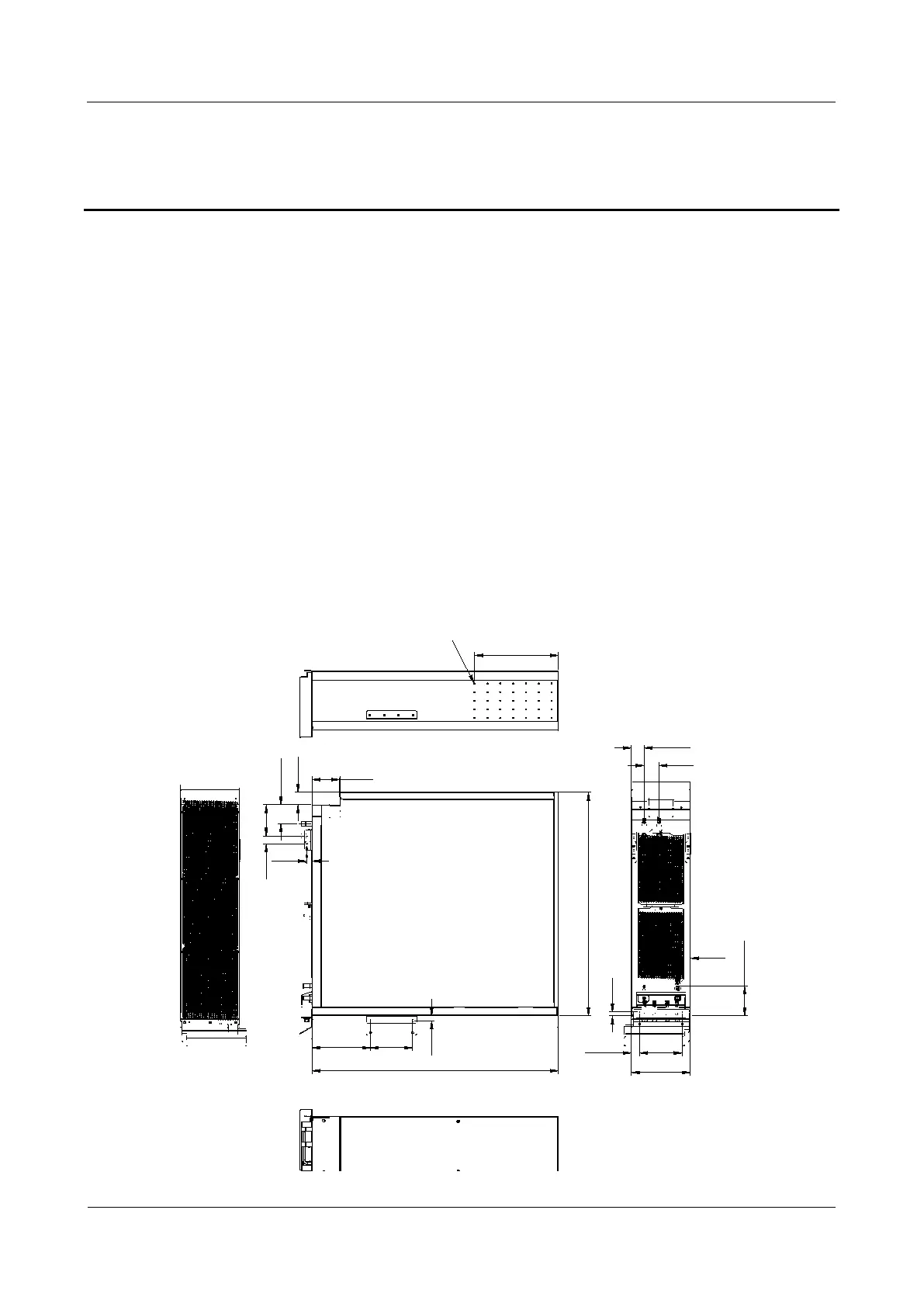

The dimension of the EMW90HDNC1U chiller is shown in Figure 3-1.
Figure 3-1 Physical dimension
1150
1040
275
70
58.5
87.5
59
130
138.5
59
196
273
23
198.6
38.2
18
14636
25
Ø6
391.5
