EMW90HDNC1U Air-cooled Chiller
2 Product Description
2.1 Feature
2.1.1 Product Introduction
Product Appearance

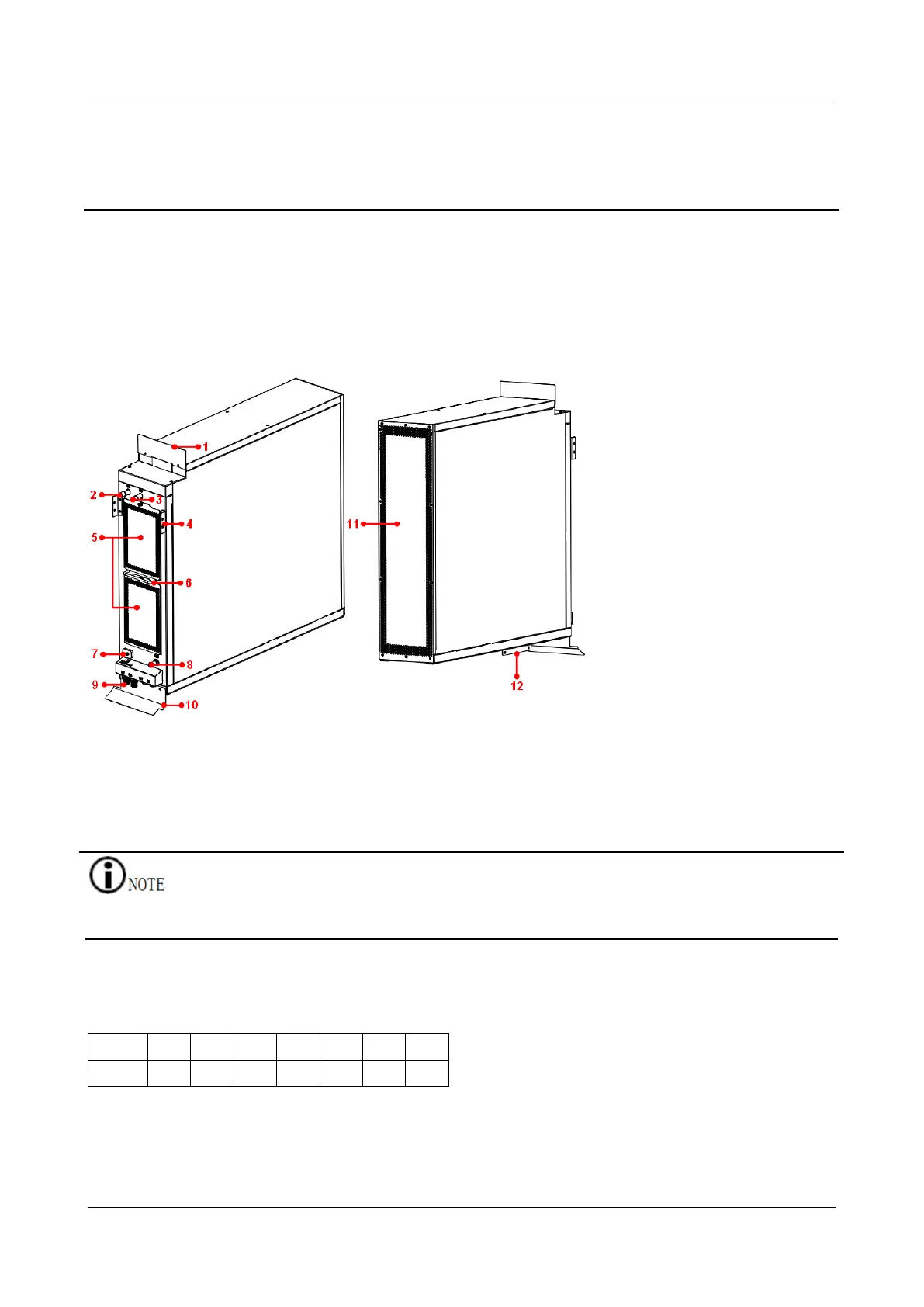

The appearance of EMW90HDNC1U chiller is shown in Figure 2-1.
Figure 2-1 Product appearance
1: Top air baffle 2: Coolant inlet 3: Coolant outlet 4: Side fixing plate
5: Air inlet 6: Pull ring 7: Grounding nut
8: Coolant filling /
drain port
9: User wiring terminal 10: Bottom air baffle 11: Air outlet 12: Bottom fixing plate
Figure 2-1 shows the chiller appearance after installing the air baffles and fixing plates. When installing the chiller, please
obtain the air baffles and fixing plates from the delivered fittings.
Model Description
The naming rules of EMW series air-cooled chiller
are shown in Table 2-1.
Table 2-1 Naming rules
EMW
90
H
D
N
C
1
U
1 2 3 4 5 6 7 8
1 Product series
EMW: air-cooled chiller
series
2 Rated cooling
capacity
90: 9kW
3 Basic function H: with heating
4 Installation
method
D: Insert in a frame
5 Application
environment
N: normal temperature
6 Noise level C: common noise
7 Input Power
supply
1: 220VAC 50/60Hz
8 Version code U
