User Manual
Gobi-640-17µm and Gobi-384-25µm-GigE, CL, CXP Camera
6. Getting Started
6.1. Install the Software
First perform the Xeneth installation and when necessary the SDK installation as well (see
chap. 5 Software Installation.)
6.2. Connect the Cables
The cable information and interfaces is described in chap. 4 Electrical Interface.
6.3. Connect the Camera via Xeneth
When connecting the GigE interface: see (Ref. 6) otherwise do the following:

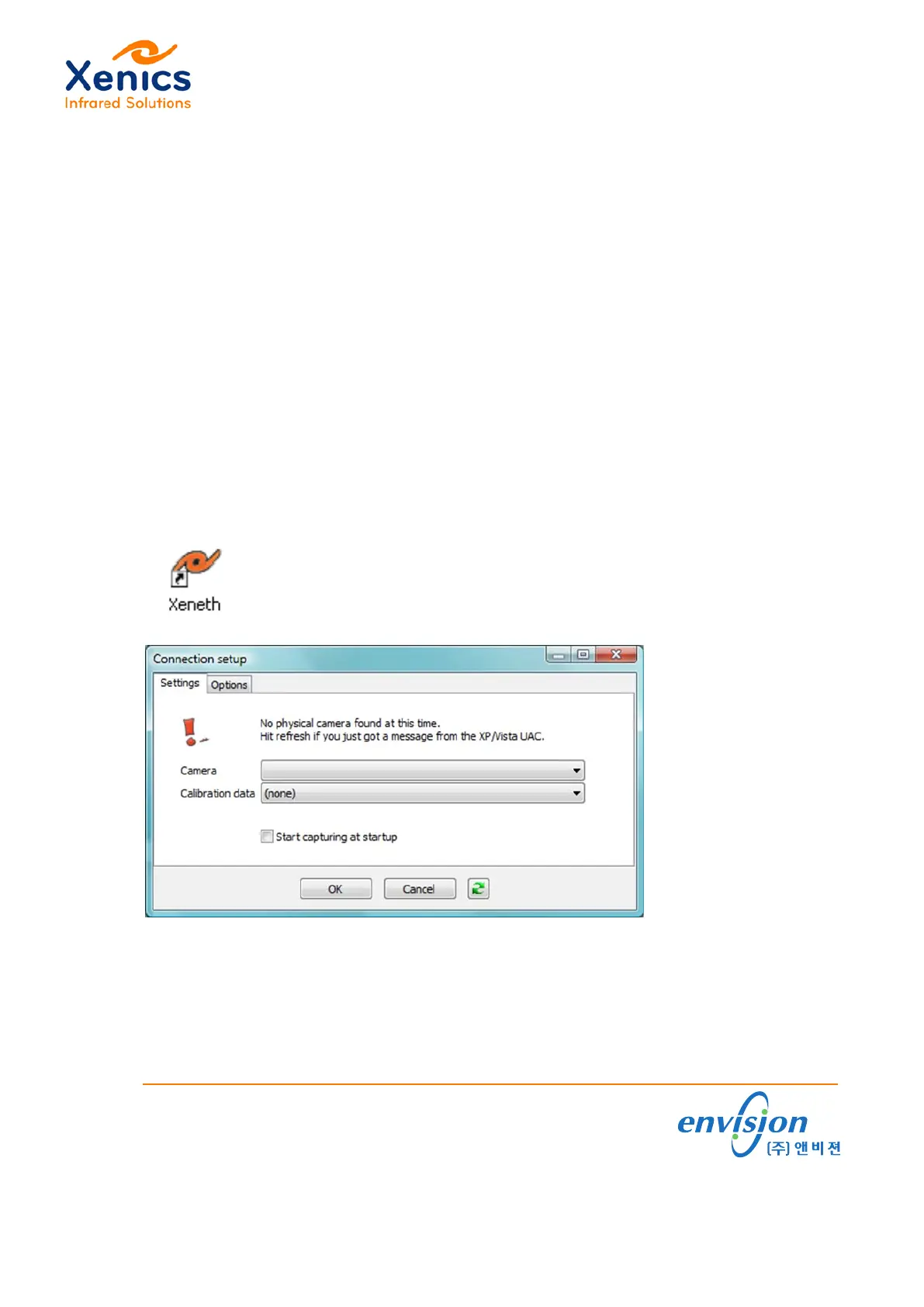

Click the Xeneth shortcut on the desktop to start up Xeneth (see Figure 6-1). The
connection dialog will become visible (see Figure 6-2). When the camera is not shown,
click the refresh button on the dialog. Select the camera, together with the calibration data
suited for it. For more details, consult the Xeneth User Manual, section Connection setup -
Settings.
Figure 6-1 Xeneth shortcut
Figure 6-2 Connection dialog - settings
