3.4.3 Lifting and depositing loads
Before raising a load, the driver must ensure that it is correctly palletised and that the
capacity of the truck is not exceeded.
• Insert the forks as far as possible underneath the load.

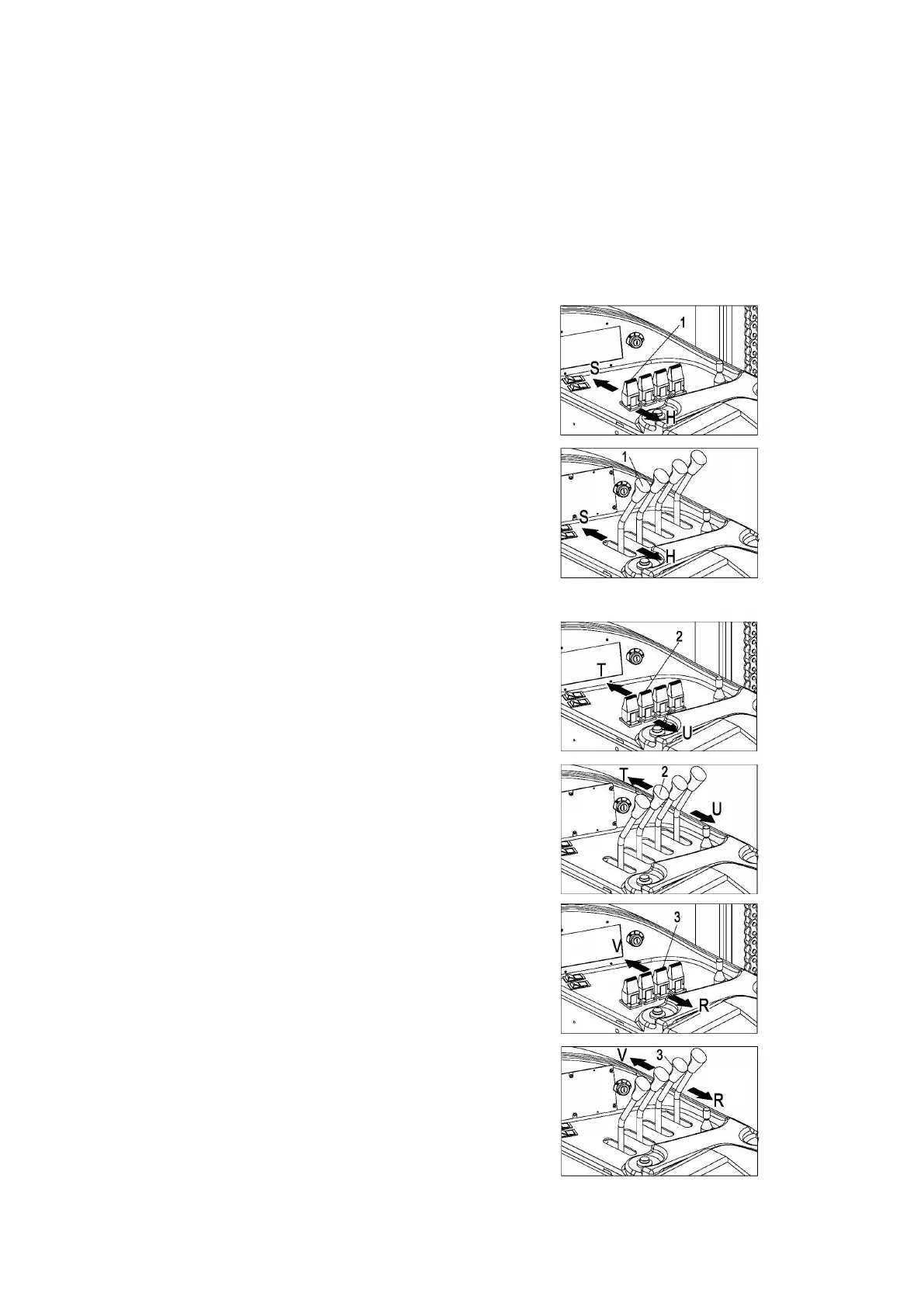

1.Lifting - Lowering
Do not reach into the mast. Do not allow anyone to stand underneath a raised load.
Lifting
Pull the control switch/lever (1) towards direction
(H) until you reach the desired lift height.
The lifting speed is determined by the inclination
of the control switch/lever.
Lowering
Pull the control switch/lever (1) towards direction
(S) until you reach the desired height.
The lowering speed is determined by the inclination
of the control switch/lever.
2.Extending - Retracting
Do not reach between the mast and the
battery cover.
Extending
Move the control switch/lever (2) in direction (T)
to extend the mast support forward.
Retracting
Move the control switch/lever (2) in direction (U)
to retract the mast support backward.
3.Forward - Backward Tilting
Do not reach between the mast and the
battery cover.
Tilting Forward
To tilt forward, push the control switch/lever (3)
in direction (V).
Tilting Backward
To tilt backward, push the control switch/lever (3)
in direction (R).
