ep F4 - Intended Use; Technical Description; Schematic Views

Intended use
The truck is designed for transporting and lifting the loads stated in the nameplate.
In particular we refer to:
• the safety rules of your trade association.
• In accordance with the special provisions for driving on public roads specied by national
specications.
• Other local regulations.
The rules for the intended and approved use of industrial trucks must be followed under all
circumstances by the responsible persons, especially by the operator and service personnel.
The user, and not manufacturer is responsible for any danger arising from applications not
authorised by the manufacturer.
If you want to use the truck for applications not mentioned in this manual, please rst contact your
authorised dealer.
No changes, particularly no modications and additions, may be made to the truck without the
approval of the manufacturer.
Technical description
• The truck consists of robust steel chassis and is driving on a traction wheel and 2 load wheels,
providing for good stability even with high loads.
• The truck will be stopped by a regenerative service brake and hold by an automatic
electromagnetic parking brake in it’s parking position.
• The load is lifted by a hydraulic cylinder that activates a lifting shaft that transmits the lifting
movement by a push-rod to the load wheels.
• The F4 can be equipped with two kinds of control hand. The control handle is used for smooth
steering and control of drive speed, lifting and lowering, braking and the horn without changing
the position of the hand. The long tiller shaft allows e󰀨ortless steering and a safe distance to the
truck. A spring returns the control handle always into a vertical position that activates the brake
automatically.
• The F4 can be equipped with two lithium-ion battery , when the one is low power, it can be
removed from side e󰀨ortlessly, the rest battery can still support the truck to work.
• An electronic controller operates all electric functions and guaranties safety.
• Adopted single-cylinder two-connecting rod structure is simple and reliable, with good lifting
• synchronism.
• A key switch secures the truck from unauthorized use.
• The ergonomic design of the truck guaranties safe and easy operation.
This manual is used for operation and mainten
ance, the detail parameters, size and specicatio
ns in context is only for reference , the real para
meters will depend on sale les.
Manual pictures for reference only, the real car
shall prevail, and shall not a󰀨ect the manual use.
Manual pictures only sign for one of the models
in this series models.

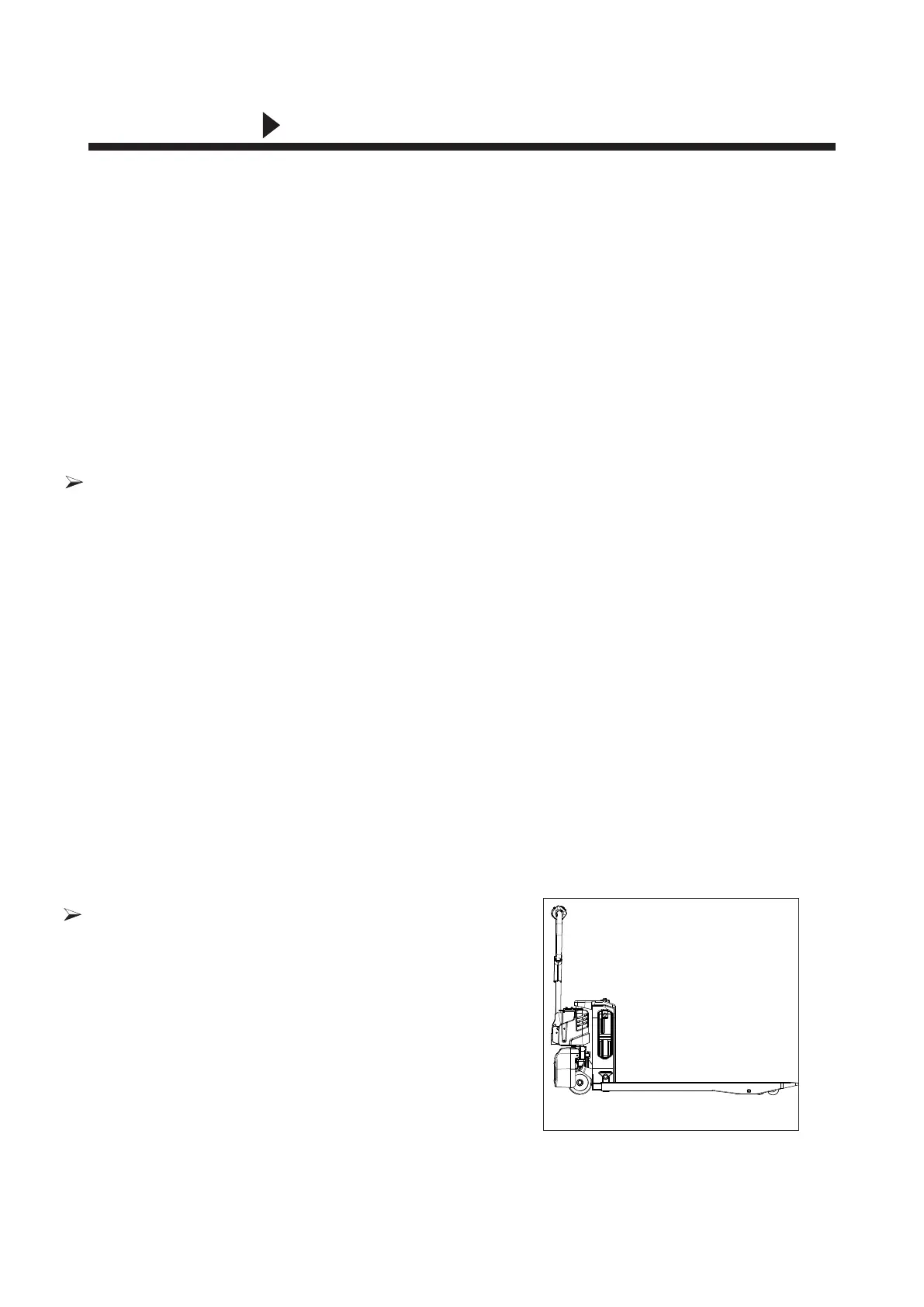

Schematic views
Fig1154-00006OM
