Maintenance Instructions
Prepare the truck for maintenance and repairs
All necessary safety measures must be taken to avoid accidents when carrying out
maintenance and repairs. The following preparations must be made:
Park the truck securely (See chapter B section 1.3.6).
Remove the key to prevent the truck from accidentally starting.
When working under a raised lift truck, secure it to prevent it from tipping or sliding away.
Remove the cover

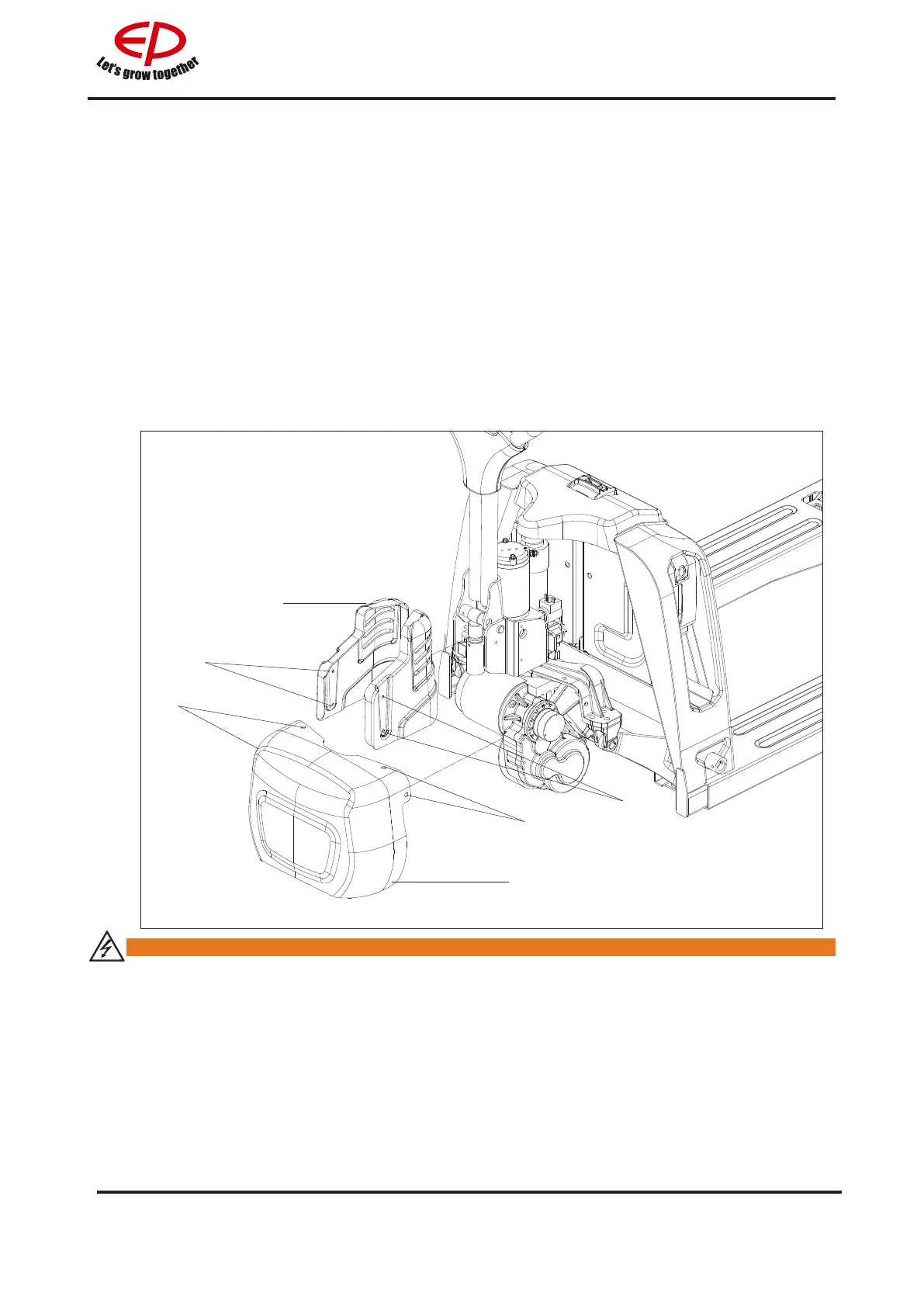

Unscrew four screws (1), remove driving cover (2);
Swivil the control handle 90 degrees, unscrew hydraulic cover (4) of the four screws (5) via
the spaces.
•
•
•
•
•
1.3
1.3.1
1.3.2
2
1
1
4
5
5
WARNING
Remove or install the drive cover, carefully clip hand !
When the drive cover is removed, it is dangerous and does not allow operation of the truck.
Fig1154-00013OM
