Frame installation
• Install the front and rear frame before operating the truck for the rst time.
• Put the front frame (1) under the rear frame (2) and insert the cylinder (3) into the cylinder block
(4);
• Connect the harness and wires;
• Screw six bolts (6) to connect the rod and drive axle.
• Install the batteries (7) of both side.
• Now the truck can be operated. Follow chapter B Section 1.3.2 Commissioning.
1
2
7
7
3
6
4

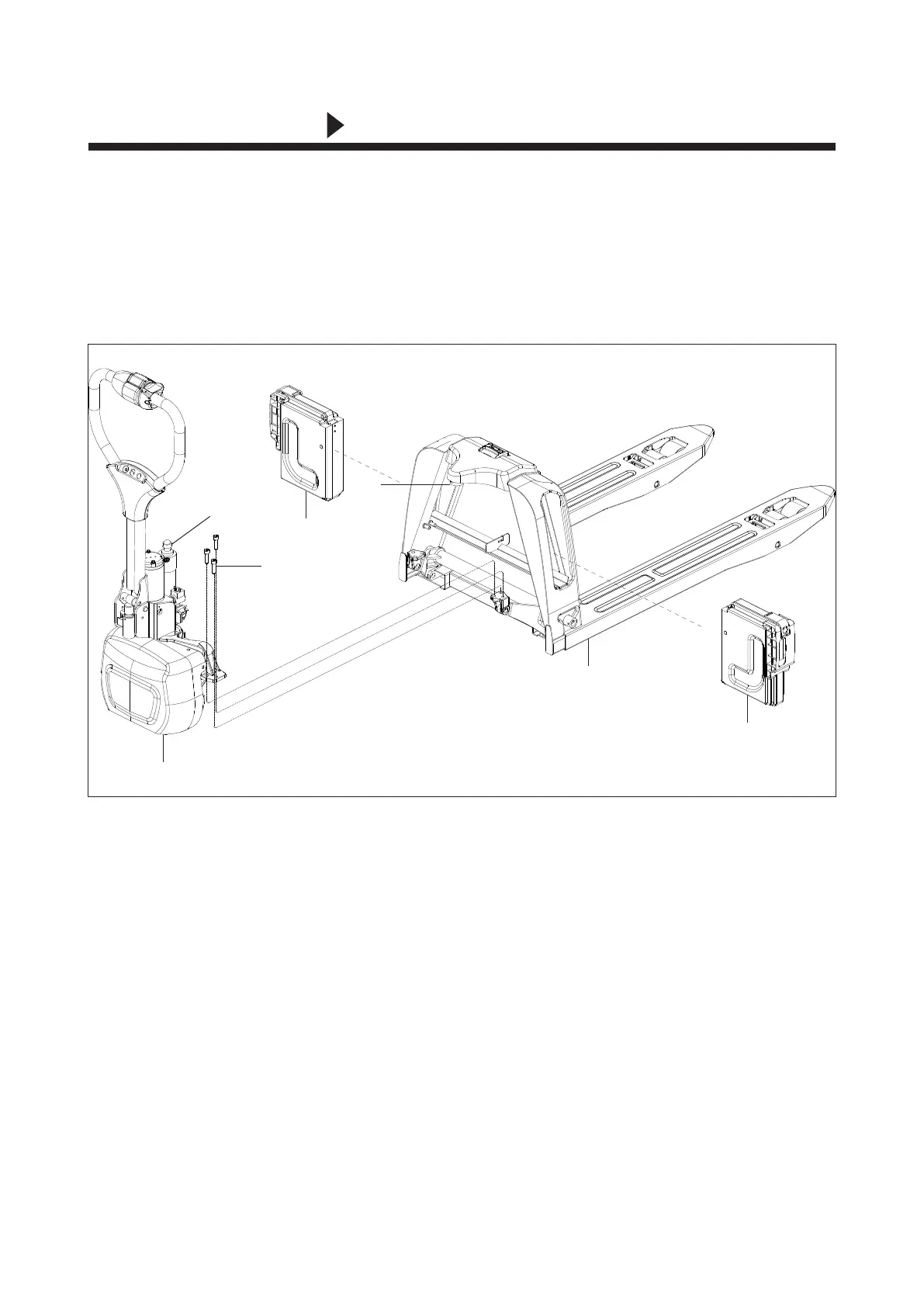

Fig1154-00004OM
