CAUTION: Due to diversification of lithium battery types, its control voltage shall be confirmed
with the engineer.

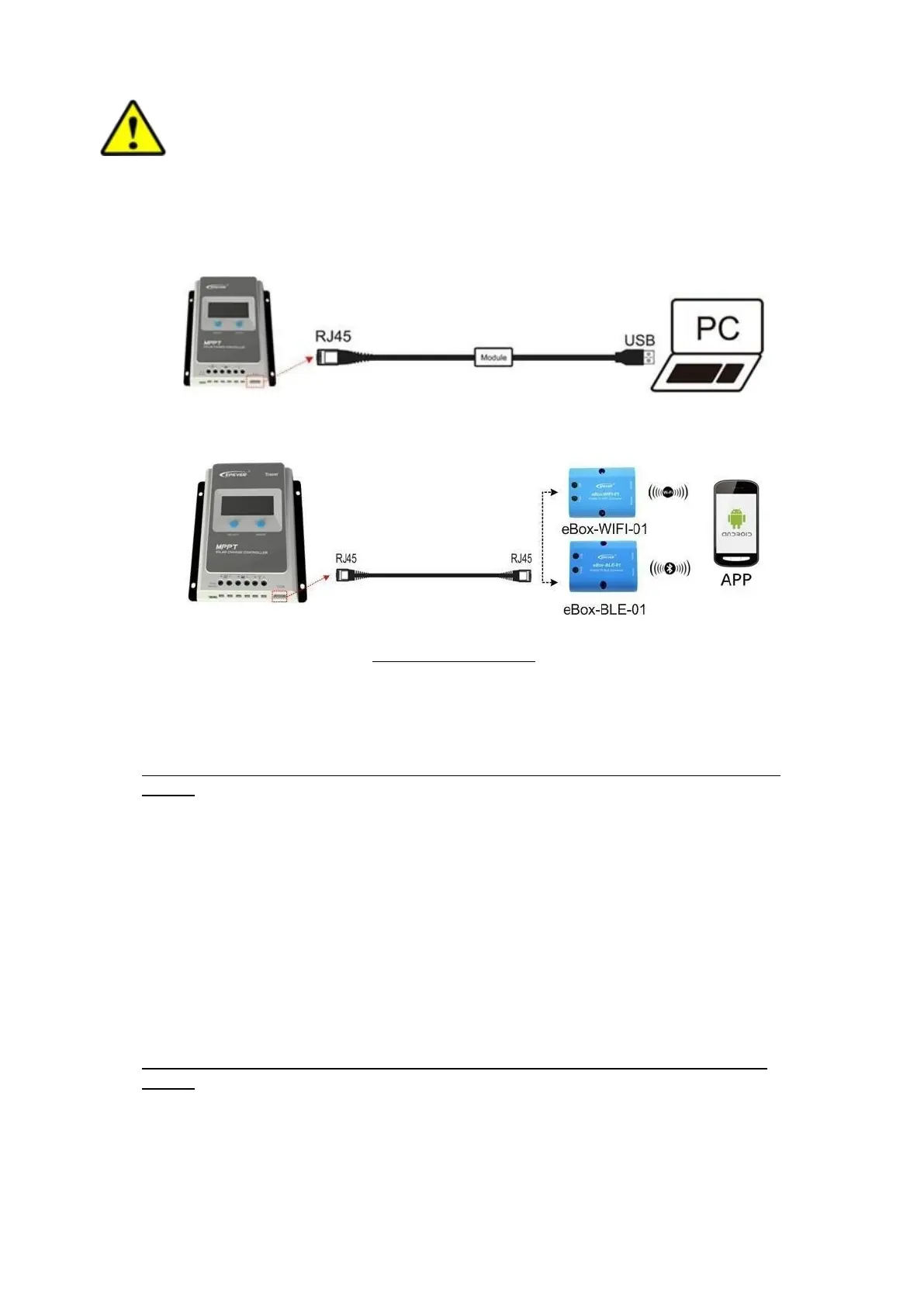

③ User settings
(1)
PC setting
Connection
(2)
APP software setting
Download the PC and APP software: http://www.epever.com—Support— Software(Select the software
according to the description )
(3)
Setting the control voltage value
The following rules must be observed when modifying the parameter values in User for lead-acid
battery.
Ⅰ. Over Voltage Disconnect Voltage > Charging Limit Voltage ≥ Equalize Charging Voltage ≥ Boost
Charging Voltage ≥ Float Charging Voltage > Boost Reconnect Charging Voltage.
Ⅱ. Over Voltage Disconnect Voltage > Over Voltage Reconnect Voltage
Ⅲ. Low Voltage Reconnect Voltage > Low Voltage Disconnect Voltage ≥ Discharging Limit Voltage.
Ⅳ. Under Voltage Warning Reconnect Voltage > Under Voltage Warning Voltage
≥ Discharging Limit Voltage.
Ⅴ. Boost Reconnect Charging voltage > Low Voltage Reconnect Voltage.
The following rules must be observed when modifying the parameter values in User for lithium
battery.
Ⅰ.Over Voltage Disconnect Voltage > Over charging protection voltage(Protection Circuit
Modules(PCM))+0.2V;
Ⅱ. Over VoltageDisconnect Voltage > Over Voltage Reconnect Voltage ＝
Charging Limit Voltage ≥ Equalize Charging Voltage＝Boost Charging Voltage ≥ Float Charging
