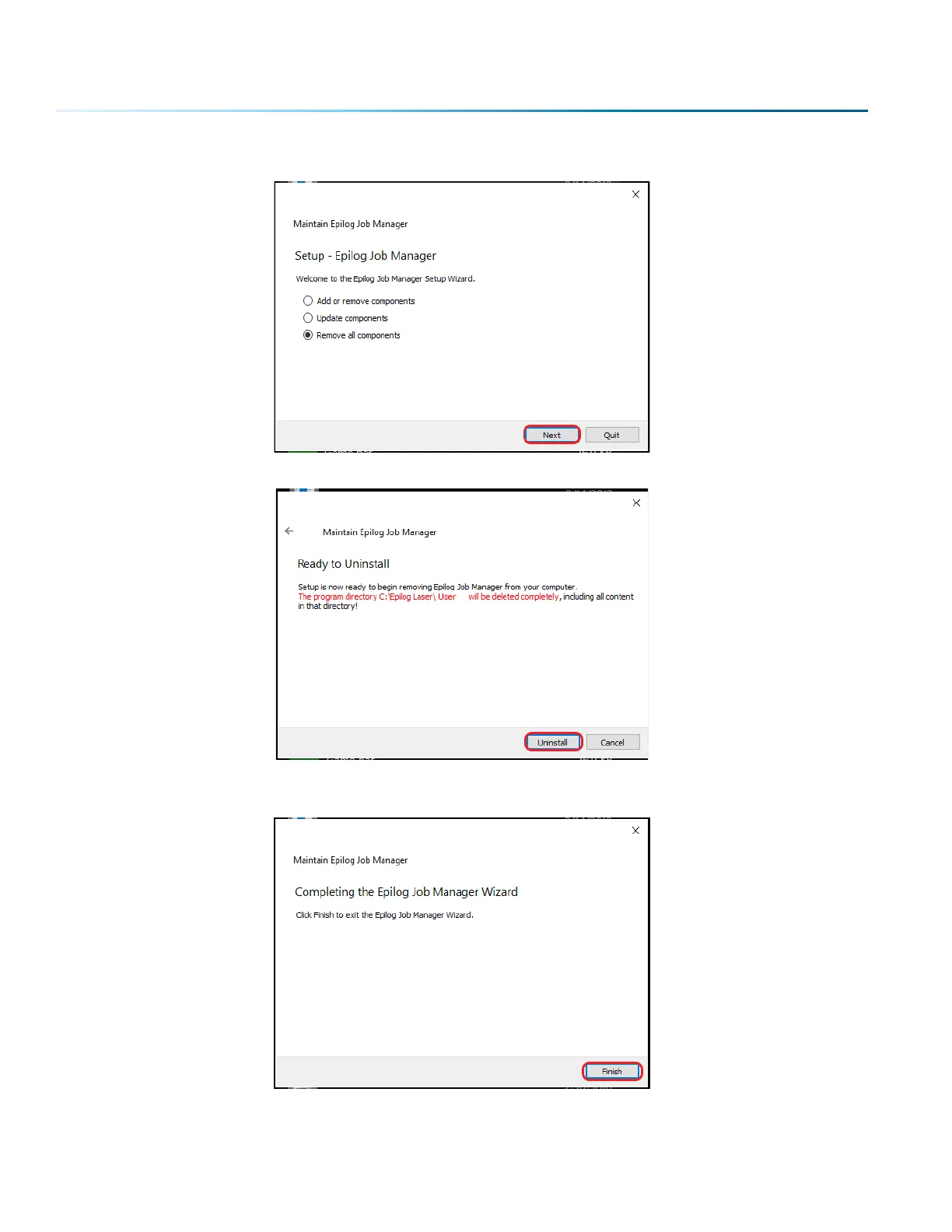

3. Select “Remove all components” and then click “Next”.

4. Click “Uninstall”.

5. Click Finish to complete the uninstallation of the previous Job Manager.

- 24 -
