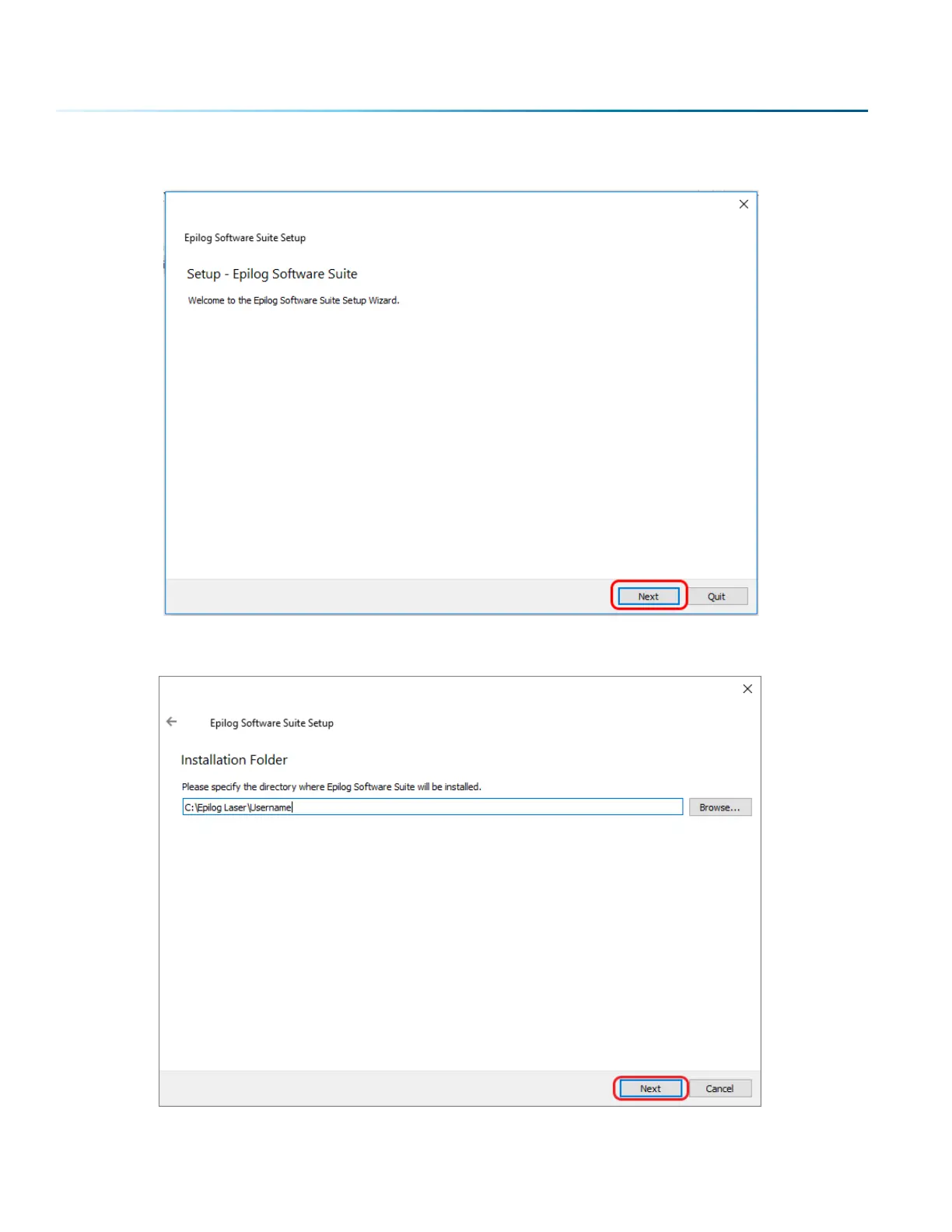

3. A welcome screen appears, click Next.

4. Select a directory location for the installation file and click Next.

- 26 -

SECTION 3: SOFTWARE INSTALLATION
