Epiroc BQ3-DTH - Page 25

11 11
16
15
14
13
11
12
8
9
6
10
5
6
7
2
1
3
4
Centring cylinder Grinding table Stop cylinder
Feeding cylinder
Ø 6Ø 6
Ø 6
Ø 6Ø 6Ø 6Ø 6
Ø 8
Ø 8
Ø 8 Ø 8
Ø 6Ø 6
25
Ref� No� Product No� Qty Description Specification
1 87003771 1 Push plate
2 87003762 4 Spacer
3 87003861 1 Bracket
4 87003931 1 Flat bar
5 87127883 1 Nipple 1/4"
6 87001507 1 Adapter pipe 1/8"
7 87003661 3 T-coupling 8-1/4"
8 87003817 1 Coupling 6-1/8"
9 87003814 3 Coupling 6-1/4"
10 87003816 7 Coupling 6-1/8"
11 87000849 1 Coupling 6-1/4"
12 87003820 4 Coupling 6-1/8" Banjo
13 87004668 2 Adapter 6-8
14 87004672 1 Adapter 8-1/8"
15 87003531 1 Regulator 1/4"
16 87001624 1 Regulator 1/8"
17 87003453 1 Bracket
18 87003454 1 Trunnion C40/41m-32
19 87004670 1 Din rail 35x7.5 L=150
20 87003886 1 Cylinder
21 87001063 1 Muffler G1/8"
22 87000503 10 Washer BRB 5.3
23 87000788 2 Washer BRB 6.4
24 87003889 1 Nut M12 x 1.25
25 87003665 1 Fork link G25-32
26 87003885 1 Bracket H-41-32
Ref� No� Product No� Qty Description Specification
27 87004671 1
Valve block, complete
28 87000863 1 Shut off valve 1/4"
29 87000504 4 Nut M6M M5
30 87004756 4 Screw 5x30
31 87000145 2 Screw 6x20
32 87003794 4 Screw 5x55
33 87004634 4 Screw 5x12
34 87003821 1 Control valve 1/8"
35 87003452 1 Cylinder
Serial>2214
36 87004480 1 Filter regulator G1/4"
37 87001623 2 Pressure gauge 1/8"
38 87004669 1 Hose Ø 6 l=10000
39 87004660 1 Hose Ø 8 l=2000
40 87003754 1 Cylinder
41 87004674 1 Swivel 8-3/8"
42 87003888 1 Trunnion rear
43 87000852 1 Screw bushing 3/8"
44 87004688 1 Coupling 3/8"
45 87003887 1 Shaft kit
46 87003958 1 Nipple 1/4-1/8"
47 87001222 3 Throttle check valve 1/8"
48 87004673 1 Ejector
49 87003529 1 Non return valve
50 87000869 1 Check valve
51 87004675 1 Blocking valve

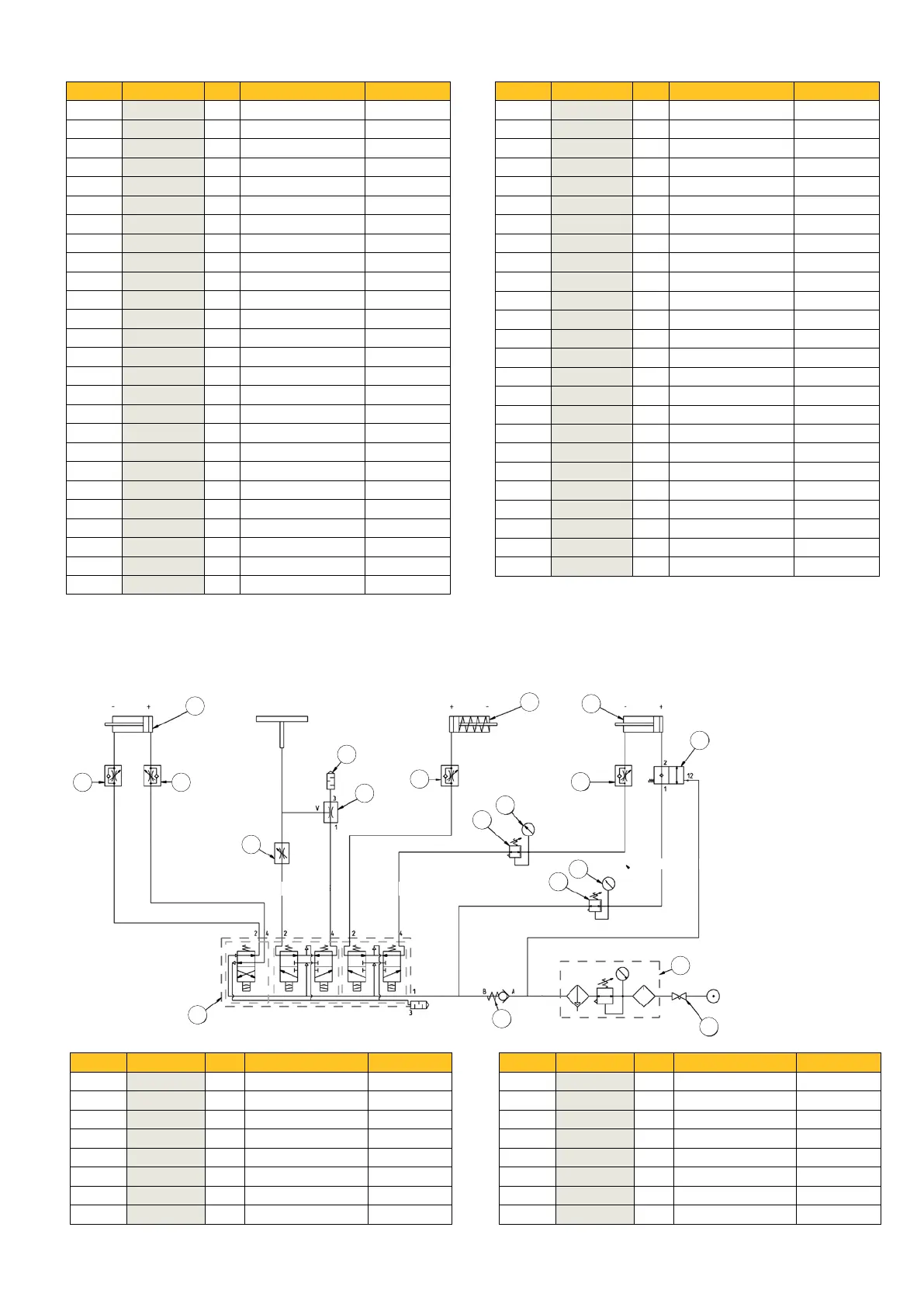

Pneumatic diagram
Ref� No� Product No� Qty Description Specification
1 87000863 1 Shut-off valve
2 87004480 1 Filter regulator
3 87003529 1 Non return valve
4 87004671 1 Valve block
5 87003531 1 Regulator
6 87001623 2 Gauge
7 87004675 1 Blocking valve
8 87003886 1 Cylinder
Ref� No� Product No� Qty Description Specification
9 87003821 1 Control valve
10 87001624 1 Regulator
11 87001222 3 Throttle check valve
12 87003754 1 Cylinder
13 87004673 1 Ejector
14 87001063 1 Muffler
15 87000869 1 Check valve
16 87003452 1 Cylinder
