Epson EB-1776W User Manual

All of the features in this guide are explained using illustrations of
EB-1776W unless otherwise mentioned.

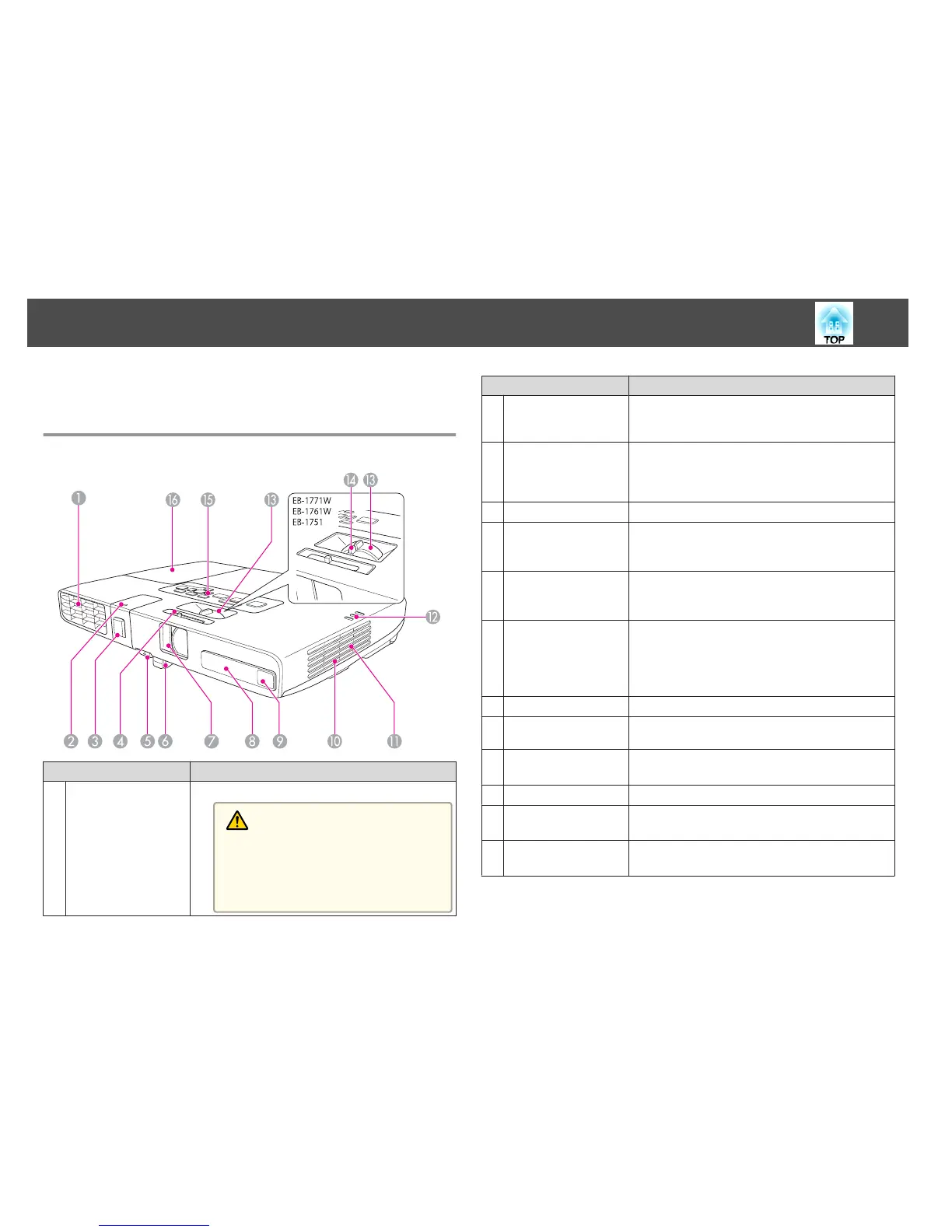

Front/Top
Name Function
A
Air exhaust vent
Exhaust vent for air used to cool the projector internally.
Caution
While projecting, do not put your face or hands
near the air exhaust vent, and do not place objects
that may become warped or damaged by heat near
the vent. Hot air from the air exhaust vent could
cause burns, warping, or accidents to occur.
Name Function
B
Wireless LAN indicator
(EB-1776W/EB-1771W/
EB-1761W only)
Indicates the access status of the supplied or optional
Wireless LAN unit.
C
Wireless LAN unit
cover
(EB-1776W/EB-1771W/
EB-1761W only)
When making a wireless connection between the
projector and computer, remove this cover to install the
supplied or optional Wireless LAN unit.
D
A/V mute slide knob
Slide the knob to open and close the A/V mute slide.
E
Foot adjust lever
Press the foot adjust lever to extend and retract the front
adjustable foot.
s "Adjusting the Image Position" p.41
F
Front adjustable foot
When setup on a surface such as a desk, extend the foot to
adjust the position of the image.
s "Adjusting the Image Position" p.41
G
A/V mute slide
Close when not using the projector to protect the lens. By
closing during projection you can hide the image and the
sound.
s "Hiding the Image and Sound Temporarily (A/V
Mute)" p.60
H
Remote receiver
Receives signals from the remote control.
I
Sensor
(EB-1776W only)
Takes measurements when the projector automatically
corrects the projected image.
J
Air intake vent
(air filter)
Takes in air to cool the projector internally.
s "Cleaning the Air Filter" p.112
K
Speaker
Outputs audio.
L
Indicators
Indicates the projector's status.
s "Reading the Indicators" p.98
M
Zoom ring
Adjusts the image size.
s "Adjusting the Image Size" p.41
Part Names and Functions
11

Epson EB-1776W Specifications

General

Native aspect ratio	16:10
Projection distance	1.35 - 1.62 m
Projection technology	3LCD
Contrast ratio (typical)	2000:1
Screen size compatibility	30 - 300 \
Projection distance (tele)	0.8 - 8.2 m
Projection distance (wide)	0.7 - 6.8 m
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	+-30 °
Keystone correction, horizontal	+-20 °
Focus	-
Throw ratio	1.04 - 1.26:1
Zoom capability	Yes
Focal length range	13.52 - 16.22 mm
Lamp type	UHE
Lamp power	230 W
Light source type	Lamp
Service life of light source	4000 h
Full HD	No
Video color modes	Cinema, Dynamic
USB connector type	USB Type-A, USB Type-B
USB 2.0 ports quantity	2
Noise level	40 dB
Country of origin	China
Noise level (economic mode)	30 dB
On Screen Display (OSD) languages	ARA, BUL, CRO, CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, GRE, HEB, HUN, ITA, NOR, POL, POR, RUM, RUS, SLK, SLV, SWE, TUR, UKR
RMS rated power	1 W
Product type	Standard throw projector
Product color	White
Market positioning	Portable
Cable lock slot type	Kensington
Display diagonal	0.59 \
Power source	AC
Power consumption (standby)	0.4 W
Power consumption (typical)	304 W
Power consumption (PowerSave)	203 W
Cables included	AC, USB
Bundled software	EasyMP Monitor, EasyMP Network Projection, EasyMP Slide Converter
Pallet width	800 mm
Pallet height	2207 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	102 pc(s)
Quantity per pallet (UK)	136 pc(s)
Quantity per pallet layer	6 pc(s)
Quantity per pallet layer (UK)	8 pc(s)

Weight and Dimensions

Depth	210 mm
Width	292 mm
Height	44 mm
Weight	1710 g
Package depth	435 mm
Package width	284 mm
Package height	121 mm
Package weight	3660 g
