Epson EB-1776W User Manual

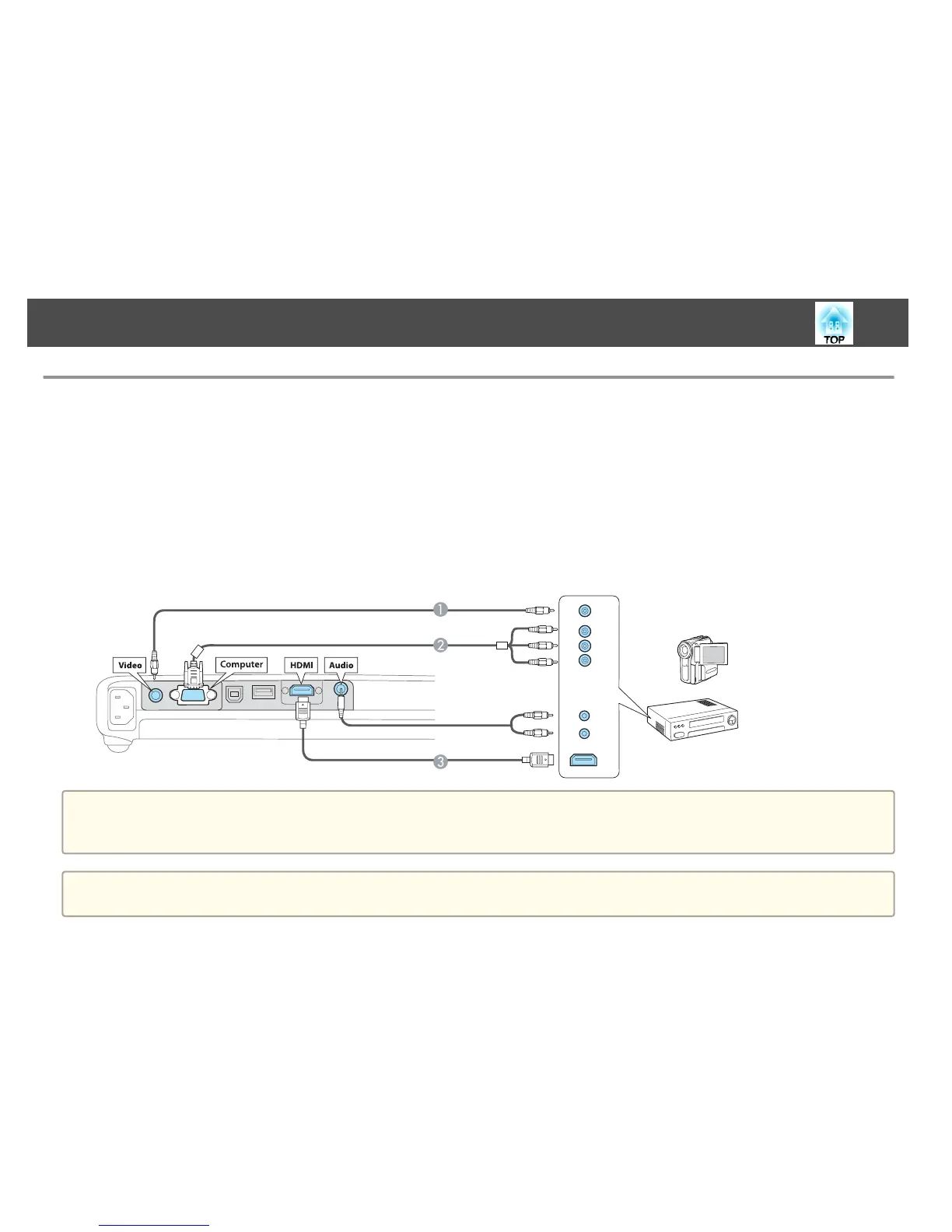

Connecting Image Sources
To project images from DVD players or VHS video and so on, connect to the projector using one of the following methods.
A
When using a commercially available video cable
Connect the video output port on the image source to the projector's Video port. You can output audio from the projector's speaker by connecting the audio output port on the video
equipment to the projector's Audio port using a commercially available audio cable.
B
When using the optional component video cable
s "Optional Accessories" p.121
Connect the component output port on the image source to the projector's Computer input port. You can output audio from the projector's speaker by connecting the audio output
port on the video equipment to the projector's Audio port using a commercially available audio cable.
C
When using a commercially available HDMI cable
Connect the HDMI port on the image source to the projector's HDMI port. You can send the image source's audio with the projected image.
Y
Cb/Pb
L-Audio-R
Cr/Pr
VIDEO
Attention
• If the input source is on when you connect it to the projector, it could cause a malfunction.
• If the orientation or shape of the plug differs, do not try to force it in. The device could be damaged or could malfunction.
a
• If the source you want to connect to has an unusually shaped port, use the cable supplied with the device or an optional cable to connect to the projector.
• When using a commercially available 2RCA(L/R)/stereo mini-pin audio cable, make sure it is labeled "No resistance".
Connecting Equipment
25

Epson EB-1776W Specifications

General

Native aspect ratio	16:10
Projection distance	1.35 - 1.62 m
Projection technology	3LCD
Contrast ratio (typical)	2000:1
Screen size compatibility	30 - 300 \
Projection distance (tele)	0.8 - 8.2 m
Projection distance (wide)	0.7 - 6.8 m
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	+-30 °
Keystone correction, horizontal	+-20 °
Focus	-
Throw ratio	1.04 - 1.26:1
Zoom capability	Yes
Focal length range	13.52 - 16.22 mm
Lamp type	UHE
Lamp power	230 W
Light source type	Lamp
Service life of light source	4000 h
Full HD	No
Video color modes	Cinema, Dynamic
USB connector type	USB Type-A, USB Type-B
USB 2.0 ports quantity	2
Noise level	40 dB
Country of origin	China
Noise level (economic mode)	30 dB
On Screen Display (OSD) languages	ARA, BUL, CRO, CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, GRE, HEB, HUN, ITA, NOR, POL, POR, RUM, RUS, SLK, SLV, SWE, TUR, UKR
RMS rated power	1 W
Product type	Standard throw projector
Product color	White
Market positioning	Portable
Cable lock slot type	Kensington
Display diagonal	0.59 \
Power source	AC
Power consumption (standby)	0.4 W
Power consumption (typical)	304 W
Power consumption (PowerSave)	203 W
Cables included	AC, USB
Bundled software	EasyMP Monitor, EasyMP Network Projection, EasyMP Slide Converter
Pallet width	800 mm
Pallet height	2207 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	102 pc(s)
Quantity per pallet (UK)	136 pc(s)
Quantity per pallet layer	6 pc(s)
Quantity per pallet layer (UK)	8 pc(s)

Weight and Dimensions

Depth	210 mm
Width	292 mm
Height	44 mm
Weight	1710 g
Package depth	435 mm
Package width	284 mm
Package height	121 mm
Package weight	3660 g
