Name Function
N
Focus ring
(EB-1771W/EB-1761W/
EB-1751 only)
Adjusts the image focus.
s "Correcting the Focus" p.42
O
Control panel
Operates the projector.
s "Control Panel" p.14
P
Lamp cover
Open when replacing the projector's lamp.
s "Replacing the Lamp" p.114

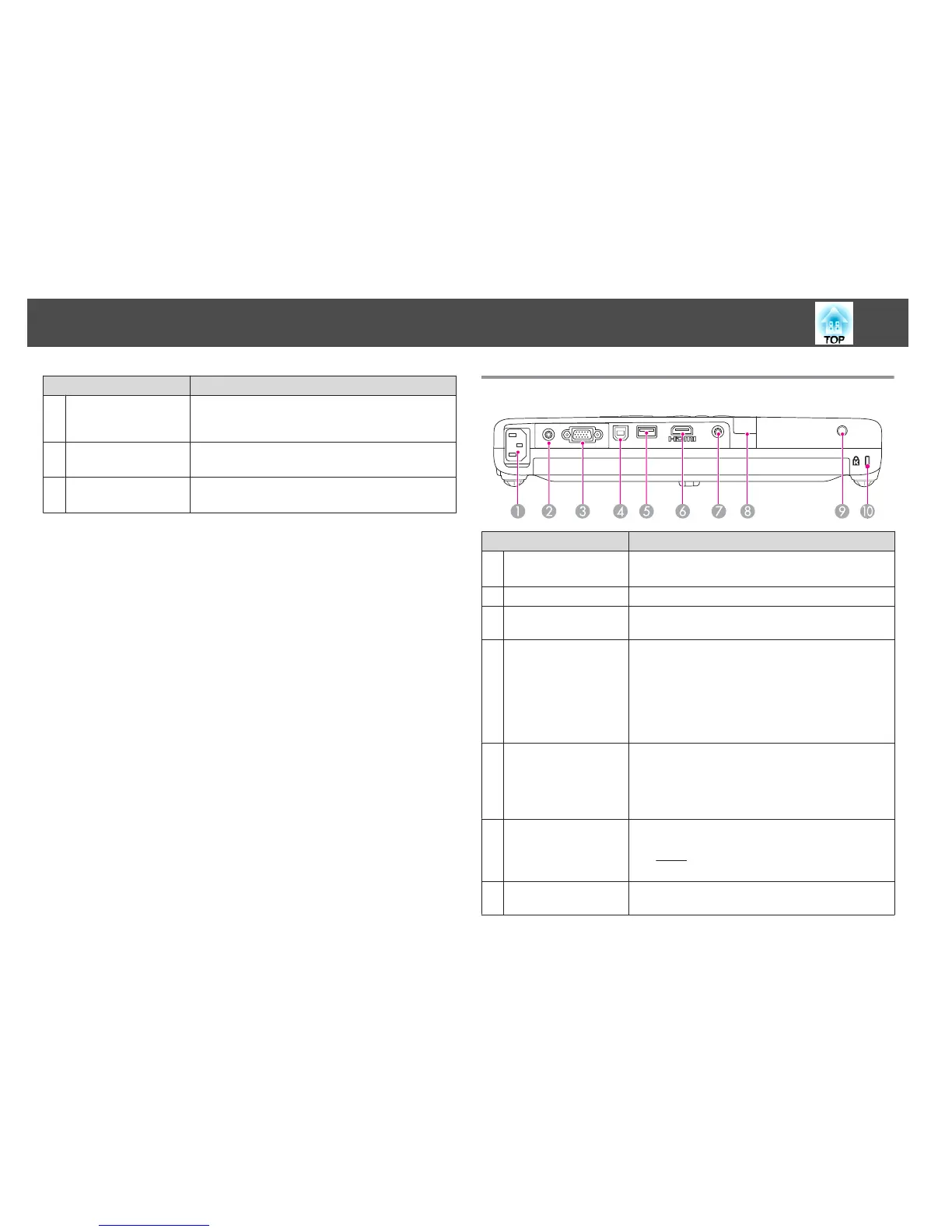

Rear
Name Function
A
Power inlet
Connects the power cord to the projector.
s "From Installation to Projection" p.29
B
Video port
Inputs composite video signals from video sources.
C
Computer port
Inputs image signals from a computer and component
video signals from other video sources.
D
USB (TypeB) port
• Connects the projector to a computer via the supplied
USB cable, and the image on the computer is projected.
s "Projecting with USB Display" p.31
• Connects the projector to a computer via the supplied
USB cable to use the Wireless Mouse function.
s "Using the Remote Control to Operate the
Mouse Pointer (Wireless Mouse)" p.64
E
USB (TypeA) port
• Connects a USB memory device or a digital camera and
projects PDFs, movies, or images using Slideshow.
s "Projecting Without a Computer (Slideshow)"
p.52
• Connects the optional Document Camera.
F
HDMI port
Inputs video signals from HDMI compatible video
equipment and computers. This projector is compatible
with
HDCP
g
.
s "Connecting Equipment" p.24
G
Audio port
Inputs audio from equipment connected to the Computer
port or the Video port.
