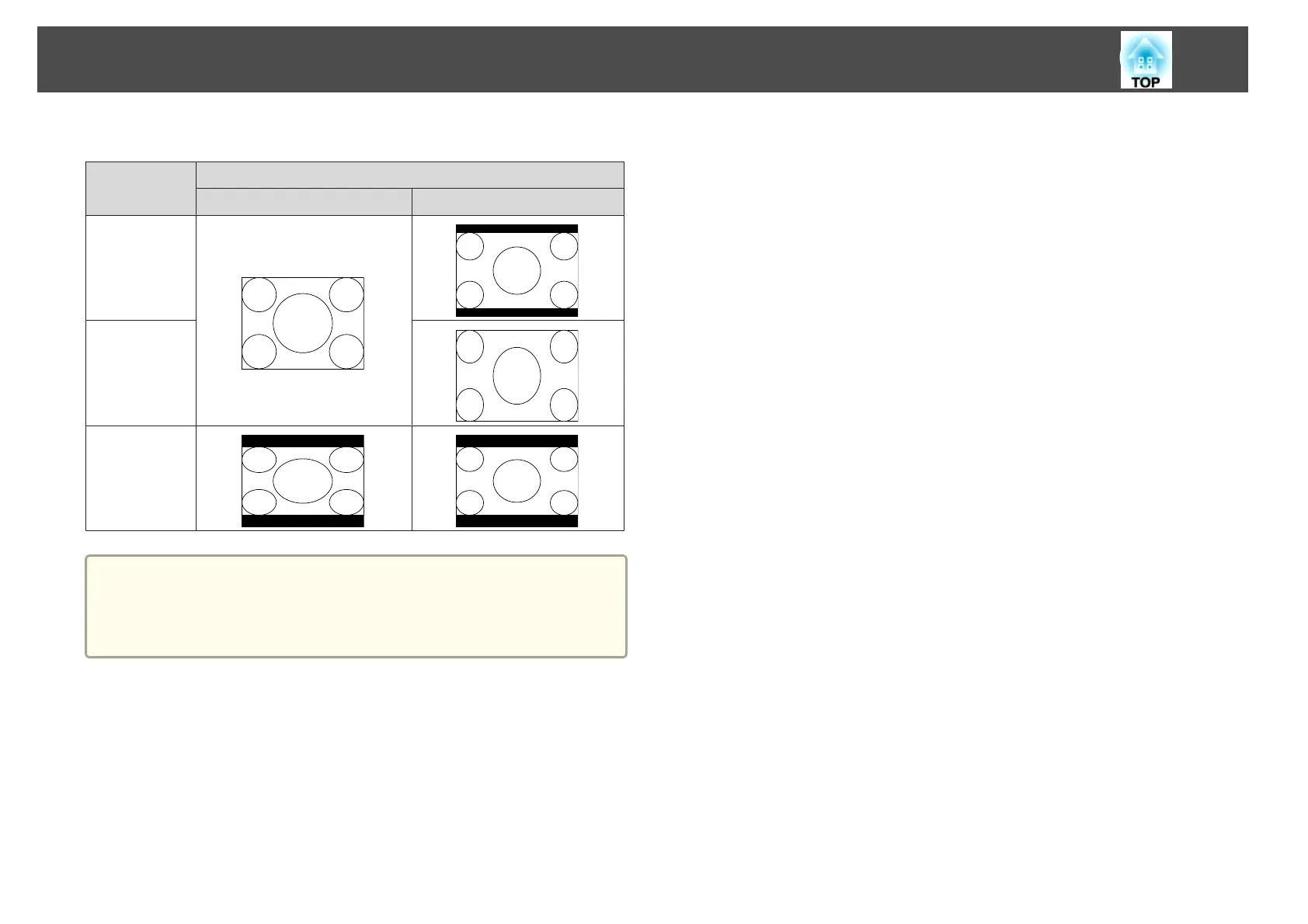

For
EB-1965/EB-1964/EB-1955/EB-
1954/EB-1935
Aspect Mode
Input S
igna
l
XGA 1024X768(
4:3)
WXGA 1280X80
0(16:10)
Normal
4:3
16:9
a
If
parts
of
the
are
missing,
set
the
Resolution
setting
to
Wide
or
Normal
from
the
Configuration
menu,
according
to
the
size
of
the
computer
panel.
s
Signal
-
Resolution
p.92
Adjusting Projected Images
52
51
53
Table of Contents
Notations Used in this Guide
2
Table of Contents
3
Introduction
7
Projector Features
8
Quick and Easy Set Up, Projection, and Storage
8
Connecting with a USB Cable and Projecting (USB Display)
8
Detecting Projector Movements and Automatically Correcting Image Distortion
8
Focus Help
8
Automatically Adjust to Fit into the Screen Frame (Screen Fit)
8
Useful Functions for Projecting Images
9
Project Two Images Simultaneously (Split Screen)
9
Increasing Projection Content in Wide (WXGA) Screen (EB-1945W Only)
9
Making the most of the Remote Control
9
Enlarge and Project Your Files with the Document Camera
9
Connect a USB Storage Device and Project Pdfs, Movies, and Images (PC Free)
9
Enhanced Security Functions
9
Optimum Color Mode for Projecting Medical Images
10
Precise Color Adjustments
10
Register a Schedule
10
Taking Full Advantage of a Network Connection
10
Simultaneously Project Four Images for Dynamic Conferences
10
Connecting to a Network and Projecting Images from the Computer's Screen
10
Projecting Images from Portable Devices over a Network
10
Project Using "Connect to a Network Projector
11
Easy Connection to a Computer with Quick Wireless Connection
11
Part Names and Functions
12
Front/Top
12
Rear
13
Base
15
Control Panel
16
Remote Control
17
Replacing the Remote Control Batteries
19
Remote Control Operating Range
20
Preparing the Projector
21
Installing the Projector
22
Installation Methods
22
Screen Size and Approximate Projection Distance
23
Connecting Equipment
25
Connecting a Computer
25
Connecting Image Sources
26
Connecting USB Devices
28
Connecting External Equipment
29
Connecting a LAN Cable
30
Installing the Wireless LAN Unit
31
Basic Usage
32
Projecting Images
33
From Installation to Projection
33
Automatically Detect Input Signals and Change the Projected Image (Source Search)
34
Switching to the Target Image by Remote Control
35
Projecting with USB Display
35
System Requirements
35
Connecting for the First Time
36
Uninstalling
37
Adjusting Projected Images
39
Correcting Keystone Distortion
39
Correcting Automatically
39
Correcting Manually
39
Automatically Adjust to Fit into the Screen Frame - Screen Fit
42
Adjusting the Image Size
44
Contents
45
Adjusting the Image Position
45
Adjusting the Horizontal Tilt
45
Correcting the Focus
45
Adjusting the Volume
46
Adjusting the Image
46
Hue, Saturation, and Brightness Adjustment
46
Gamma Adjustment
47
Selecting the Projection Quality (Selecting Color Mode)
48
Setting Auto Iris
49
Changing the Aspect Ratio of the Projected Image
49
Changing Methods
50
Changing the Aspect Mode
50
Useful Functions
53
Projection Functions
54
Projecting Two Images Simultaneously (Split Screen)
54
Input Sources for Split Screen Projection
54
Operating Procedures
55
Restrictions During Split Screen Projection
57
Hiding the Image and Sound Temporarily (A/V Mute)
58
Freezing the Image (Freeze)
58
Pointer Function (Pointer)
59
Enlarging Part of the Image (E-Zoom)
60
Using the Remote Control to Operate the Mouse Pointer (Wireless Mouse)
61
Correcting the Color Difference When Projecting from Multiple Projectors
62
Summary of Correction Procedure
62
Setting an ID and Using the Remote Control
62
Correcting
64
Saving a User's Logo
65
Security Functions
67
Managing Users (Password Protect)
67
Kinds of Password Protect
67
Setting Password Protect
67
Entering the Password
68
Restricting Operation (Control Panel Lock)
69
Anti-Theft Lock
70
Installing the Wire Lock
70
Network Functions
71
Projecting with "Connect to a Network Projector
71
Making a WPS (Wi-Fi Protected Setup) Connection with a Wireless LAN Access Point
72
Connection Setup Method
72
Monitoring and Controlling
74
About Easymp Monitor
74
Changing Settings Using a Web Browser (Web Control)
74
Projector Setup
74
Displaying the Web Control Screen
75
Displaying the Web Remote Screen
75
Setting Certificates
77
Secure HTTP Notes
77
List of Supported Certificates
78
Using the Mail Notification Function to Report Problems
78
Reading Error Notification Mail
79
Management Using SNMP
79
ESC/VP21 Commands
79
Command List
79
Cable Layouts
80
About Pjlink
81
About Crestron Roomview
81
Operating a Projector from Your Computer
82
Setting Schedule
85
Setting Methods
85
Clock
86
Schedule
86
Configuration Menu
87
Using the Configuration Menu
88
List of Functions
89
Configuration Menu Table
89
Network Menu
90
Contents
91
Image Menu
91
Signal Menu
92
Settings Menu
94
Extended Menu
95
Network Menu
97
Notes on Operating the Network Menu
98
Soft Keyboard Operations
98
Basic Menu
99
Wireless LAN Menu
99
Security Menu
101
Wired LAN Menu
104
Administrator Settings Menu
105
Reset Menu
108
Info Menu (Display Only)
108
Reset Menu
109
Troubleshooting
110
Using the Help
111
Problem Solving
113
Reading the Indicators
113
When the Indicators Provide no Help
116
Problems Relating to Images
117
No Images Appear
117
Moving Images Are Not Displayed
118
Projection Stops Automatically
118
The Message Not Supported Is Displayed
118
The Message no Signal Is Displayed
118
Images Are Fuzzy, out of Focus, or Distorted
119
Interference or Distortion Appear in Images
120
The Mouse Cursor Flickers (Only When Projecting USB Display)
120
The Image Is Truncated (Large) or Small, the Aspect Is Not Suitable, or the Image Has Been Reversed
121
Image Colors Are Not Right
121
Images Appear Dark
122
Problems When Projection Starts
122
The Projector Does Not Turn on
122
Other Problems
123
No Sound Can be Heard or the Sound Is Faint
123
The Remote Control Does Not Work
124
I Want to Change the Language for Messages and Menus
124
The Authentication Setting of Wireless LAN Fails
125
Email Is Not Received Even if a Problem Occurs in the Projector
125
"The Battery that Saves Your Clock Settings Is Running Low." Is Displayed
125
Image File Names Are Not Displayed Correctly in Slideshow
126
Cannot Change Settings Using a Web Browser
126
About Event ID
127
Maintenance
129
Cleaning
130
Cleaning the Projector's Surface
130
Cleaning the Lens
130
Cleaning the Air Filter
130
Replacing Consumables
132
Replacing the Lamp
132
Lamp Replacement Period
132
How to Replace the Lamp
133
Resetting the Lamp Hours
136
Replacing the Air Filter
136
Air Filter Replacement Period
136
How to Replace the Air Filter
136
Appendix
138
Optional Accessories and Consumables
139
Optional Accessories
139
Consumables
140
Contents
141
Screen Size and Projection Distance
141
Projection Distance (for EB-1965/EB-1964/EB-1955/EB-1954/EB-1935)
141
Projection Distance (for EB-1945W)
142
Supported Monitor Displays
144
Supported Resolutions
144
Computer Signals (Analog RGB)
144
Component Video
144
Composite Video
144
Input Signal from the HDMI Port and Displayport
144
Specifications
146
Projector General Specifications
146
Appearance
150
Glossary
151
General Notes
153
About Notations
153
Trademarks and Copyrights
153
Index
155
Other manuals for Epson EB-1945W
Quick Start Guide
8 pages
Datasheet
2 pages
Specifications
2 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Epson EB-1945W and is the answer not in the manual?
Ask a question
Epson EB-1945W Specifications
General
Brand
Epson
Model
EB-1945W
Category
Projector
Language
English
Related product manuals
Epson EB-1940W
146 pages
Epson EB-1960
146 pages
Epson EB-1930
146 pages
Epson EB-1965
157 pages
Epson EB-1985WU
200 pages
Epson EB-1980WU
200 pages
Epson EB-118
210 pages
Epson EB-1880
133 pages
Epson EB-1775W
149 pages
Epson EB-1795F
183 pages
Epson EB-1776W
146 pages
Epson EB-1460Ui
12 pages
