Installing the Wall Mount
24
Installation Procedure for the Wall Mount

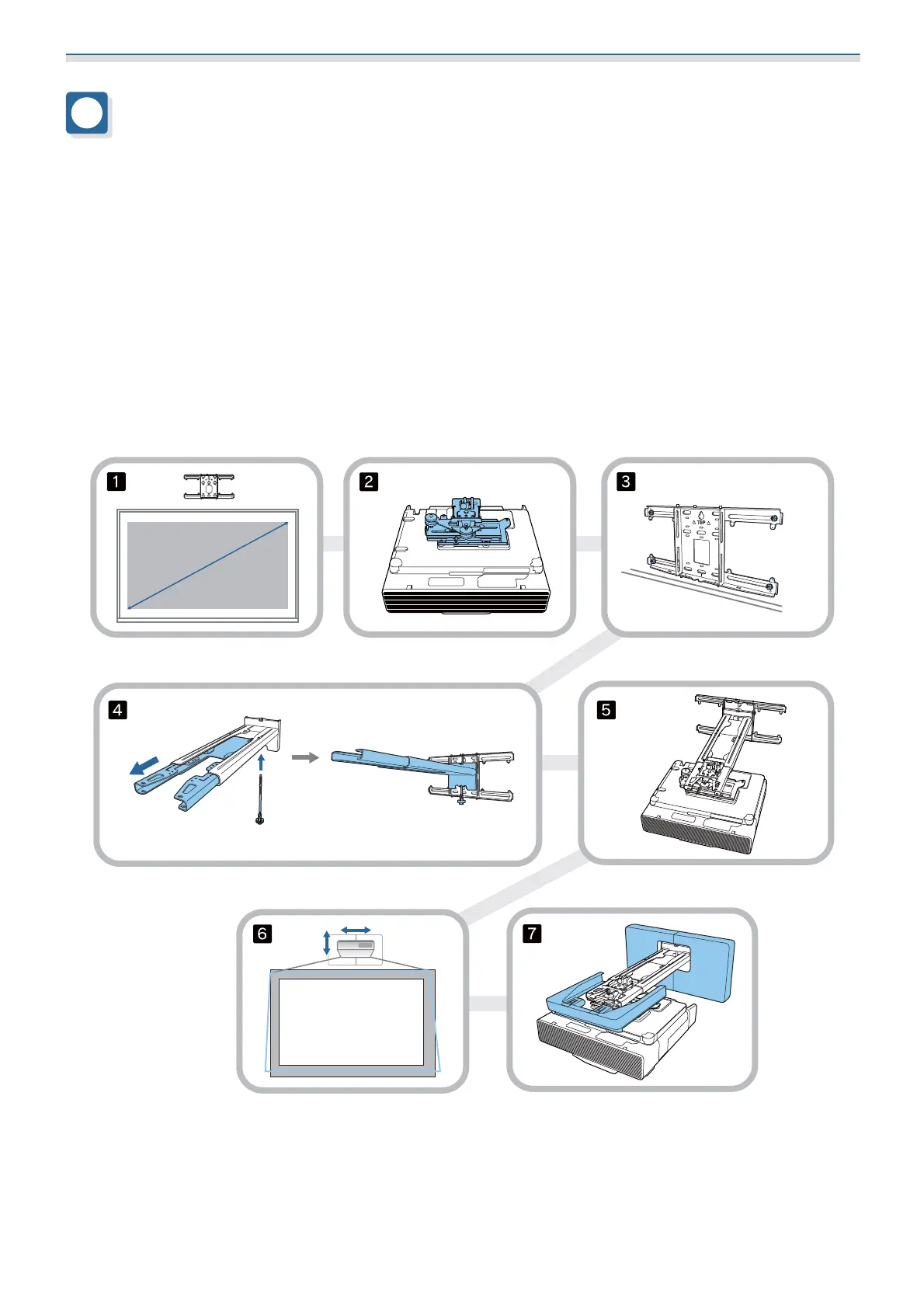

Follow the work flow below to install the wall mount.
Route the cables before installing the wall mount according to your installation environment.
a
Check the projection distance tables to determine the installation position (s p.25)
b
Attach the adjustment unit to the projector (s p.40)
c
Install the wall plate on the wall (s p.42)
d
Adjust the arm length of the setting plate, and then attach it to the wall plate (s p.44)
e
Attach the adjustment unit to the setting plate, and then connect the cables and peripheral devices
(
s p.48)
f
Adjust the position of the image (s p.52)
g
Attach the covers (s p.65)
