Epson EB-805F User Manual

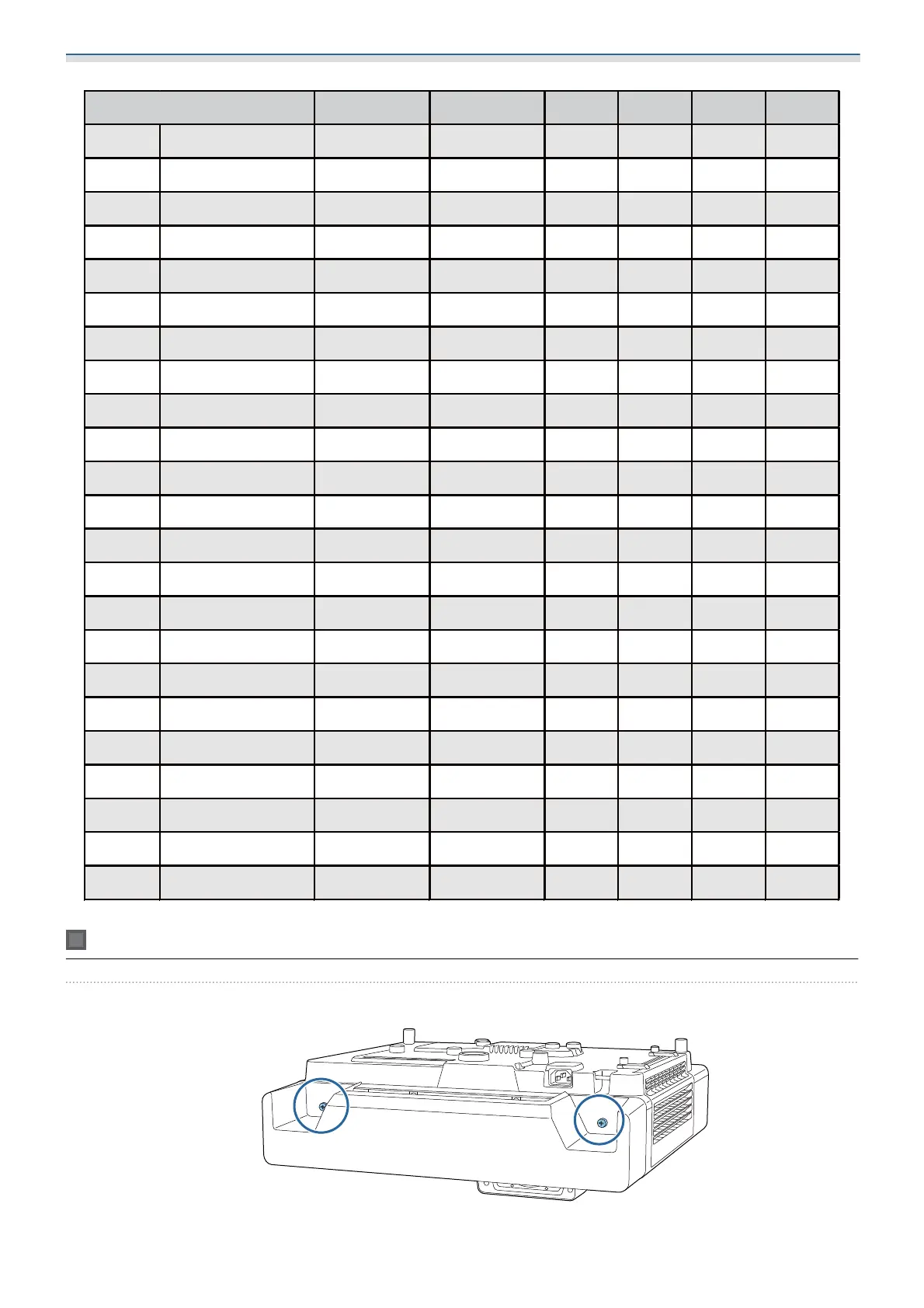

Installing the Wall Mount
40
a b c1 d1 c2 d2
101" 2358 × 1011 421 324 426 618 268 460
102" 2381 × 1021 428 331 429 621 269 461
103" 2405 × 1031 434 337 432 624 271 463
104" 2428 × 1041 441 344 436 628 273 465
105" 2451 × 1051 448 351 439 631 275 467
106" 2475 × 1061 454 357 442 634 276 468
107" 2498 × 1071 461 364 446 638 279 471
108" 2521 × 1081 468 371 449 641 280 472
109" 2545 × 1091 474 377 452 644 282 474
110" 2568 × 1101 481 384 455 647 283 475
111" 2591 × 1111 488 391 459 651 285 477
112" 2615 × 1121 494 397 462 654 287 479
113" 2638 × 1131 501 404 465 657 288 480
114" 2661 × 1141 508 411 468 660 290 482
115" 2685 × 1151 514 417 472 664 292 484
116" 2708 × 1161 521 424 475 667 294 486
117" 2732 × 1171 528 431 478 670 295 487
118" 2755 × 1181 534 437 482 674 297 489
119" 2778 × 1191 541 444 485 677 299 491
120" 2802 × 1201 548 451 488 680 300 492
121" 2825 × 1211 554 457 491 683 302 494
122" 2848 × 1221 561 464 495 687 304 496
123" 2872 × 1231 568 471 498 306 306 498
S
Attaching the adjustment unit to the projector
a
Loosen the screws (x2) and remove the cable cover from the projector
