Introduction
6

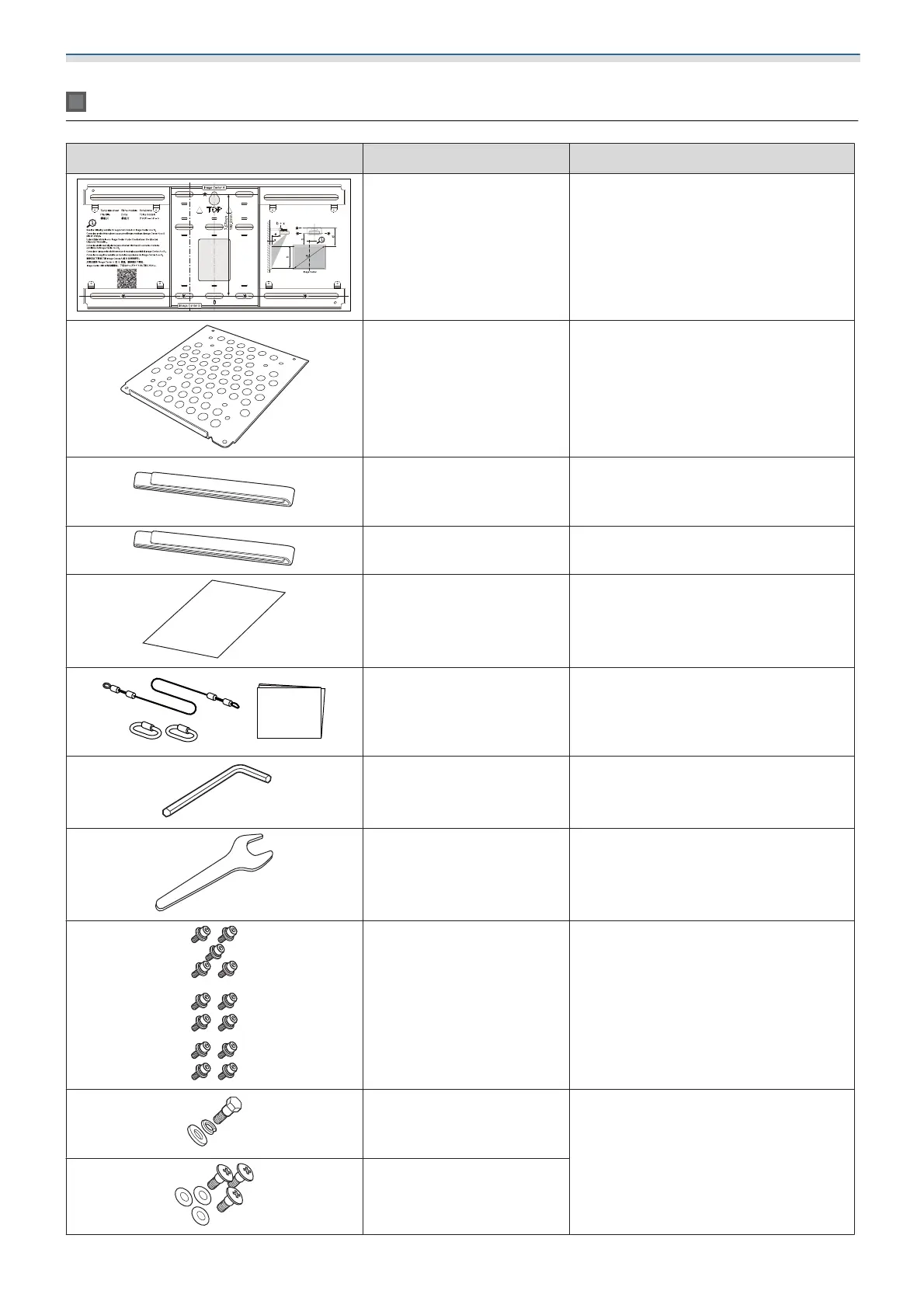

Accessories
Part Name Application
Template sheet Attach this to the wall before attaching
the wall plate, and use it to drill neces-
sary holes.
Mini PC plate Attach this to the wall plate when in-
stalling a mini PC or stick PC.
Mini PC belt Secure the PC to the plate when at-
taching a mini PC or a stick PC that can-
not be attached using screws.
Cable binding belt Secure excess cables after performing
wiring.
Masking sticker Stick this over the groove in the arm of
setting plate to cover it up after instal-
ling.
Safety wire set Connect to the wall mount and the
projector to prevent the projector from
falling. See the user's guide supplied
with the safety wire set for more details.
Hexagon wrench (for M4) -
Spanner (No. 13 for M6) -
M4 x 12 mm hexagon sock-
et head cap bolt with wash-
er/spring washer (x13)
•
Assemble the wall plate as shown in
the figure on p.5 (x5)
•
Secure the adjustment unit to the pro-
jector (x4)
•
Secure the adjustment unit to the set-
ting plate (x4)
M6 x 20 mm hexagon
shoulder head bolt with
washer/spring washer (x1)
Secure the setting plate to the wall
plate.
M6 x 20 mm cross recessed
head shoulder screws with
plastic washers (x3)
