Installing the Wall Mount
51
c

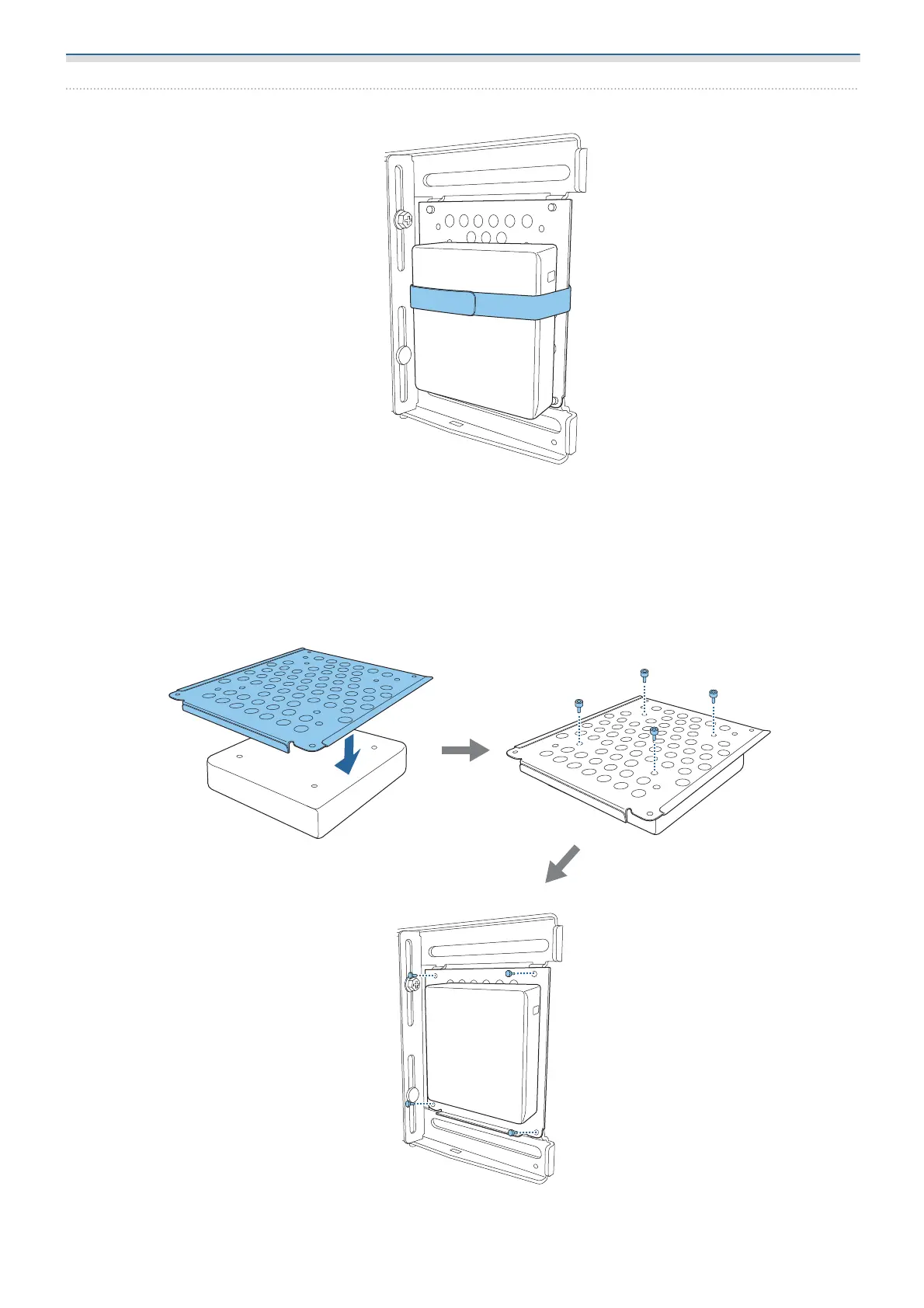

Place the PC on the lower edge of the mini PC plate, and secure it with the belt
When securing with screws
Depending on the shape of the mini PC and the orientation of the screw holes, the order in which parts are
installed differs. Be sure to check the installation instructions in advance.
Installation example
•
Secure the mini PC plate with the PC installed to the wall plate using the M3 x 6 mm screws (x4) supplied.
•
Secure the mini PC plate to the wall plate using the M3 x 6 mm screws (x4) supplied, and then install the PC.
