Installing the Wall Mount

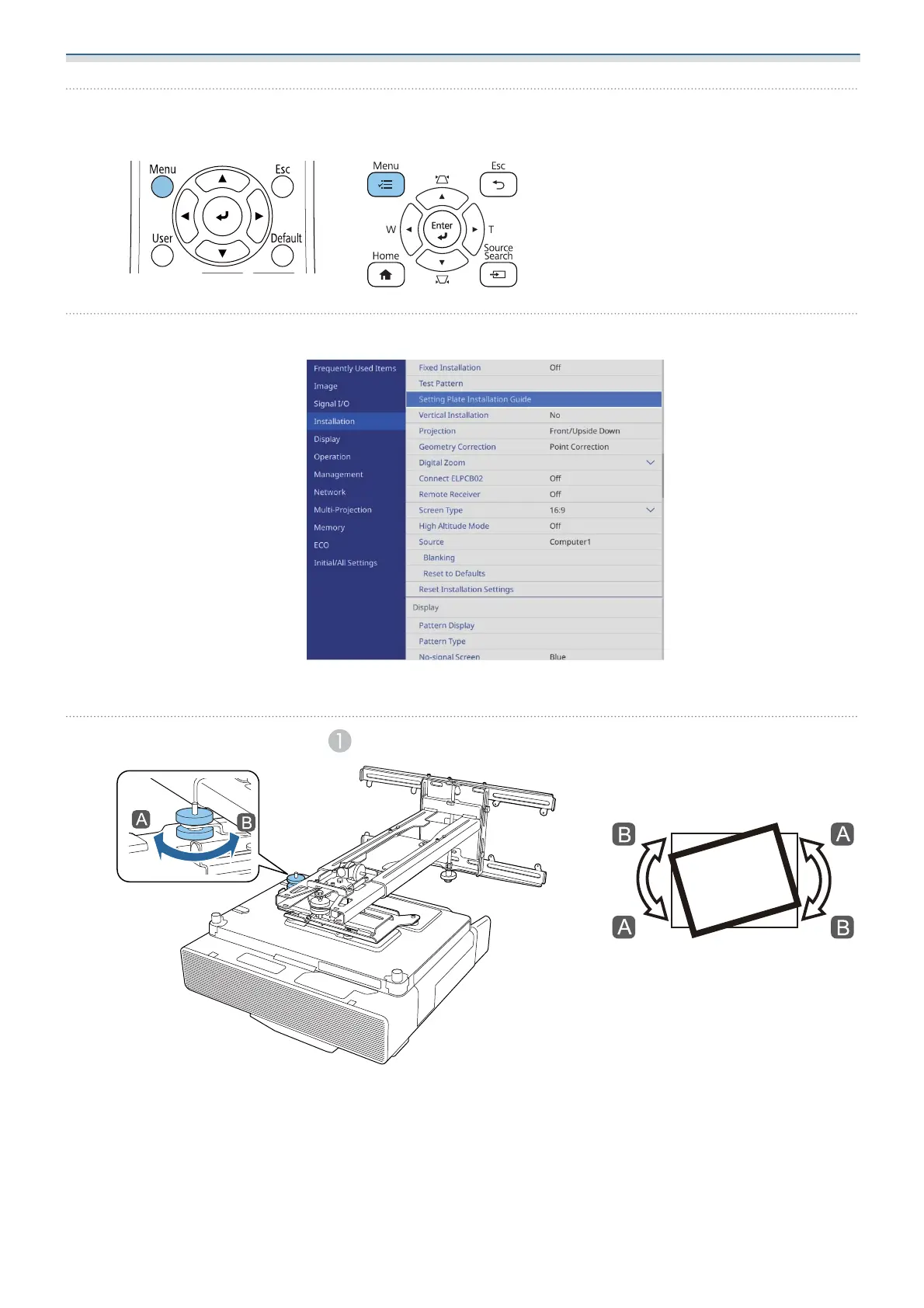

Press the [Menu] button

Using the Remote Control Using the Control Panel

Select Setting Plate Installation Guide from the Installation menu

You see the guidance screen.

Turn the adjustment dial in the installation guide to adjust the horizontal roll

About this Installation Guide2
Contents of this Guide2
Table of Contents3
Introduction5
Using the Product Safely5
Safety Indications5
Explanation of Symbols5
Package Contents6
Wall Mount (Optional)6
Main Mount6
Accessories7
Control Pad (Optional)8
Necessary Items8
Figures of Installation Dimensions10
Connection Figure11
Connecting the Control Pad11
Connecting Multiple Projectors12
Cautions on Installing the Wall Mount13
Cautions on the Installation Location of the Wall Mount17
Wall Mount Specifications19
External Dimensions20
Adjustment Range22
Vertical Slide22
Horizontal Slide23
Forward/Backward Slide23
Mini PC Installation Plate24
Installing Accessories24
Mount24
Attaching the Mount26
Determining the Installation Position (Projection Distance Tables)26
Attaching the Adjustment Unit to the Projector41
Install the Wall Plate on the Wall43
Attaching the Setting Plate to the Wall Plate45
Attaching the Adjustment Unit to the Setting Plate49
Attaching Peripheral Devices50
Adjusting the Position of the Projected Image53
Preparations before Adjusting54
Performing Mechanical Adjustment Using the Setting Plate Installation Guide55
Adjusting Using the Projector Menus59
Adjusting Using the Blanking Feature65
Attaching the Covers66
Attaching a Security Cable68
Installing the Control Pad69
Notes on the Control Pad69
For Canadian Users72
Control Pad Specifications73
External Dimensions73
Cable Routing Holes73
Installing the Control Pad75
Enabling the Control Pad77
Setting the Projector79
Batch Setup Function79
Setup Using a USB Flash Drive79
Saving Settings to the USB Flash Drive79
Copying Saved Settings to Other Projectors80
Setup by Connecting the Computer and Projector with a USB Cable81
Saving Settings to a Computer81
Copying Saved Settings to Other Projectors82
When Setup Fails84
Installing Multiple Projectors85
Projection)85
Setting the Projector ID85
Multi-Projection Connection Settings87
HDMI Link Settings88
