Epson EB-L1505U User Manual

Computer
Audio1
AUDIOOUT
AUDIOOUT
Y
Cb/Pb
Cr/Pr
Y
Cb/Pb
Cr/Pr
Audio2
HDMI
HDMIOUT
BNC(R/Cr/Pr,G/Y,B/Cb/Pb)

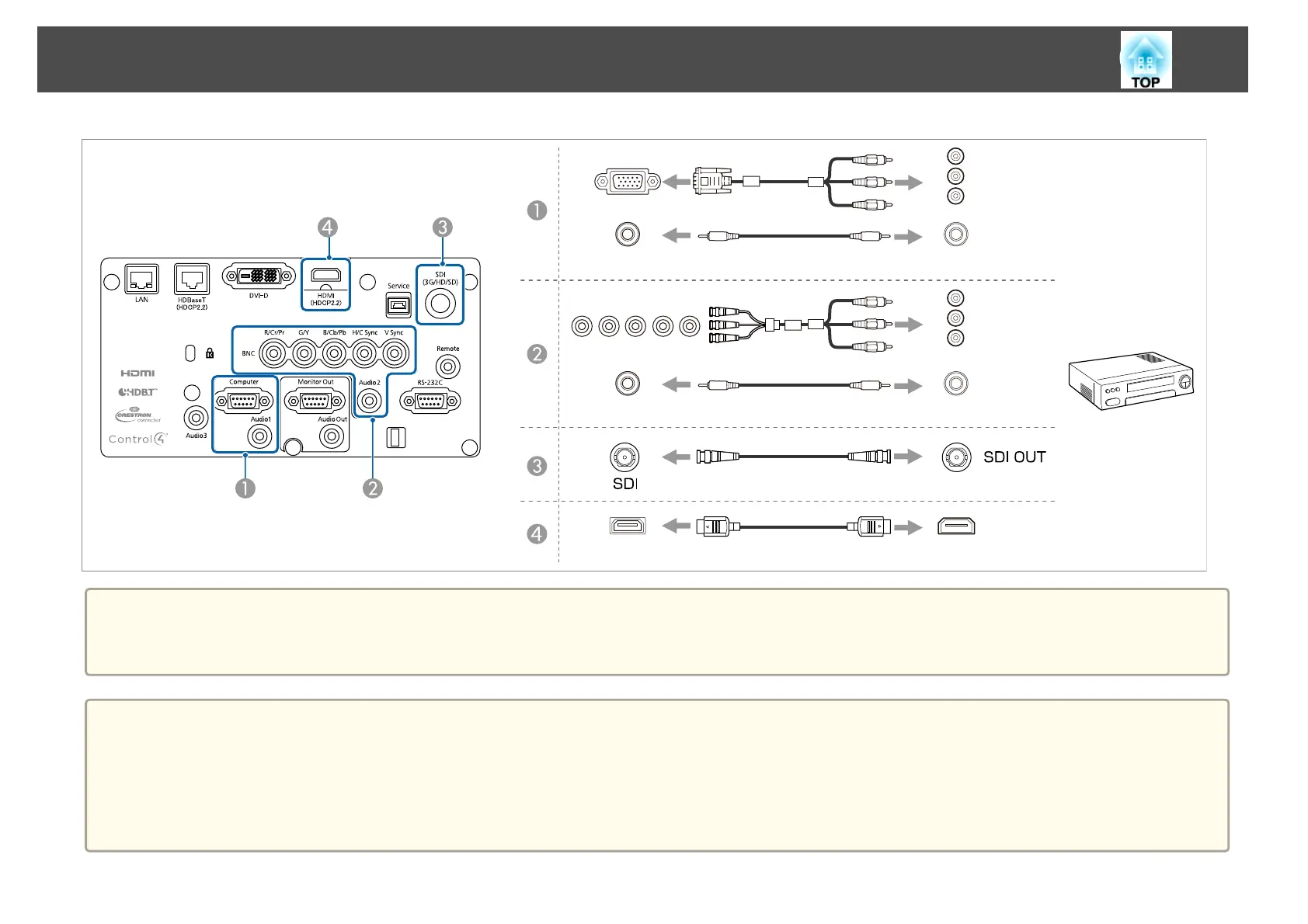

Attention
• If the input source is on when you connect it to the projector, it could cause a malfunction.
• If the orientation or shape of the plug differs, do not try to force it in. The device could be damaged or could malfunction.
a
• Change the audio output from Audio Settings.
s Extended - A/V Settings - Audio Settings p.133
• If audio is not sent using an HDMI cable, connect a commercially available audio cable to the Audio3 port to send the audio. Set HDMI Audio Output to
Audio3.
s Extended - A/V Settings - Audio Settings - HDMI Audio Output p.133
• If the source you want to connect to has an unusually shaped port, use the cable supplied with the device or an optional cable to connect to the projector.
Connecting Equipment
48

Epson EB-L1505U Specifications

General

Number of colors	1.073 billion colors
Native aspect ratio	16:10
Projection distance	1.99 - 27.77 m
Projection technology	3LCD
Contrast ratio (typical)	2500000:1
Screen size compatibility	60 - 500 \
Projection distance (tele)	3.3 - 27.8 m
Projection distance (wide)	2 - 17.2 m
Projector native resolution	WUXGA (1920x1200)
Keystone correction, vertical	-45 - 45 °
Keystone correction, horizontal	-30 - 30 °
Built-in display	Yes
Display diagonal	1.03 \
Throw ratio	1.57 - 2.56:1
Focal length range	36 - 57.35 mm
Vertical lens shift range	-60 - 60 %
Horizontal lens shift range	-18 - 18 %
Lamp power	670 W
Light source type	Lamp
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
3D	No
Video color modes	Cinema, Dynamic, Presentation, sRGB
Analog signal format system	-
Audio (L/R) in	3
Audio (L/R) out	1
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100 Mbit/s
Noise level	37 dB
Country of origin	China
Noise level (economic mode)	30 dB
Placement	Desktop
Product type	Large venue projector
Product color	Black
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	908 W
Power consumption (economy mode)	597 W
Cables included	AC, VGA
Pallet width	800 mm
Pallet height	150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	6 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	492 mm
Width	586 mm
Height	211 mm
Weight	23800 g
Package depth	780 mm
Package width	750 mm
Package height	325 mm
Package weight	33900 g
