Epson EB-L260F User Manual

166

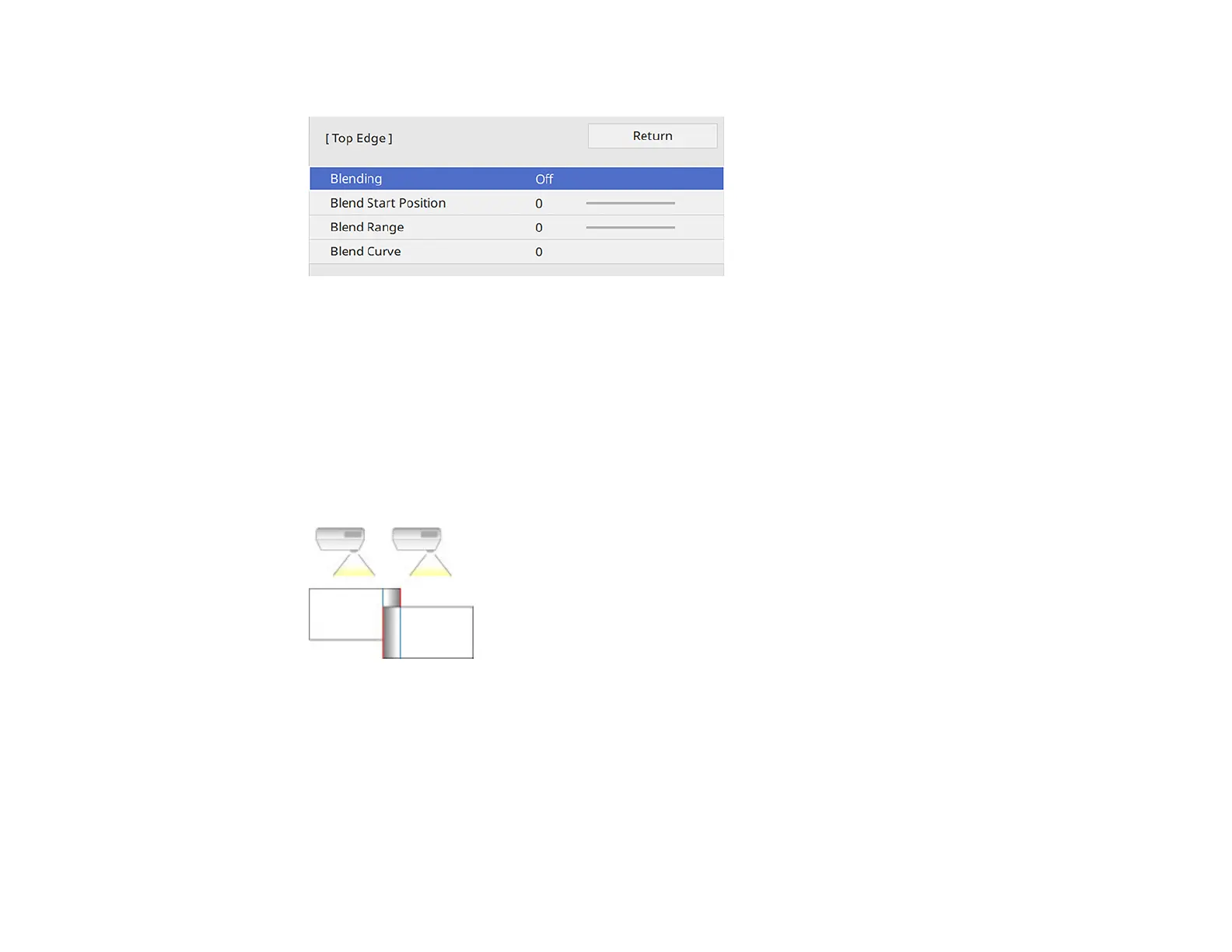

You see a screen like this:
6. Select the Blending setting and select On.
7. Press Esc to return to the previous screen.
8. Select the Blend Start Position setting and adjust the point where edge blending begins.
Note: If you created a unified image area using the Edge Blending feature, set the Blend Start
Position setting to 0.
9. Select the Blend Range setting and use the arrow buttons to select the width of the blended area so
that the displayed guides are at the edges of the overlapping area between the two images.
10. Press Esc to go back to the previous screen.
11. Select the Blend Curve setting and select a gradient for the shaded area on the projectors.
12. When the edges are blended, turn off the Line Guide and Pattern Guide settings on each projector
to check the final settings.
13. When you are finished, press the Menu button.

Epson EB-L260F Specifications

General

Heat dissipation	884 BTU/h
Number of colors	1.07 billion colors
Native aspect ratio	16:9
Vertical scan range	192 - 240 Hz
Projection technology	3LCD
Contrast ratio (typical)	2500000:1
Screen size compatibility	31 - 310 \
Projection distance (wide)	0.9 - 9.1 m
Projector native resolution	1080p (1920x1080)
Keystone correction, horizontal	30 °
Projector brightness (economic mode)	3200 ANSI lumens
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Offset	1000 %
Throw ratio	1.32 - 2.12:1
Zoom capability	Yes
Focal length range	18.2 - 29.1 mm
Aperture range (F-F)	1.51 - 1.77
Serial interface type	RS-232C
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	3
USB 2.0 Type-A ports quantity	1
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Noise level	37 dB
Projection modes	Ceiling, Front
Noise level (economic mode)	27 dB
Placement	Ceiling, Desktop, Floor, Wall
Product type	Standard throw projector
Product color	White
Cable lock slot type	Kensington
Video color modes	Blackboard, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB
RMS rated power	16 W
Power source	AC
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	260 W
Power consumption (standby)	0.5 W
Power consumption (typical)	199 W
Power consumption (economy mode)	144 W
Storage temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Cables included	HDMI, Power
Bundled software	Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	299 mm
Width	325 mm
Height	90 mm
Weight	4200 g
