13 LAN (network) port

14 USB-A port

15 USB-B port

16 Wireless LAN module cover screw

Parent topic: Projector Part Locations

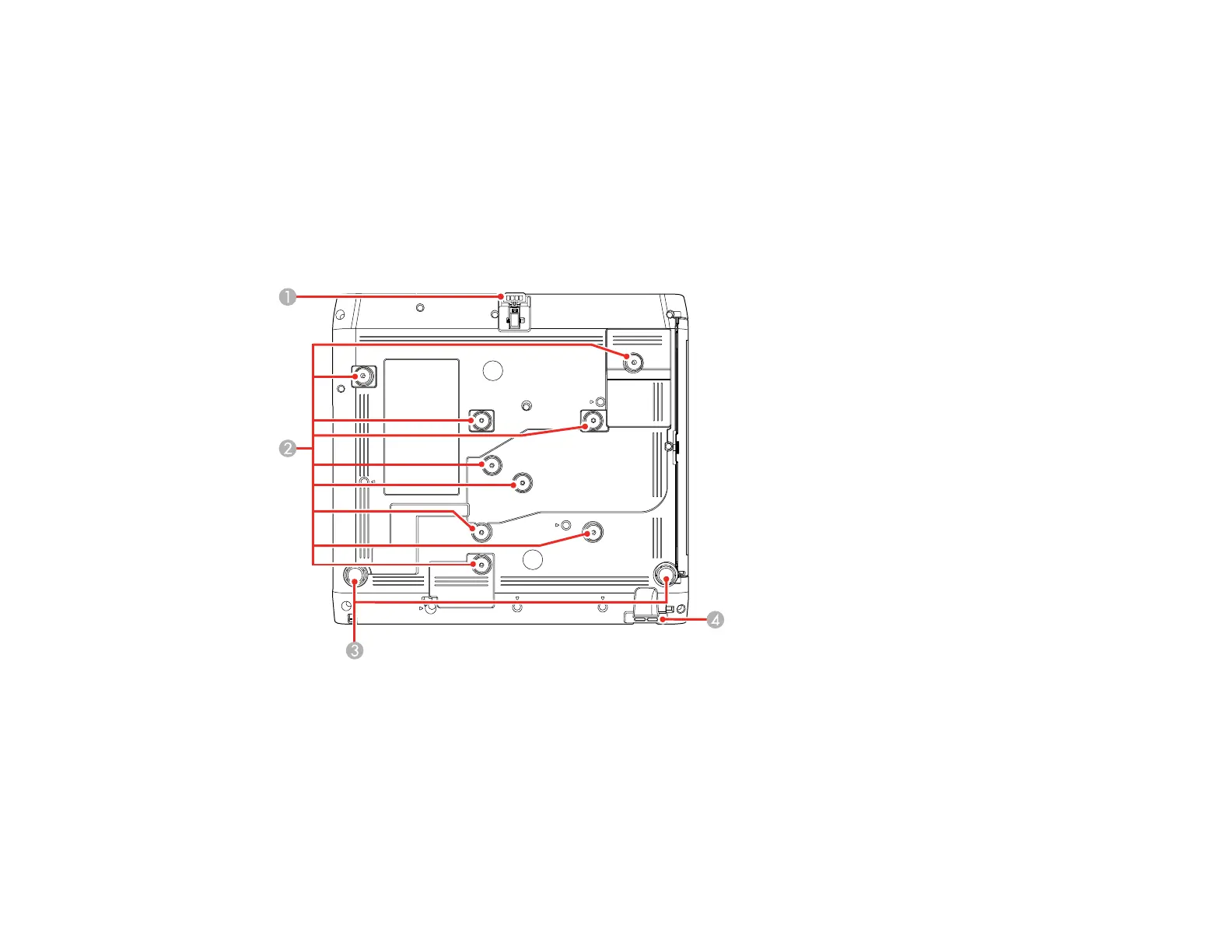

Projector Parts - Base

1 Front adjustable foot

2 Ceiling/wall mount holes (9)

3 Rear feet

4 Security cable attachment point
