Epson EB-W28 - Appearance

145 pages

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

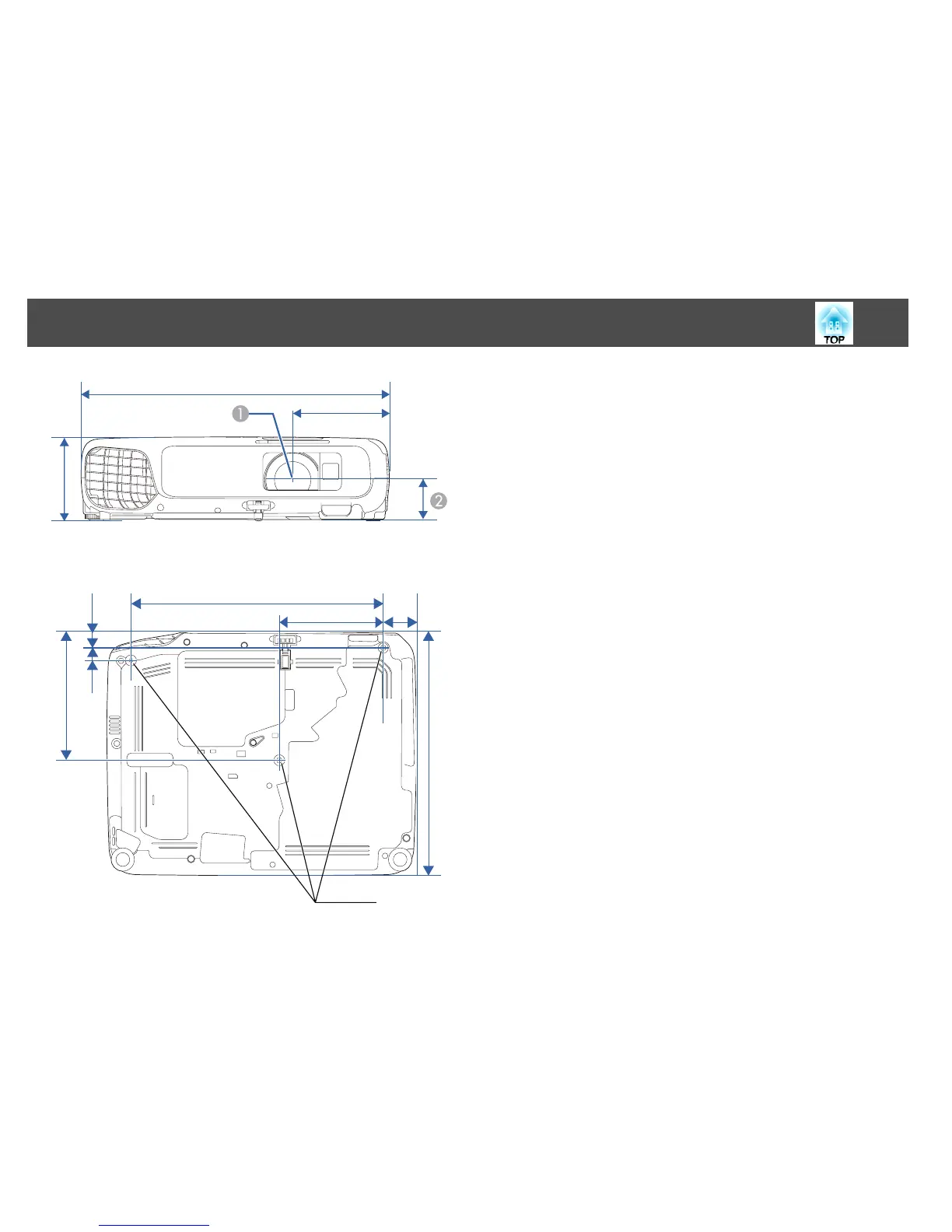

297

93

38.3

79

A

Center of lens

B

Distance from center of lens to suspension bracket fixing point

99.6

3-M4 x9

31.8

234

15.912

123.4

242

Units: mm

Appearance

138
