a
Auto V-Keystone works only when Projection is set to Front from
the Configuration menu.
s Extended - Projection p.85
If you do not want to enable Auto V-Keystone, set Auto V-
Keystone to Off.
s Settings - Keystone - H/V-Keystone - Auto V-Keystone
p.84

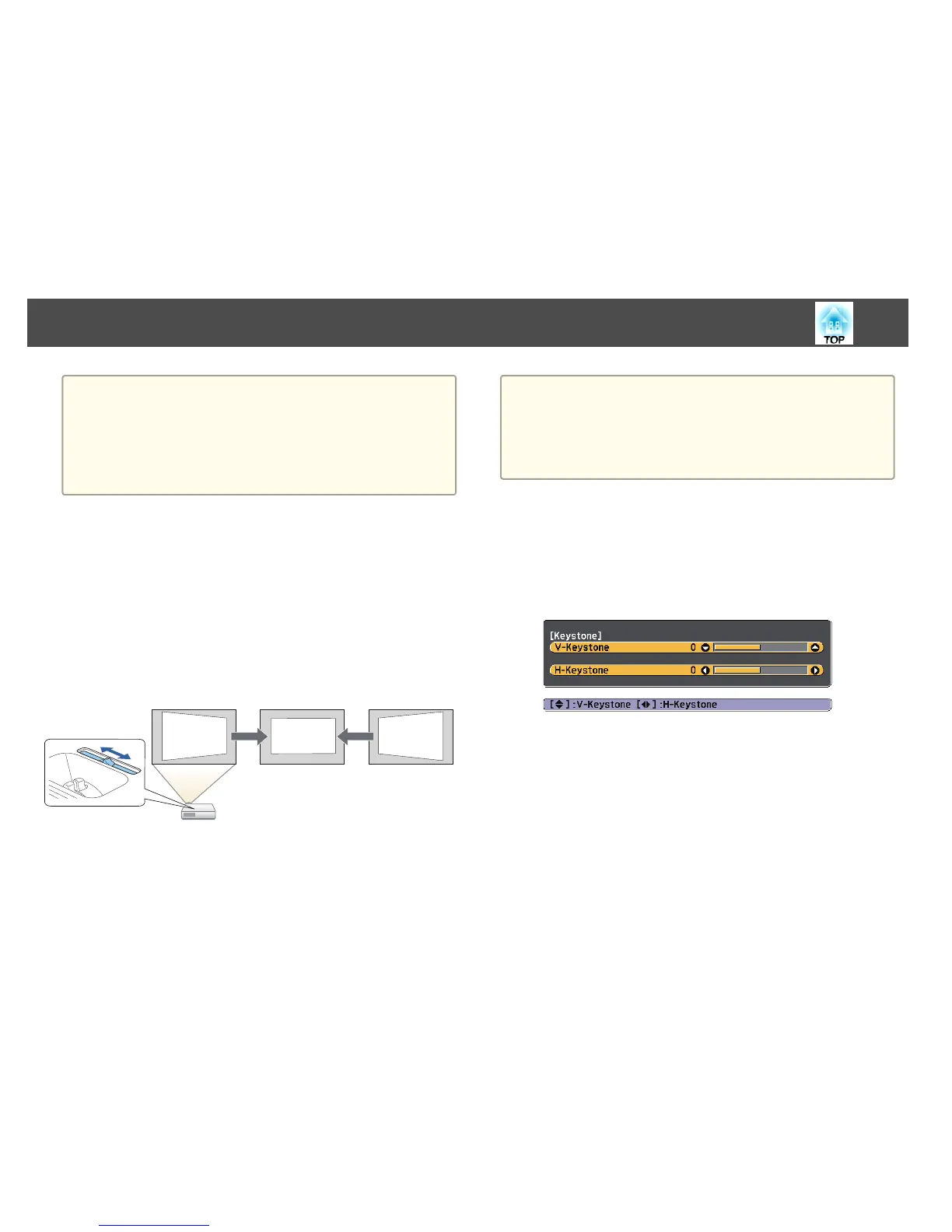

Correcting manually
You can manually correct keystone distortion.
You can use H/V-Keystone to correct the projected image under the
following conditions.
Correction angle: approx. 30˚ right and left/approx. 30˚ up and down
H-Keystone Adjuster
Move the horizontal keystone adjuster to the right or left to perform
horizontal keystone correction.
a
When using horizontal keystone adjuster, set H-Keystone Adjuster
to On.
s Settings - Keystone - H/V-Keystone - H-Keystone Adjuster
p.84
You can also correct keystone distortion in the horizontal direction
using H/V-Keystone.
H/V-Keystone
Manually correct distortion in the horizontal and vertical directions
independently.
a
Press the [w] or [v] button on the control panel during
projection to display the Keystone screen.
b
Press the following buttons to correct keystone distortion.
Press the [
w] or [v] button to correct vertical distortion.
Adjusting Projected Images
38

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Epson EB-W28 and is the answer not in the manual?

Epson EB-W28 Specifications

General IconGeneral
Number of colors1.073 billion colors
Native aspect ratio16:10
Projection distance1.68 - 2.02 m
Vertical scan range50 - 85 Hz
Projection technology3LCD
Contrast ratio (typical)10000:1
Screen size compatibility33 - 320 \
Projector native resolutionWXGA (1280x800)
Keystone correction, horizontal-30 - 30 °
Projector brightness (economic mode)2100 ANSI lumens
FocusManual
Throw ratio1.3 - 1.56:1
Zoom capabilityYes
Focal length range16.9 - 20.28 mm
Aperture range (F-F)1.58 - 1.72
Lamp power200 W
Lamps quantity1 lamp(s)
Light source typeLamp
Service life of light source5000 h
Service life of light source (economic mode)6000 h
Full HDNo
Analog signal format system-
USB connector typeUSB Type-A, USB Type-B
USB 2.0 ports quantity2
Noise level37 dB
Country of originChina
Noise level (economic mode)29 dB
RMS rated power2 W
PlacementDesktop
Product typeStandard throw projector
Product colorWhite
Cable lock slot typeKensington
Power sourceAC
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (standby)0.28 W
Power consumption (typical)270 W
Power consumption (PowerSave)201 W
Storage temperature (T-T)-10 - 60 °C
Operating temperature (T-T)5 - 35 °C
Storage relative humidity (H-H)10 - 90 %
Operating relative humidity (H-H)20 - 60 %
Cables includedAC, USB
Remote control typeIR
Pallet width800 mm
Pallet height2230 mm
Pallet length1200 mm
Pallet width (UK)1000 mm
Quantity per pack1 pc(s)
Quantity per pallet78 pc(s)
Quantity per pallet layer6 pc(s)
Weight and Dimensions IconWeight and Dimensions
Depth234 mm
Width297 mm
Height77 mm
Weight2400 g
Package depth365 mm
Package width360 mm
Package height160 mm
Package weight3980 g
