Epson EB-X9 User Manual

Name Function
M
Focus ring
Adjusts the image focus. s Quick Start Guide
N
Control panel
s "Control Panel (EB-W10/X10/W9/X9/X92)" p.13
s "Control Panel (EB-S10/S9/S92)" p.14

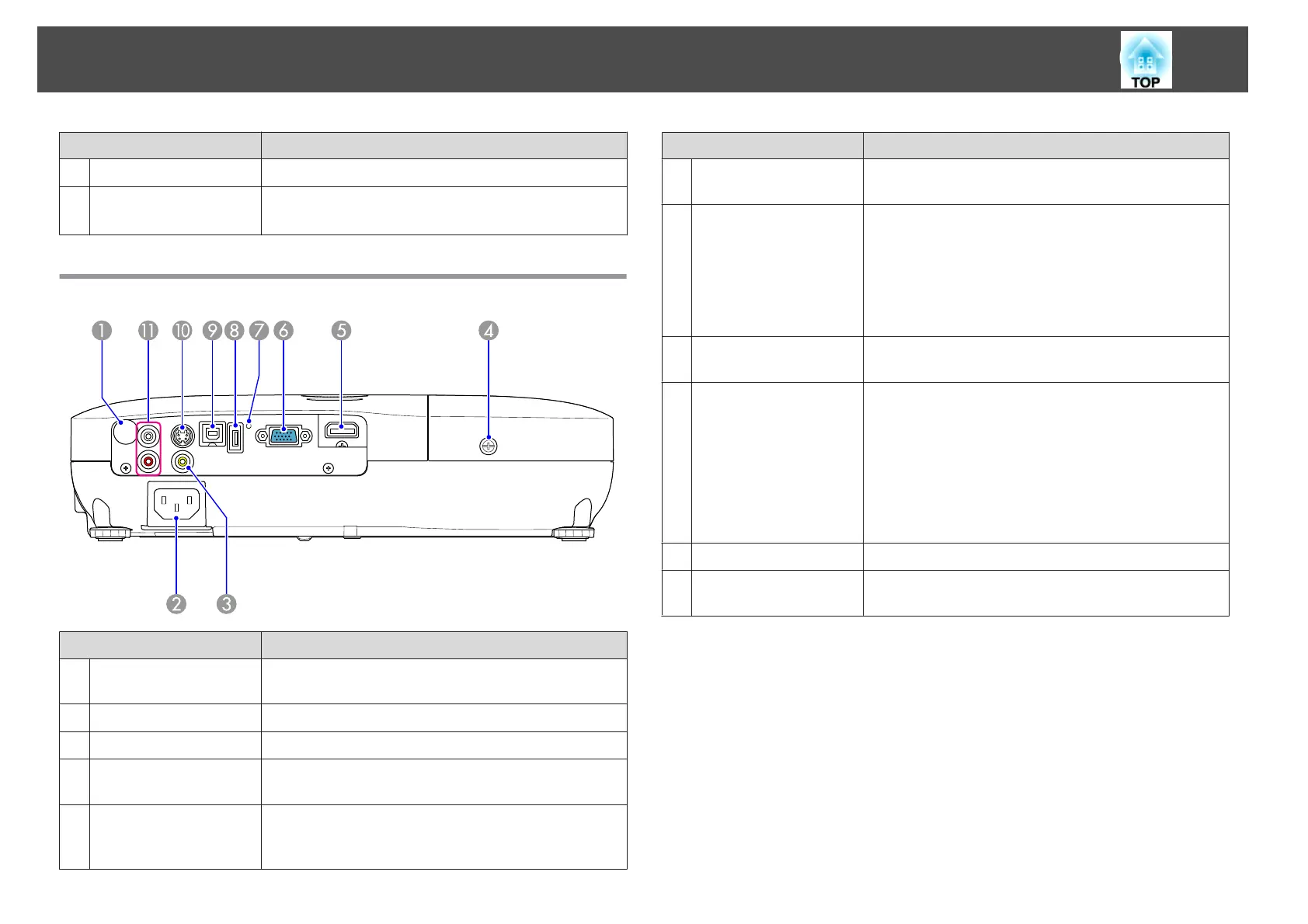

Rear (EB-W10/X10)
Name Function
A
Remote Receiver
Receives signals from the remote control. s Quick Start
Guide
B
Power inlet
Connects to the power cable. s Quick Start Guide
C
Video Input Port
For composite video signals from video sources.
D
Lamp Cover Fixing
Screw
Screw to fix the Lamp cover in place. s p.75
E
HDMI port
Inputs video signals from HDMI compatible video
equipment and computers. This projector is compatible
with HDCP
g .
Name Function
F
Computer input port
For video signals from a computer and component video
signals from other video sources.
G
USB indicator
The following explains the status of USB devices
connected to USB(TypeA) port.
OFF: USB device is not connected
Orange Light ON: USB device is connected
Green Light ON: USB device is operating
Red Light ON: Error
H
USB(TypeA) port
Connects a USB storage device or a digital camera, and
projects JPEG images using Slideshow. s p.41
I
USB(TypeB) port
You can use the following functions by connecting to a
computer with the supplied USB cable.
• USB Display s p.18
• Wireless Mouse s p.34
• Paging operation of document files such as PowerPoint
files s p.36
• Monitoring and controlling of the projector via USB
communication s p.88
J
S-Video input port
For S-video signals from video sources.
K
Audio-L/R port
Inputs audio from the audio out port on the other
equipment. s Quick Start Guide
Part Names and Functions
10

Epson EB-X9 Specifications

General

Matrix size	0.55 \
Projection distance	1.8 - 2.4 m
Projection technology	LCD
Contrast ratio (typical)	2000:1
Screen size compatibility	30 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	30 °
Audio input	1 x RCA
Aspect ratio	4:3
RS-232 ports	0
Dimensions (WxDxH)	295 x 228 x 77 mm
Lamp type	UHE
Lamp power	200 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
Analog signal format system	-
RMS rated power	1 W
Number of built-in speakers	1
DVI port	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Power consumption (standby)	0.4 W
Power consumption (typical)	265 W
Noise level	37 dB
Country of origin	China
Pallet width	800 mm
Pallet height	2230 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	78 pc(s)
Quantity per pallet layer	6 pc(s)

Weight and Dimensions

Weight	2300 g
Package depth	360 mm
Package width	340 mm
Package height	160 mm
Package weight	4060 g
