Projector Parts and Functions
11
Name Function
K
Security slot The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
L
Control panel Operates the projector.
M
Zoom ring Adjusts the image size.
N
Focus ring Adjusts the image focus.
O
Lamp cover Open to access the projector's lamp.
gg Related Links
• "Projector Indicator Status" p.129
• "Resizing the Image with the Zoom Ring" p.43
• "Focusing the Image Using the Focus Ring" p.44
• "Correcting the Image Shape with the Horizontal Keystone Slider" p.38

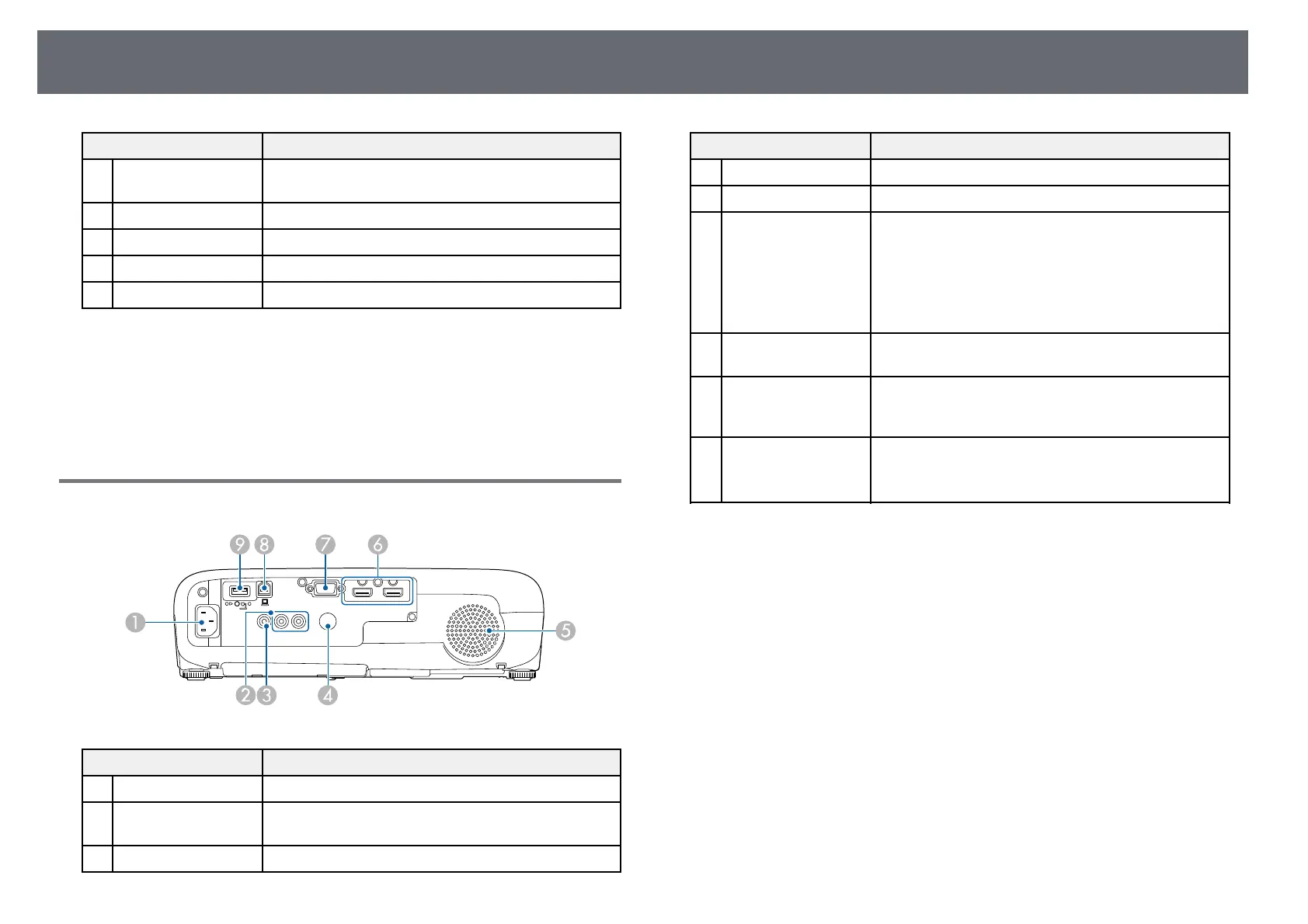

Projector Parts - Rear
Name Function
A
Power inlet Connects the power cord to the projector.
B
Audio ports Inputs audio from equipment connected to the
Computer or Video port.
C
Video port Inputs composite video signals from video sources.
Name Function
D
Remote receiver Receives signals from the remote control.
E
Speaker Outputs audio.
F
HDMI1,
HDMI2/MHL ports
Inputs video signals from HDMI compatible video
equipment and computers.
The HDMI/MHL port can also input video signals
from MHL (Mobile High-Definition) compatible
mobile devices.
This projector is compatible with HDCP.
G
Computer port Inputs image signals from a computer and component
video signals from other video sources.
H
USB-B port Connects a USB cable to the computer to project
computer images or to use the Wireless Mouse
function.
I
USB-A port Connects a USB memory device or a digital camera
and projects movies or images using PC Free.
Connects the optional document camera.
gg Related Links
• "Using the Remote Control as a Wireless Mouse" p.64
• "Installing a Security Cable" p.76
• "Projecting a PC Free Presentation" p.56
