Connecting to Video Sources
Follow the instructions in these sections to connect video devices to the
projector.
a
• If the port on the device you connect has an unusual shape, use the
cable supplied with the device or an optional cable to connect to the
projector.
• The cable differs depending on the output signal from the connected
video devices.
• Some video devices are capable of outputting different types of
signals. See your video device manual to confirm what type of signals
can be output.
gg Related Links
• "Connecting to an HDMI Video Source" p.22
• "Connecting to a Component-to-VGA Video Source" p.22
• "Connecting to a Composite Video Source" p.23

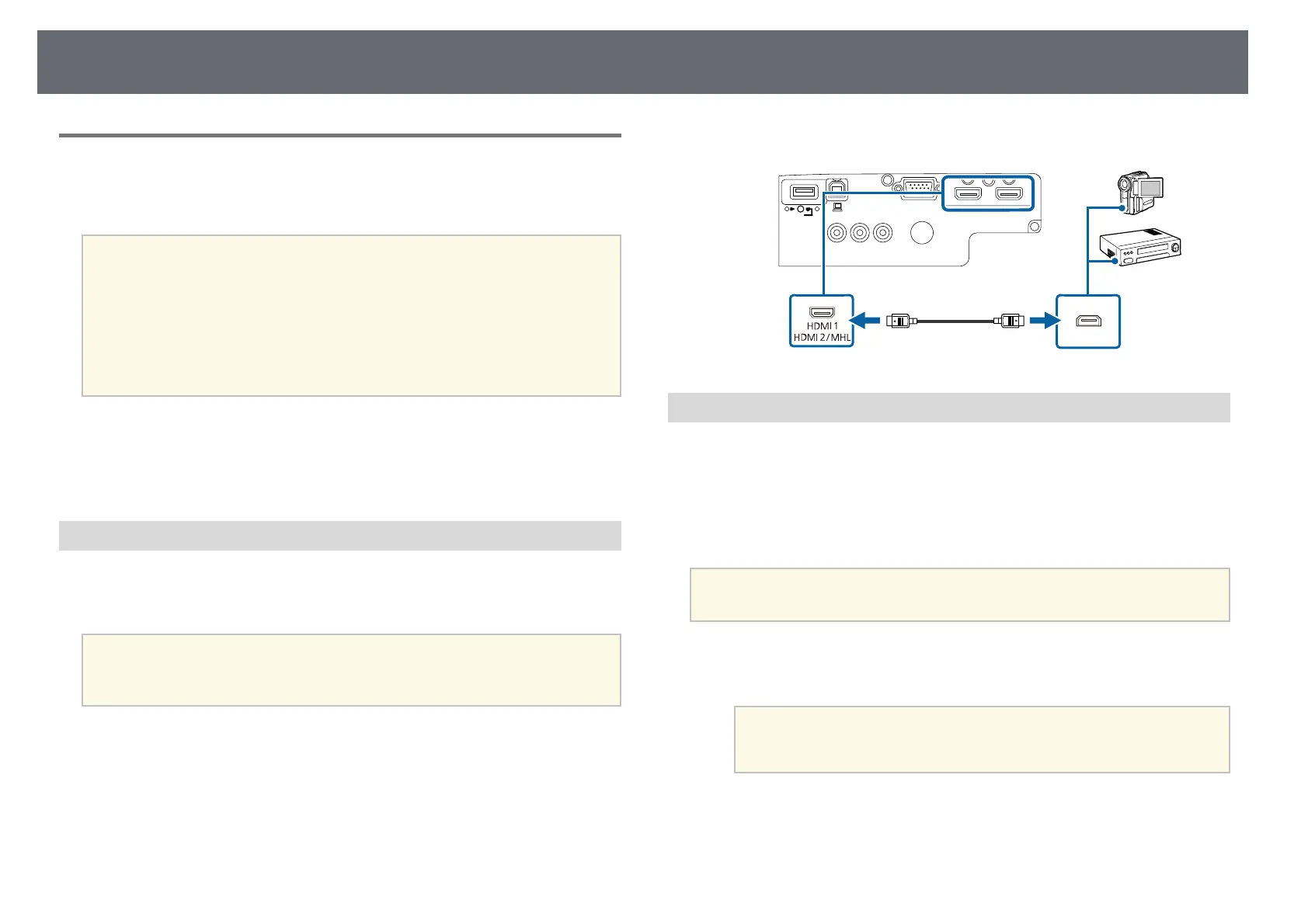

Connecting to an HDMI Video Source
If your video source has an HDMI port, you can connect it to the projector
using an HDMI cable and send the image source's audio with the projected
image.
Attention
Do not turn on the video source before connecting it to the projector. Doing so
could damage the projector.
a
Connect the HDMI cable to your video source's HDMI output port.
b
Connect the other end to the projector's HDMI port.
Connecting to a Component-to-VGA Video Source
If your video source has component video ports, you can connect it to the
projector using a component-to-VGA video cable. Depending on your
component ports, you may need to use an adapter cable along with a
component video cable.
You can play sound through the projector's speaker system by connecting a
commercially available RCA audio cable.
a
• Make sure the audio cable is labeled "No resistance".
a
Connect the component connectors to your video source's color-coded
component video output ports.
a
The ports usually labeled Y, Pb, Pr or Y, Cb, Cr. If you are using
an adapter, connect these connectors to your component video
cable.

Epson EH-TW650 Specifications

General

Matrix size	0.61 \
Number of colors	1.073 billion colors
Native aspect ratio	16:9
Projection distance	1.35 - 1.64 m
Vertical scan range	192 - 240 Hz
Projection technology	3LCD
Contrast ratio (typical)	15000:1
Screen size compatibility	30 - 300 \
Projector native resolution	1080p (1920x1080)
Keystone correction, horizontal	-30 - 30 °
Projector brightness (economic mode)	1925 ANSI lumens
Focus	Manual
Throw ratio	1.02 - 1.23:1
Focal length range	18.2 - 29.2 mm
Aperture range (F-F)	1.58 - 1.7
Lamp type	UHE
Lamp power	210 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	4500 h
Service life of light source (economic mode)	7500 h
3D	No
Full HD	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	0
Component video (YPbPr/YCbCr) in	-
Noise level	37 dB
Country of origin	Philippines
Noise level (economic mode)	28 dB
Cables included	AC
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	298 W
Power consumption (economy mode)	219 W
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	White
Market positioning	Home cinema
Cable lock slot type	Kensington
RMS rated power	2 W
Pallet width	800 mm
Pallet height	2204 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	78 pc(s)
Quantity per pallet layer	6 pc(s)

Weight and Dimensions

Depth	252 mm
Width	302 mm
Height	92 mm
Weight	2700 g
Package depth	380 mm
Package width	355 mm
Package height	160 mm
Package weight	3560 g
