Selecting an Image Source

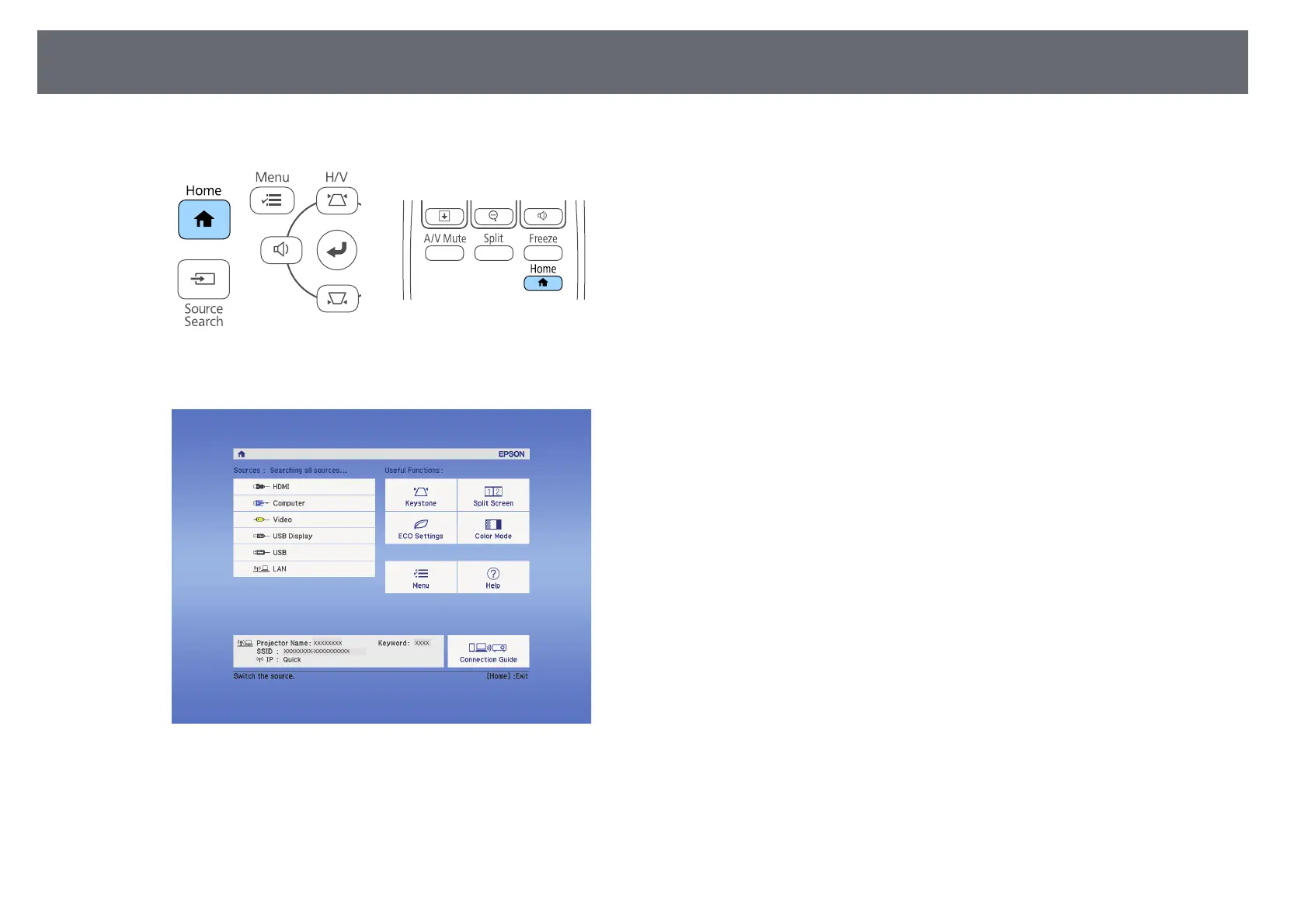

• Press the [Home] button on the control panel or remote control.

Then select the source you want to use from the screen displayed.
