Epson Expression 12000XL

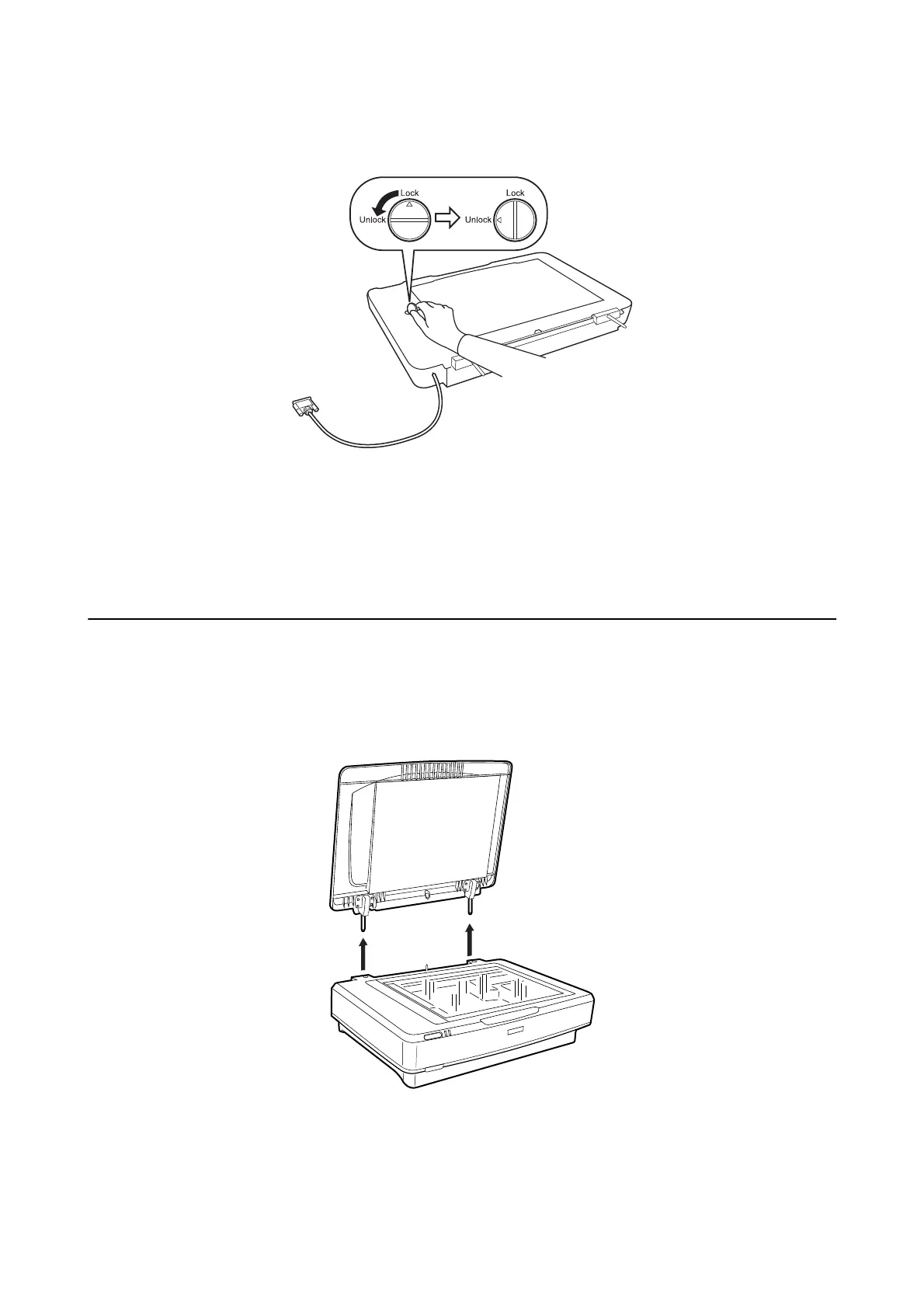

2. Use a coin to unlock the transportation lock by turning it counter-clockwise one-quarter.
Note:
❏ Before transporting the scanner, lock the transportation lock to prevent damage.
❏ If the unit’s lamp assembly is not in its home position, you cannot lock the transportation lock. In this case, reattach
the unit to the scanner, close the unit, and then turn on the scanner; the unit’s lamp assembly then returns to its
home position. Turn
o
the scanner and remove the Transparency Unit.
Installing the Transparency Unit
1. Make sure the scanner is turned o, and then unplug the power cord from the scanner.
2.
Open the scanner’s document cover, and then remove it by liing the cover straight up.
User's Guide
Using the Transparency Unit
41
