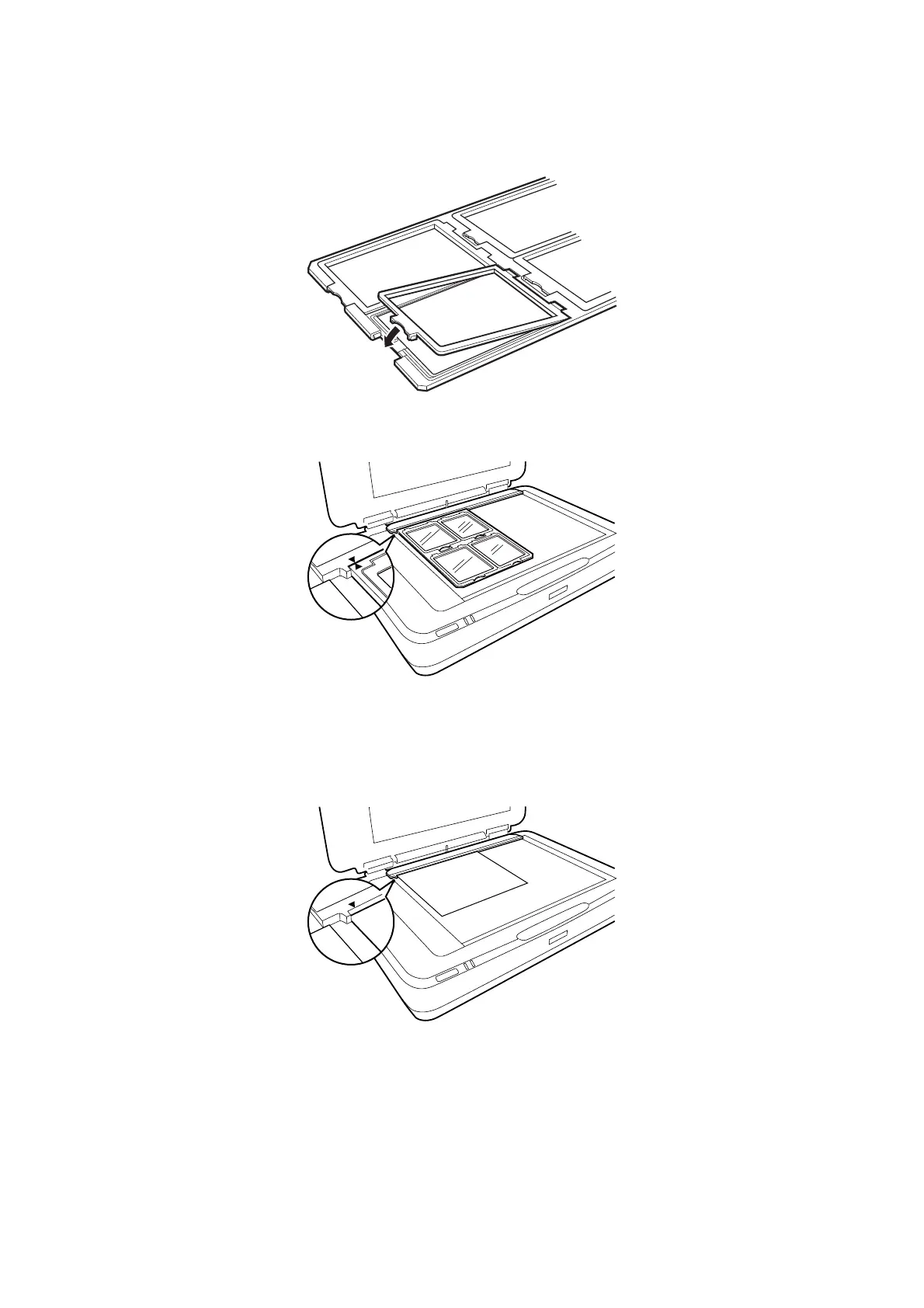

3. Close the cover. Repeat steps 1 to 3 for all the lms you want to scan.
4. Place the holder on the scanner glass and align it with the notch on the transparency guide, as shown below.
Non-standard lm sizes
Place the
lm
directly on the scanner glass, making sure the glossy (smooth) side of the
lm
is facing down.
If the document mat is installed in the Transparency Unit, remove it. Close the Transparency Unit.
Note:
❏ An area 17.0 ±0.5 mm from the horizontal and 2.0 ±0.5 mm from the vertical edges of the scanner glass cannot be
scanned.
❏ When you place the lm directly on the scanner glass, make sure you set the focus position to 0.0 in Epson Scan 2.
User's Guide
Using the Transparency Unit
48
