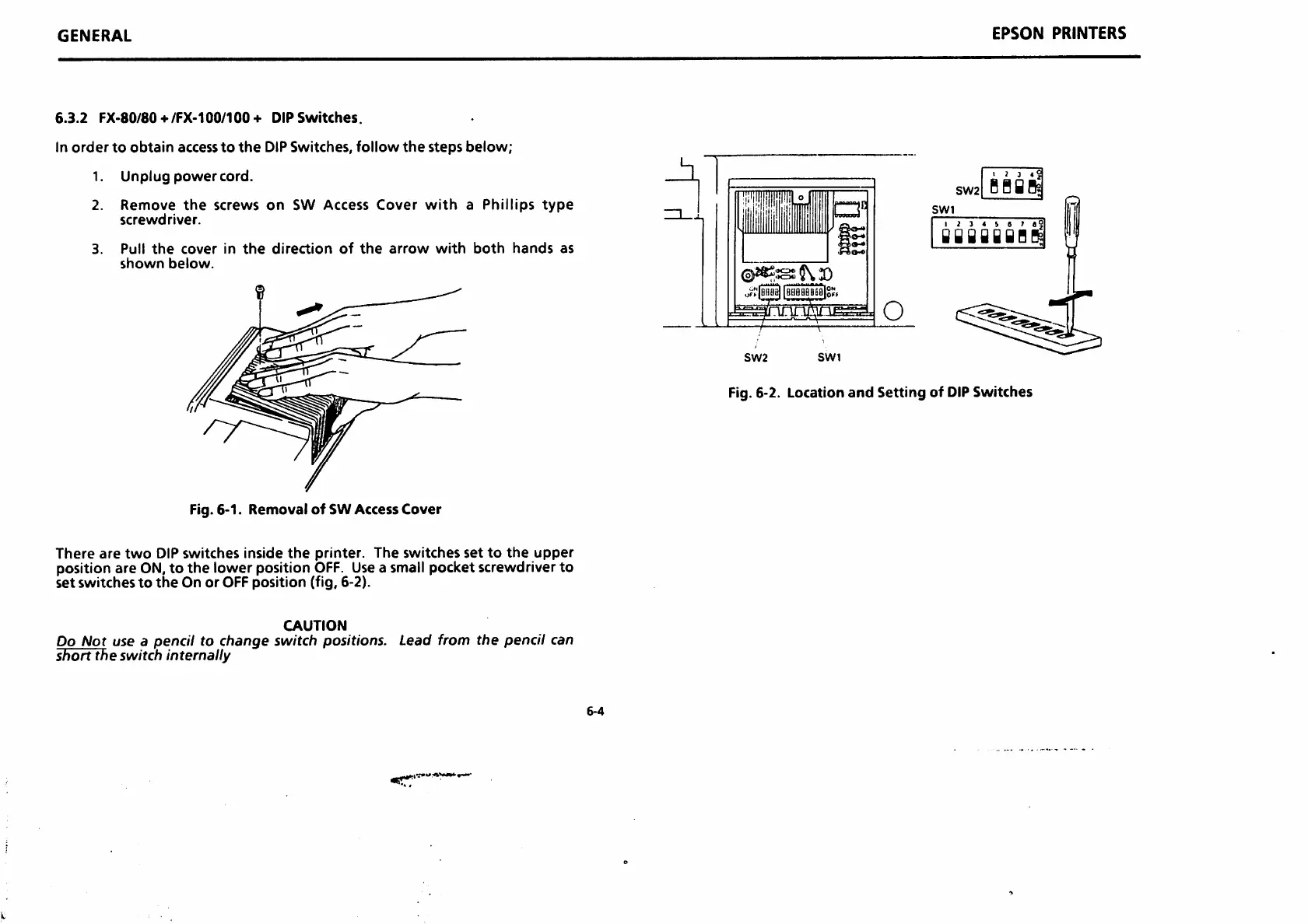

6.3.2 FX-80/80-i-/FX-100/100-f DIP Switches.
In order to obtain access to the DIPSwitches, follow the steps below;
1. Unplug power cord.
2. Remove the screws on SW Access Cover with a Phillips type
screwdriver.
3. Pull the cover in the direction of the arrow with both hands as
shown below.
Fig. 6-1. Removal of SW Access Cover
There are two DIP switches inside the printer. The switches set to the upper
position are ON, to the lower position OFF. Usea small pocket screwdriver to
set switches to the On or OFF position (fig, 6-2).
CAUTION
Do Not use a pencil to change switch positions. Lead from the pencil can
short the switch internally
6-4
o
EPSON PRINTERS
1 J 3 4?
i j 3 4 & 6 ; 6
BBBBeBBBs
SW2 SWl
Fig.6-2. Location and Setting of DIP Switches
