EPSON PRINTERS

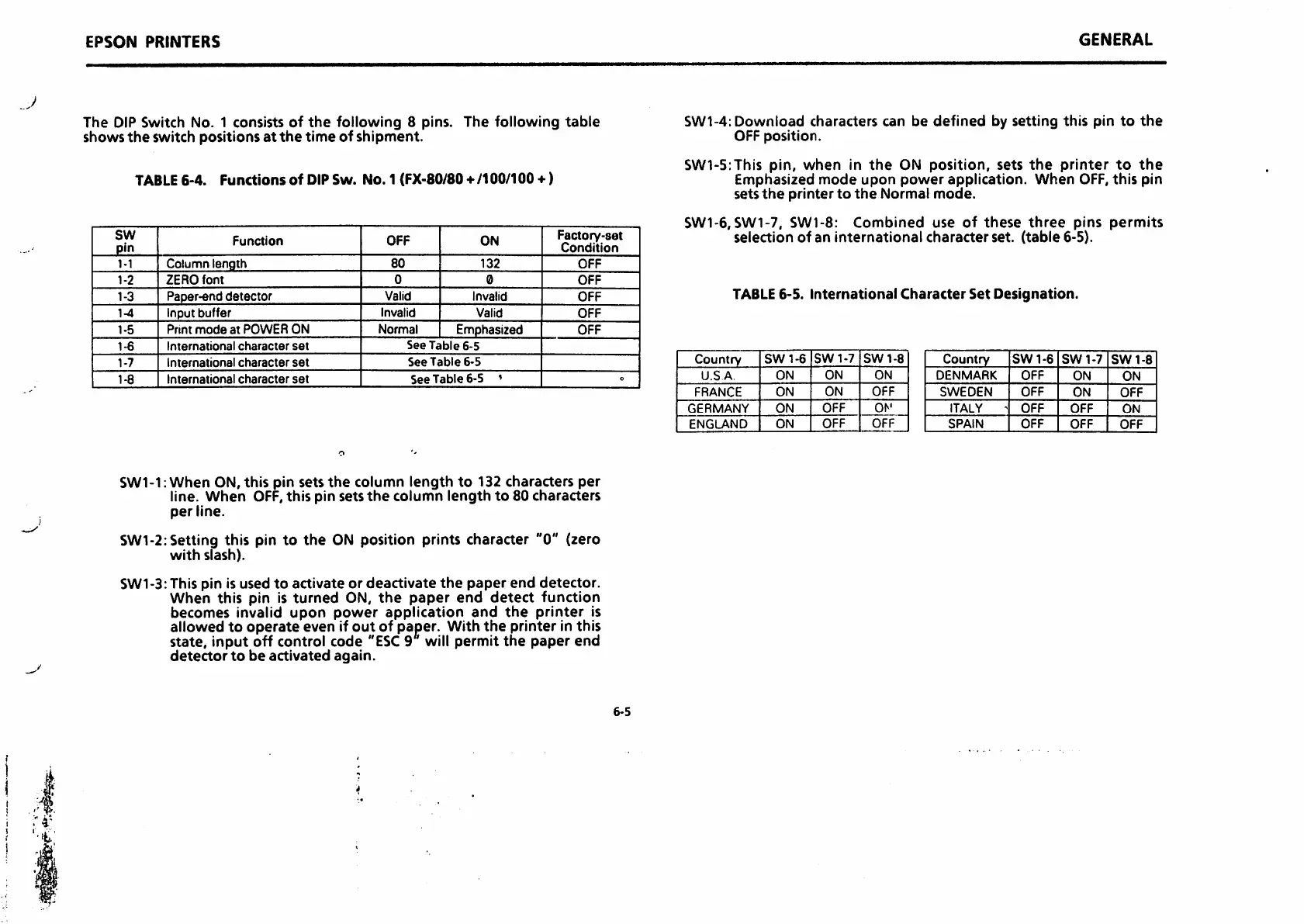

The DIP Switch No. 1 consists of the following 8 pins. The following table
shows the switch positions at the time of shipment.
TABLE 6-4. Functions of DIPSw. No. 1 (FX-80/80 + /100/100 ^)
sw
pin
Function
OFF ON
Factory-set
Condition
M Column length 80
132 OFF
1-2
ZERO font
0
0
OFF
1-3
Paper-end detector
Valid
Invalid
OFF
M Input buffer
Invalid
Valid OFF
1-5
Pnnt mode at POWER ON
Normal
Emphasized
OFF
1-6
International character set
See Table 6-5
1-7
International character set
See Table 6-5
1-8
International character set See Table 6-5 »
SW1-1:When ON. this pin sets the column length to 132 characters per
line. When OFF, this pin sets the column length to 80 characters
per line.
SWl-2: Setting this pin to the ON position prints character "0" (zero
with slash).
SW1-3:This pin is used to activate or deactivate the paper end detector.
When this pin is turned ON, the paper end detect function
becomes invalid upon power application and the printer is
allowed to operateevenifout of paper. With the printerinthis
state, input off control code "ESC9 will permit the paper end
detector to be activated again.
6-5
GENERAL
SW1-4: Download characters can be defined by setting this pin to the
OFF position.
SWl-5:This pin, when in the ON position, sets the printer to the
Emphasized mode upon power application. When OFF, this pin
sets the printer to the Normal mode.
SW1-6,SW1-7, SW1-8: Combined use of these three pins permits
selection of an international character set. (table 6-5).
TABLE 6-5. International Character Set Designation.
Country
SWl-6
SW1-7
SWl-8
Country
SW1-6
SW1-7
SW1-8
U.S A. ON
ON
ON
DENMARK OFF
ON
ON
FRANCE
ON
ON OFF
SWEDEN
OFF
ON
OFF
GERMANY ON
OFF
ON'
ITALY ^ OFF OFF
ON
ENGLAND
ON
OFF OFF
SPAIN OFF
OFF
OFF
