Epson FX Series

J
EPSON PRINTERS

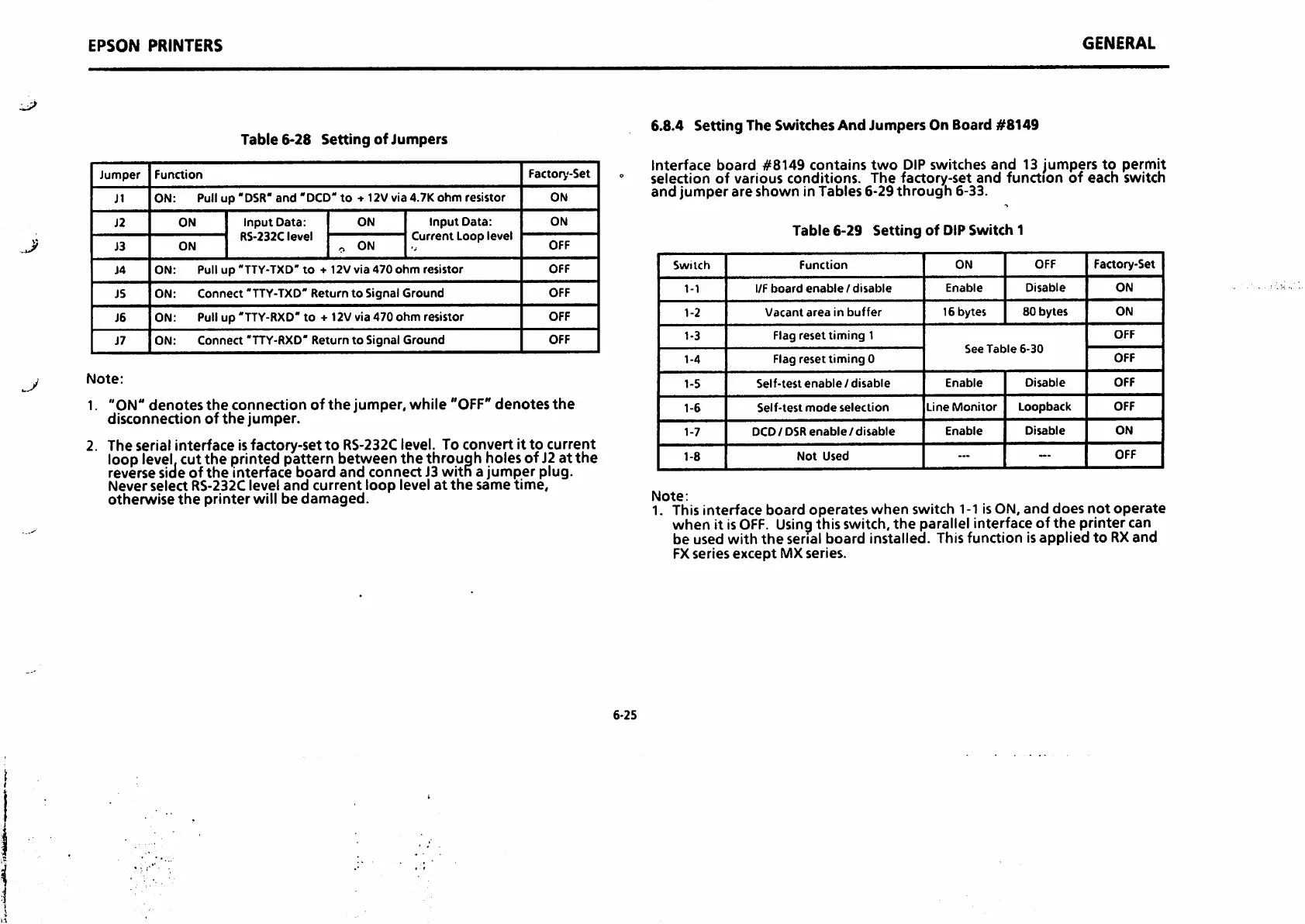

Table 6*28 Setting of Jumpers
Jumper Function
Factory-Set
J1
ON: Pull up "DSR" and "DCD" to + 12Vvia 4.7K ohm resistor
ON
J2
ON Input Data:
RS-232C level
ON
Input Data:
Current Loop level
ON
J3
ON
o ON
OFF
J4 ON Pull up "TTY-TXD" to + 12Vvia 470 ohm resistor
OFF
J5 ON Connect "TTY-TXD" Return to Signal Ground
OFF
J6 ON Pull up "TTY-RXD" to + 12V via 470 ohm resistor
OFF
J7 ON Connect "TTY-RXD" Return to Signal Ground
OFF
Note:
1. "ON" denotes the connection of the jumper, while "OFF" denotes the
disconnection of the jumper.
2. The serial interface isfactory-set to RS-232Clevel. To convert it to current
loop level, cutthe printedpattern between the through holesof J2 at the
reverse side of the interface board and connectJ3 with a jumper plug.
Never select RS-232Clevel and current loop level at the same time,
otherwise the printer will be damaged.
6-25
GENERAL
6.8.4 Setting The SwitchesAnd Jumpers On Board #8149
Interface board #8149 contains two DIP switches and 13 jumpers to permit
selection of various conditions. The factory-set and function of each switch
and jumper are shown in Tables 6-29 through 6-33.
Table 6-29
Setting of DIPSwitch 1
Switch
Function
ON
OFF Factory-Set
1-1 l/F board enable / disable
Enable
Disable ON
1-2
Vacant area in buffer
16 bytes
80 bytes
ON
1-3
Flag reset timing 1
See Table 6-30
OFF
1-4 Flag reset timing 0
OFF
1-5
Self-test enable / disable
Enable
Disable
OFF
1-6
Self-test mode selection
Line Monitor
Loopback OFF
1-7
DCD/DSR enable/disable
Enable
Disable
ON
1-8
Not Used
...
...
OFF
Note:
1. This interface board operates when switch 1-1 isON, and does not operate
when it isOFF. Using this switch, the parallel interface of the printer can
be used with the serial board installed. This function is applied to RX and
FX series except MX series.
