GENERAL
Note:
1. The X-ON signal can be sent when the vacant area reaches the above
value.

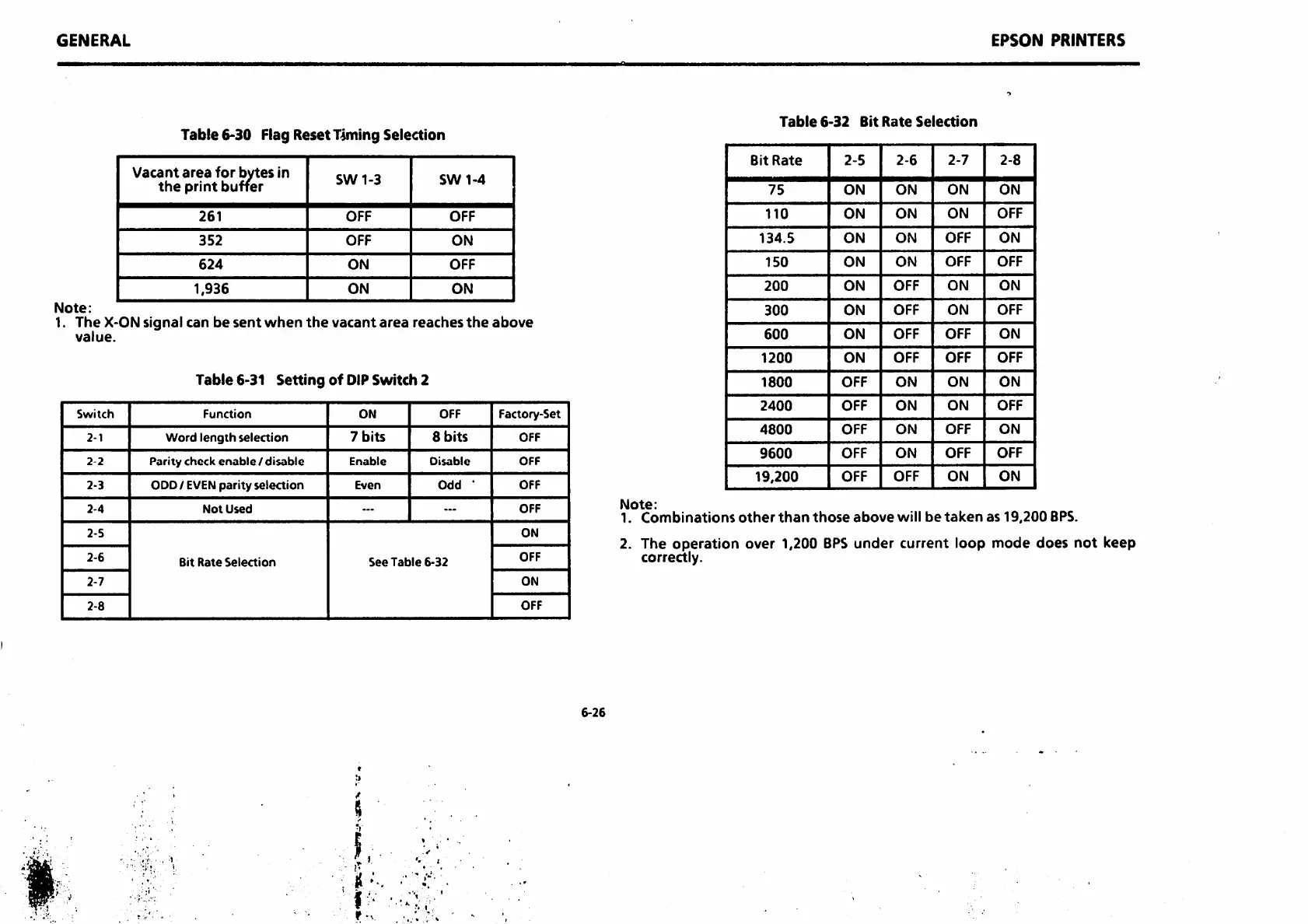

Table6-30 Flag Reset T^ing Selection
Vacantarea for bytesin
the print buffer
SW1-3
SW1-4
261 OFF OFF
352 OFF ON
624 ON
OFF
1.936
ON ON
Table 6-31 Setting of DIPSwitch 2
Switch Function
ON
OFF Factory-Set
2-1 Word length selection 7 bits 8 bits OFF
2-2
Parity check enable / disable
Enable Disable
OFF
2-3
ODD / EVEN parity selection
Even
Odd '
OFF
2-4 Not Used
... ...
OFF
2-5
ON
2-6
Bit Rate Selection
See Table 6-32
OFF
2-7
ON
2-8
OFF
6-26
EPSON PRINTERS
Table 6-32 Bit Rate Selection
Bit Rate 2-5 2-6
2-7
2-8
75
ON ON ON ON
110
ON
ON
ON
OFF
134.5
ON ON OFF ON
150
ON
ON
OFF OFF
200 ON
OFF
ON ON
300
ON OFF ON
OFF
600
ON
OFF OFF
ON
1200
ON OFF OFF
OFF
1800
OFF ON ON
ON
2400
OFF
ON ON OFF
4800
OFF ON OFF ON
9600
OFF ON OFF
OFF
19,200
OFF OFF
ON ON
Note:
1. Confibinations other than those above will be taken as 19.200 BPS.
2. The operation over 1.200 BPS under current loop mode does not keep
correctly.
