Epson FX Series

PARTS LISTS

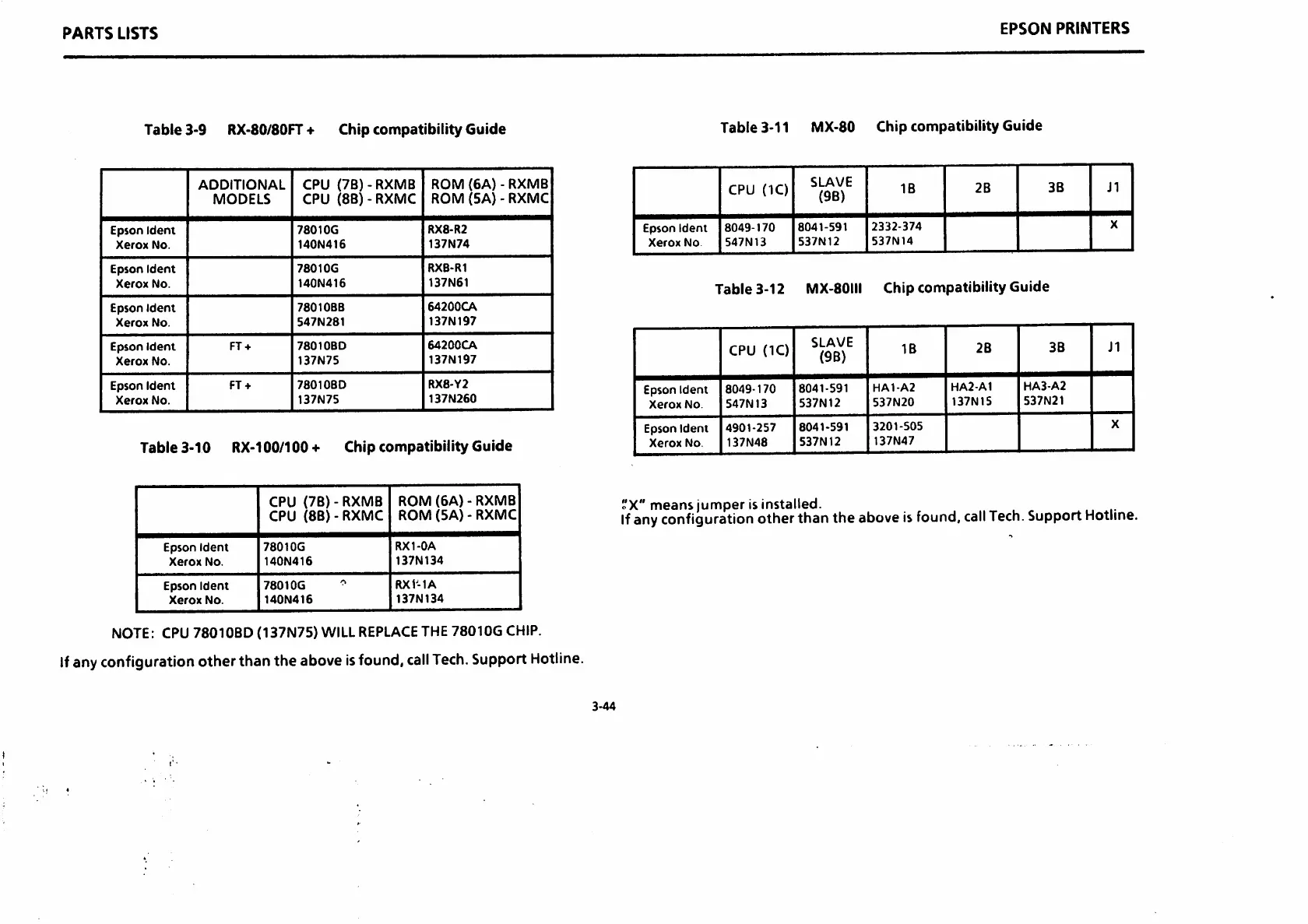

Table 3-9 RX-80/80FT -i- Chip compatibility Guide
ADDITIONAL
CPU (7B)-RXMB
ROM (6A) - RXMB
MODELS CPU (8B)-RXMC
ROM (5A) - RXMC
Epson Idem
7801OG
RX8-R2
Xerox No.
140N416
137N74
Epson Ident
78010G
RXB-R1
Xerox No.
140N416
137N61
Epson Ident
78010BB
64200CA
Xerox No.
547N281
137N197
Epson Ident
FT +
78010BD
64200CA
Xerox No.
137N75
137N197
Epson Ident
FT +
7801OBD
RX8-Y2
Xerox No.
137N75
137N260
Table 3-10 RX-100/100+ Chip compatibility Guide
CPU (7B) - RXMB
ROM (6A) - RXMB
CPU (8B)-RXMC
ROM (5A) - RXMC
Epson Ident
78010G
RX1-0A
Xerox No.
140N416
137N134
Epson Ident
78010G ^
RX1-1A
Xerox No.
140N416
137N134
NOTE: CPU 78010BD {137N75) WILL REPLACE THE 78010G CHIP.
Ifanyconfiguration other than the aboveisfound, call Tech. Support Hotline.
EPSON PRINTERS
Table 3-11 MX-80 Chip compatibility Guide
CPU (1C)
SLAVE
(9B)
IB
2B
3B
J1
Epson Ident
Xerox No
8049-170
547N13
8041-591
537N12
2332-374
537N14
X
1
fable 3-12
MX-80lil
Chip compatibility Guide
CPU (1C)
SLAVE
(9B)
IB
2B
SB
J1
Epson Ident
Xerox No.
8049-170
547N13
8041-591
537N12
HA1-A2
537N20
HA2-A1
137N15
HA3-A2
537N21
Epson Ident
Xerox No.
4901-257
137N48
8041-591
537N12
3201-505
137N47
X
?X"means jumper isinstalled. i. ^ .j *i-
Ifany configuration otherthan the above isfound, call Tech.Support Hothne.
3-44
