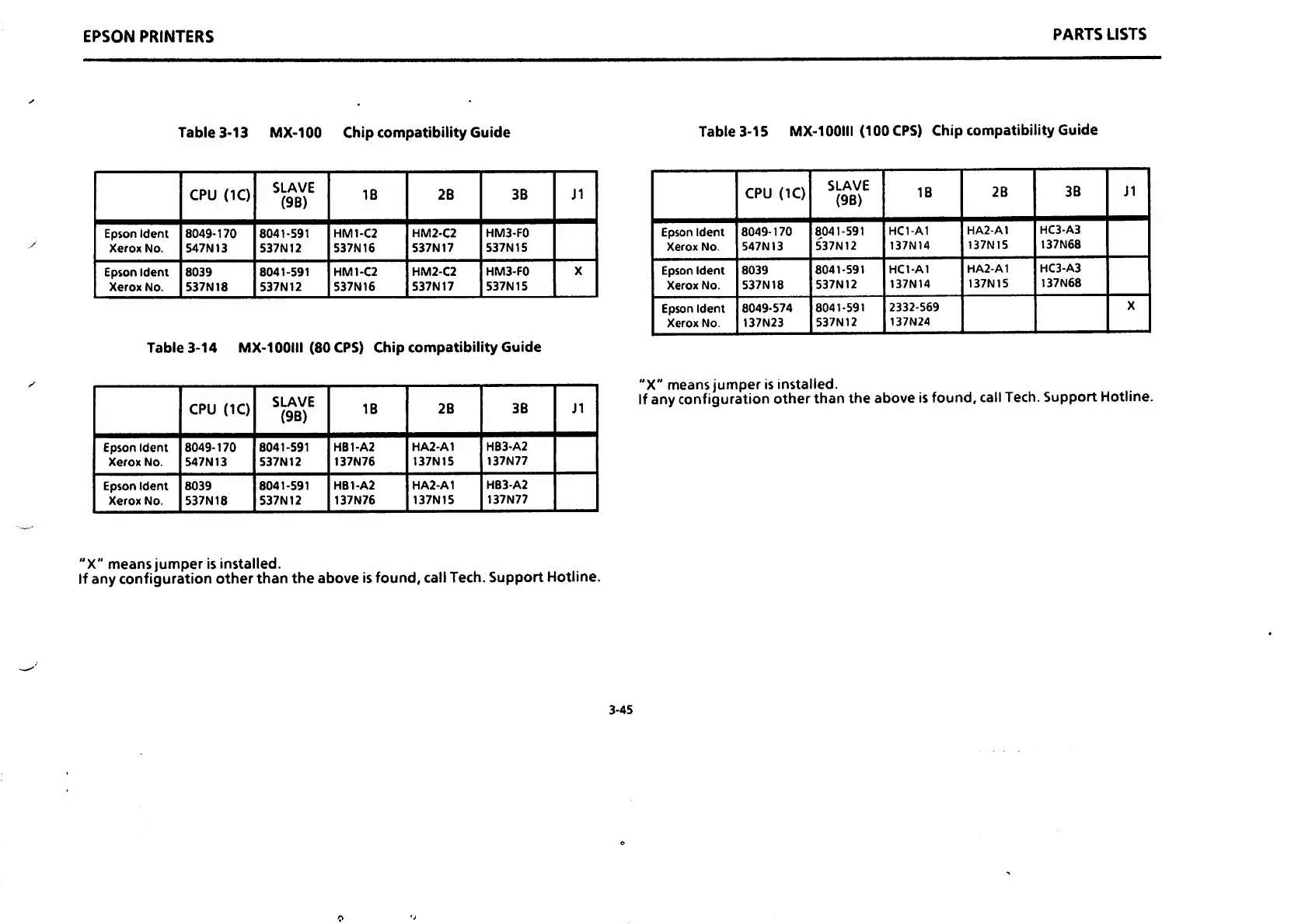

Table 3-13 MX-100 Chip compatibility Guide
CPU (1C)
SLAVE
(9B)
1B
2B 38
J1
y
Epson Ident
Xerox No.
8049-170
547N13
8041-591
537N12
HM1-C2
537N16
HM2-C2
537N17
HM3-F0
537N15
Epson Ident
Xerox No.
8039
537N18
8041-591
537N12
HM1-C2
537N16
HM2-C2
537N17
HM3-F0
537N15
X
Table 3-14 MX-IOOItl (80 CPS) Chip compatibility Guide
CPU (1C)
SLAVE
(9B)
IB
2B
3B
J1
Epson Ident
Xerox No.
8049-170
547N13
8041-591
537N12
HB1-A2
137N76
HA2-A1
137N15
HB3-A2
137N77
Epson Ident
Xerox No.
8039
537N18
8041-591
537N12
HB1-A2
137N76
HA2-A1
137N15
HB3-A2
137N77
"X" means jumper is installed.
Ifany configuration other than the above isfound, callTech.Support Hotline.
PARTS LISTS
Table 3-15 MX-1 OOlll (100 CPS) Chip compatibility Guide
CPU (IC)
SLAVE
(9B)
IB
2B
3B J1
Epson Ident
Xerox No.
8049-170
547N13
8041-591
537N12
HC1-A1
137N14
HA2-A1
137N15
HC3-A3
137N68
Epson Ident
Xerox No.
8039
537N18
8041-591
537N12
HC1-A1
137N14
HA2-A1
137N15
HC3-A3
137N68
Epson Ident
Xerox No.
8049-574
137N23
8041-591
537N12
2332-569
137N24
X
"X" means jumper is installed.
