Epson L565 Service Manual

L565/L566 Series Revision A

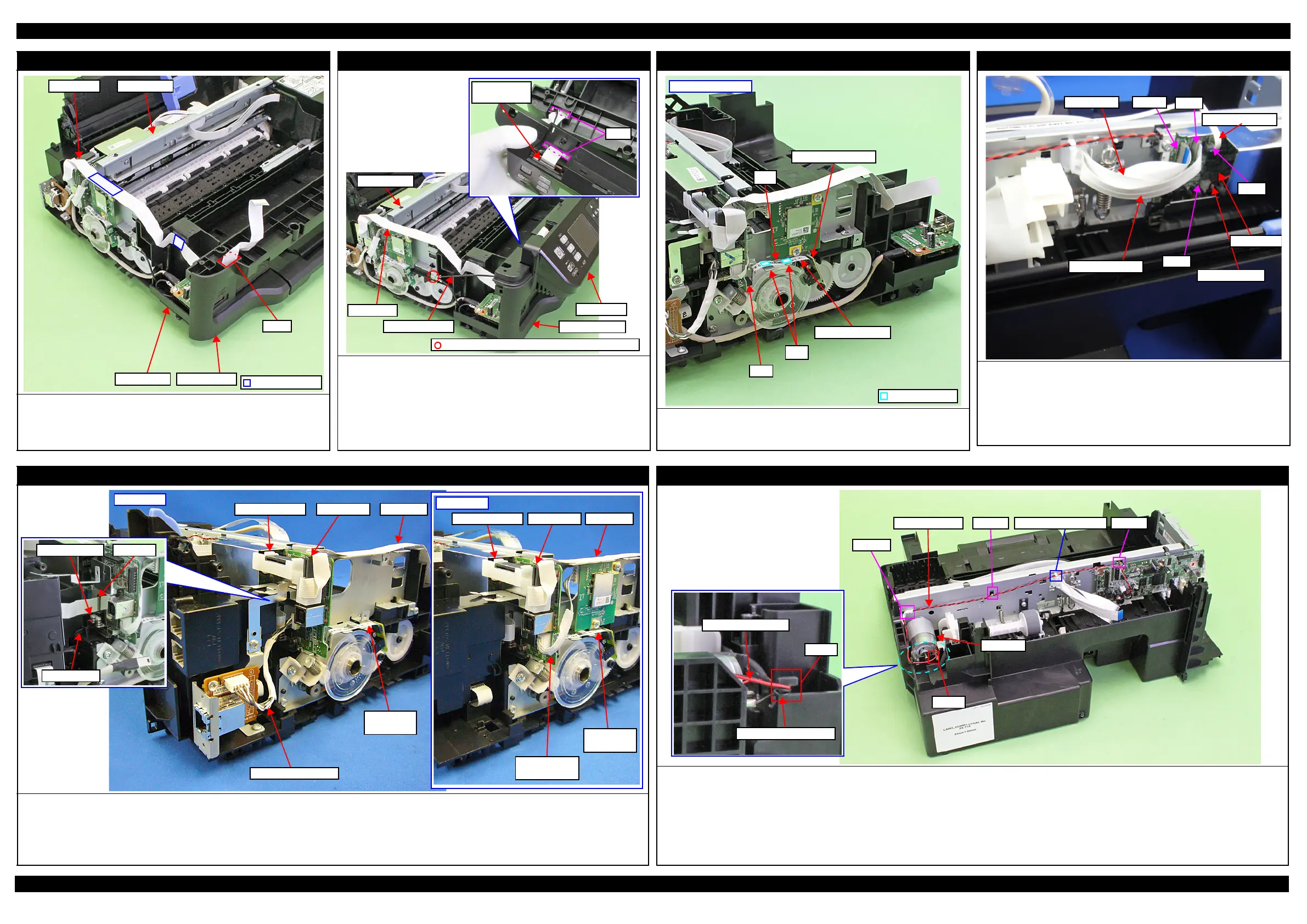

Disassembly/Reassembly Routing FFCs/cables 54
Confidential
Panel FFC
 Route the Frame Base and Main Frame along the folded line and secure
with the double-sided tape on the position shown in the above.
 After installing the Housing Front, route the Panel FFC through the hole
of the Housing Front.
Housing Front
Main FramePanel FFC
Frame Base
Hole
Double-sided tape
Panel Unit
 Route the Panel FFC and grounding wire as follows before installing the
Panel Unit.
• Route the Panel FFC through the hole of the Panel Unit and connect the
connector of the Panel Board.
• Route the grounding wire through the hole of the Housing Front.
 After installing the Panel Unit, secure the grounding wire to the Main
Frame on the position indicated in the figure above with screw (x1).
Hole
Connector of
Panel Board
Main Frame
Panel FFC
Grounding wire
Housing Front
Panel Unit
C.B.S-TITE SCREW 3x6 F/ZN-3C (6 ± 1 kgf·cm)
PF Encoder Sensor
Route the PF Encoder through ribs of the Main Frame and connect the
connector (CN7) of the Main Board. Then secure with the double-sided tape
(x2) on the position shown in above.
Left side of printer
PF Encoder Sensor
PF Encoder FFC
Rib
Double Side Tape
CN7
Ribs
Right side of Main Board
Connect the following cables/FFCs to the Main Board as shown in the figure
above.
• Paper sensor (CN6)
• CR Motor cable (CN12)
• CR Encoder FFC (CN61)
• Head FFC (CN102)
Main Boar
d
CN12
CN102Head FFC
CR Encoder FFC
CN61
CR Motor cable
CN8
Paper sensor FFC
Left side of Main Board
Connect the following cables/FFCs to the Main Board as shown above.
• PF Motor cable (CN13) • PS Unit cable (CN501)
• Wireless LAN Module Cable (CN4: only for L555 Series) • PF Encoder FFC (CN7)
• Ethernet Board cable (CN14: only for L550 Series) • FAX FFC (CN1)
• Panel FFC (CN2) : Secure the ferrite core of the FFC Holder MB and connect to the Main Board through the ferrite core.
FFC Holder MB Ferrite core
Panel FFC
PF Encoder
FFC
L555 Series
Wireless LAN
Module Cable
FFC Holder MB Ferrite core
Panel FFC
PF Encoder
FFC
L550 Series
PF Motor cable FAX FFC
PS Unit cable
Ethernet Board cable
CR Motor
Route the CR Motor cable as follows before installing the Shield Plate.
1. Route the CR Motor cable (black) around the rib A of the Frame Base (two turns).
2. Route the CR Motor cable (red) through the rib B of the Frame Base, and then route it through the rib A taking care not to let the CR Motor cable (red)
come over the CR Motor cable (black).
3. Twist the CR Motor cable (black) and CR Motor cable (red) twice, and then route them through the hook C of the Main Frame.
4. Route the CR Motor cable (black) and CR Motor cable (red) in the order of hook D of the Main Frame, groove of the FFC Holder, and hook E of the Main
Frame.
CR Motor cable (red)
Rib A
CR Motor cable (black)
Hook C
Rib B
CR Motor
Hook EGroove of FFC HolderCR Motor cable Hook D

Epson L565 Specifications

General

Duplex printing	No
Print technology	Inkjet
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	9.2 ppm
Print speed (color, normal quality, A4/US Letter)	4.5 ppm
Maximum copy resolution	- DPI
Image formats supported	JPG
Document formats supported	PDF
Optical scanning resolution	1200 x 2400 DPI
Faxing	Color faxing
Fax memory	100 pages
Digital sender	-
Printing colors	Black, Cyan, Magenta, Yellow
Country of origin	Indonesia
Maximum duty cycle	- pages per month
Paper input type	Paper tray
Total input capacity	30 sheets
Total output capacity	100 sheets
Photo paper sizes	10x15, 13x18 cm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
ISO C-series sizes (C0...C9)	C6
Maximum ISO A-series paper size	A4
Display	LCD
Control type	Touch
Product color	Black
Market positioning	Home & office
Security algorithms	128-bit WEP, 64-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP
Standard interfaces	USB 2.0
Internal memory	- MB
Sound pressure level (copying)	38 dB
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	1.6 W
Power consumption (average operating)	11 W
Sustainability certificates	ENERGY STAR
Pallet width	800 mm
Pallet height	1320 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	12 pc(s)
Quantity per pallet (UK)	24 pc(s)
Quantity per pallet layer	2 pc(s)
Quantity per pallet layer (UK)	4 pc(s)
Package depth	563 mm
Package width	465 mm
Package height	315 mm
Package weight	9060 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	377 mm
Width	484 mm
Height	226 mm
