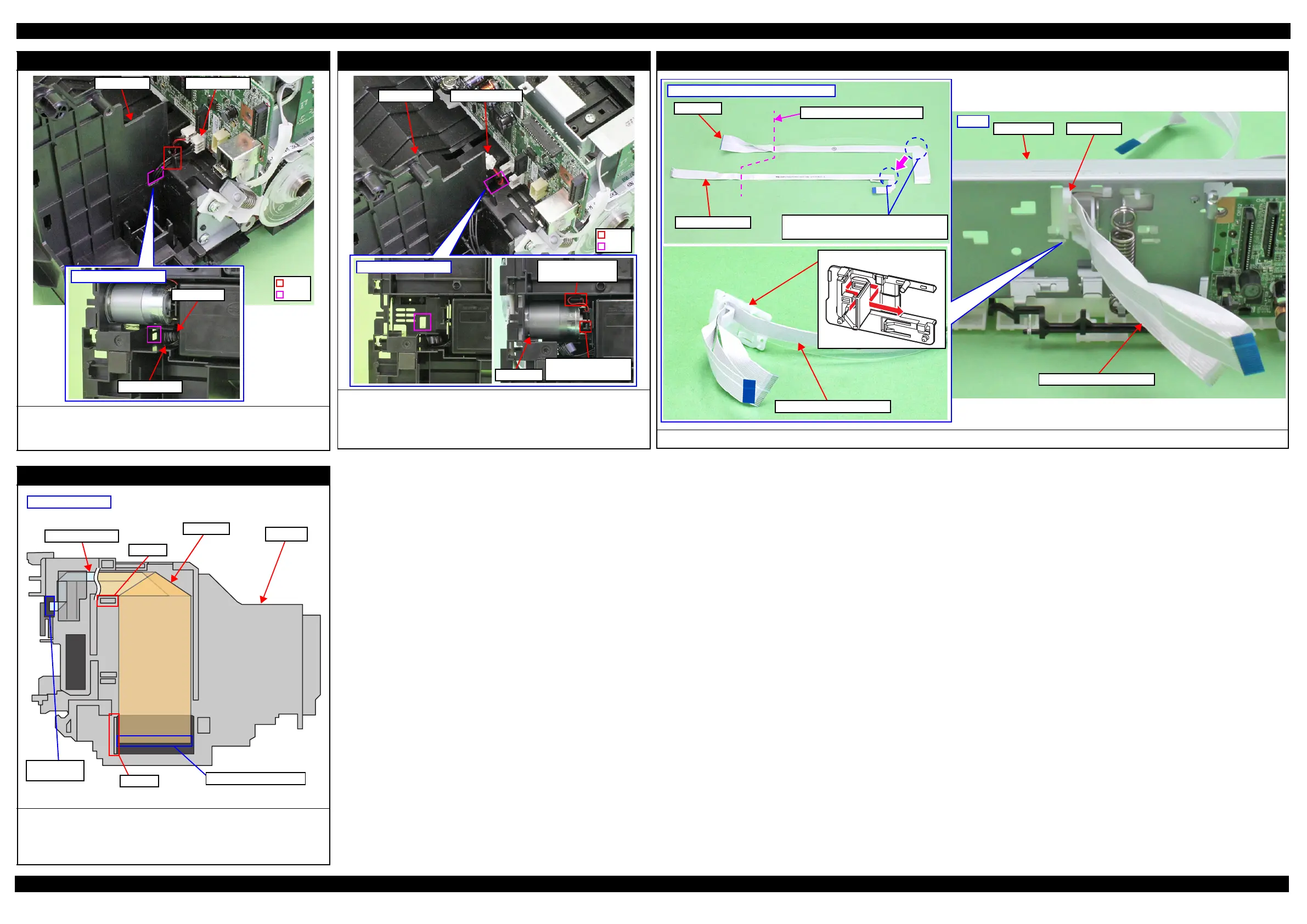

Epson L565 Service Manual

L565/L566 Series Revision A
Disassembly/Reassembly Routing FFCs/cables 55
Confidential
PS Unit
 Pull out the PS Unit cable from the hole of the Frame Base first, and then
route it through the rib of the Frame Base.
 Put the ferrite core into the position shown in the figure above.
Bottom of Frame Base
PS Unit cable
Ferrite core
PS Unit cableFrame Base
Hole
Rib
PF Motor
Route the PF Motor cable as follows.
1. Pull out the PF Motor cable from the hole of the Frame Base.
2. Install the PF Motor, and secure the PF Motor cable (black) with the rib of
the Frame Base, and then route it through the rib of the Frame Base.
Bottom of Frame Base
PF Motor
Route PF Motor
cable through rib.
Secure PF Motor
cable (black) with rib
.
PF Motor cable
Hole
Rib
Frame Base
Head FFC (Routing on the Main Frame)
Align the Head FFC and CR Encoder FFC, and then route them through the FFC Holder as shown in the figure above.
Head FFC
Fold here inside FFC Holder
Aligning Head FFC with CR Encoder FFC
CR Encoder FFC
Stack the Head FFC over the CR Encoder
FFC to keep the Head FFC on top.
FFC Holder
Head FFC/CR Encoder FFC
Rear
FFC HolderMain Frame
Head FFC/CR Encoder FFC
Head FFC (Routing on the CR Unit)
 Route the CR Encoder FFC along the Rib A and connect it to the
connector of the CR Encoder.
 Route the Head FFC through the rib A and B, and then connect it to the
connector of the Printhead.
Connector of Printhead
Left side of CR Unit
Connector of
CR Encoder
Rib A
Head FFC
CR Unit
Rib B
CR Encoder FFC
