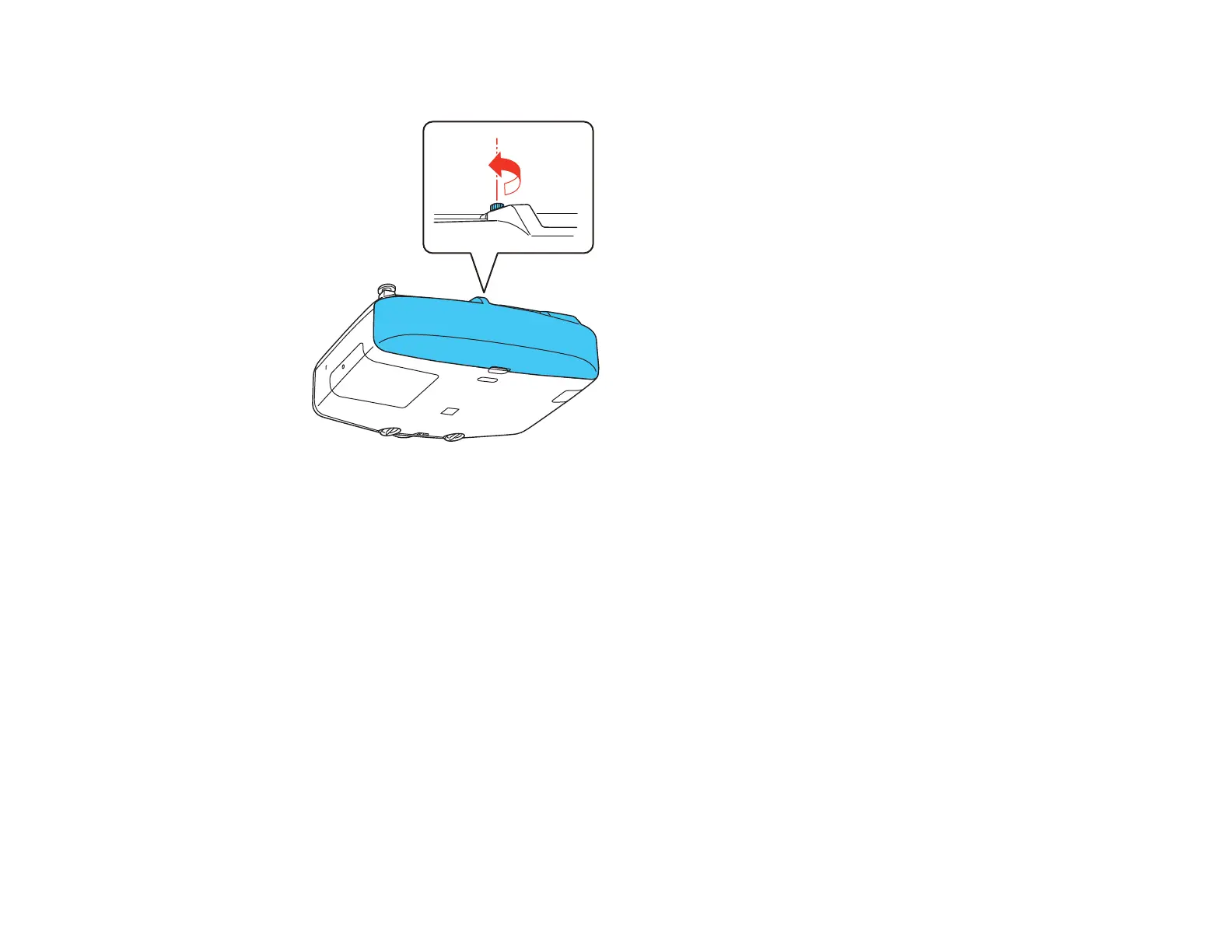

3.
Tighten
both
cable
cover
screws.
To
remove
the
cover,
loosen
both
screws
and
take
the
cover
off
of
the
projector.
Parent
topic:
Setting
Up
the
Projector
Attaching
and
Removing
the
HDMI
Cable
Clip
You
can
install
the
HDMI
cable
clip
that
came
with
your
projector
to
provide
additional
support
to
the
HDMI
cable.
1.
Plug
in
the
HDMI
cable.
43
42
44
Table of Contents
Default Chapter
3
Table of Contents
3
Powerlite 4650/4750W/4855WU User's Guide
9
Introduction to Your Projector
10
Projector Features
10
Product Box Contents
11
Additional Components
12
Optional Equipment and Replacement Parts
13
Warranty and Registration Information
14
Notations Used in the Documentation
15
Where to Go for Additional Information
15
Projector Part Locations
15
Projector Parts - Front/Top
16
Projector Parts - Rear
17
Projector Parts - Interface Ports
17
Projector Parts - Base
20
Projector Parts - Control Panel
21
Projector Parts - Remote Control
22
Setting up the Projector
25
Projector Placement
25
Projector Setup and Installation Options
25
Projection Distance
28
Projector Connections
30
Connecting to Computer Sources
30
Connecting to a Computer for VGA Video
30
Connecting to a Computer for HDMI Video and Audio
31
Connecting to a Computer for Displayport Video and Audio
32
Connecting to a Computer for 5 BNC Video
33
Connecting to a Computer for Sound
34
Connecting to an HDMI Video Source
35
Connecting to Video Sources
35
Connecting to a Component-To-BNC Video Source
36
Connecting to a Component-To-VGA Video Source
36
Connecting to an S-Video Video Source
37
Connecting to a Composite Video Source
38
Connecting to a Video Source for Sound
39
Connecting to an External Computer Monitor
40
Connecting to External Speakers
40
Attaching and Removing the Cable Cover
41
Attaching and Removing the HDMI Cable Clip
43
Installing Batteries in the Remote Control
44
Using the Projector on a Network
47
Wired Network Projection
47
Connecting to a Wired Network
48
Selecting Wired Network Settings
48
Wireless Network Projection
51
Installing the Wireless LAN Module
52
Using Quick Wireless Connection (Windows Only)
54
Selecting Wireless Network Settings Manually
56
Wireless LAN Menu Settings
59
Selecting Wireless Network Settings in Windows
60
Selecting Wireless Network Settings in Mac os X
60
Setting up Wireless Network Security
61
Wireless Security Menu Settings
62
Setting up Projector Network E-Mail Alerts
63
Network Projector E-Mail Alert Messages
64
Setting up Monitoring Using SNMP
64
Controlling a Networked Projector Using a Web Browser
66
Crestron Roomview Support
68
Setting up Crestron Roomview Support
68
Controlling a Networked Projector Using Crestron Roomview
69
Using Basic Projector Features
71
Turning on the Projector
71
Turning off the Projector
73
Selecting the Language for the Projector Menus
74
Setting the Screen Type
74
Adjusting the Image Position Using Screen Position
75
Displaying a Test Pattern
76
Adjustable Settings Using a Test Pattern
77
Adjusting the Image Position Using Lens Shift
78
Adjusting the Image Height
82
Image Shape
83
Correcting Image Shape with H/V Keystone
83
Correcting Image Shape with Quick Corner
85
Correcting Image Shape with Arc Corner
86
Correcting Image Shape with Point Correction
88
Resizing the Image with the Zoom Ring
90
Focusing the Image Using the Focus Ring
90
Remote Control Operation
91
Selecting an Image Source
92
Projection Modes
93
Changing the Projection Mode Using the Remote Control
94
Changing the Projection Mode Using the Menus
94
Image Aspect Ratio
95
Changing the Image Aspect Ratio
96
Available Image Aspect Ratios
96
Color Mode
97
Changing the Color Mode
98
Available Color Modes
98
Turning on Auto Iris
99
Controlling the Volume with the Volume Buttons
100
Setting the Date and Time
100
Adjusting Projector Features
102
Shutting off the Picture and Sound Temporarily
102
Stopping Video Action Temporarily
103
Zooming into and out of Images
103
Projector Security Features
104
Password Security Types
104
Setting a Password
105
Selecting Password Security Types
106
Entering a Password to Use the Projector
107
Saving a User's Logo Image to Display
108
Locking the Projector's Buttons
110
Unlocking the Projector's Buttons
110
Installing a Security Cable
111
Projecting Two Images Simultaneously
111
Using Multiple Projectors
113
Projector Identification System for Multiple Projector Control
113
Setting the Projector ID
113
Setting the Remote Control ID
114
Adjusting the Position of the Projected Image from Multiple Projectors
115
Matching the Image Colors
116
Viewing 3D Images
117
Saving Settings to Memory and Using Saved Settings
117
Saving a Scheduled Event
118
Editing a Scheduled Event
119
Viewing Scheduled Events
119
Adjusting the Menu Settings
121
Using the Projector's Menus
121
Image Quality Settings - Image Menu
122
Input Signal Settings - Signal Menu
124
Projector Feature Settings - Settings Menu
127
Projector Setup Settings - Extended Menu
130
Projector Network Settings - Network Menu
134
Projector Information Display - Info Menu
135
Event ID Code List
137
Projector Reset Options - Reset Menu
138
Maintaining and Transporting the Projector
140
Projector Maintenance
140
Cleaning the Lens
140
Cleaning the Projector Case
141
Air Filter and Vent Maintenance
141
Cleaning the Air Filter
142
Replacing the Air Filter
145
Projector Lamp Maintenance
147
Replacing the Lamp
147
Resetting the Lamp Timer
151
Replacing the Remote Control Batteries
152
Transporting the Projector
154
Solving Problems
155
Projection Problem Tips
155
Projector Light Status
155
Using the Projector Help Displays
159
Solving Image or Sound Problems
159
Solutions When no Image Appears
160
Solutions When "No Signal" Message Appears
160
Displaying from a Mac Laptop
161
Displaying from a PC Laptop
161
Solutions When "Not Supported" Message Appears
161
Solutions When Only a Partial Image Appears
162
Solutions When the Image Is Not Rectangular
162
Solutions When the Image Contains Noise or Static
163
Solutions When the Image Is Fuzzy or Blurry
163
Solutions When the Image Brightness or Colors Are Incorrect
164
Solutions to Sound Problems
164
Solving Projector or Remote Control Operation Problems
165
Solutions to Projector Power or Shut-Off Problems
165
Solutions to Problems with the Remote Control
166
Solutions to Password Problems
167
Solutions When Network Alert E-Mails Are Not Received
167
Where to Get Help
167
Technical Specifications
169
General Projector Specifications
169
Projector Lamp Specifications
172
Remote Control Specifications
173
Projector Dimension Specifications
173
Projector Electrical Specifications
173
Projector Environmental Specifications
175
Projector Safety and Approvals Specifications
175
Supported Video Display Formats
175
Notices
179
Recycling
179
Important Safety Information
179
Important Safety Instructions
180
Restriction of Use
183
FCC Compliance Statement
183
Trademarks
184
Open Source Software License
184
Copyright Notice
229
A Note Concerning Responsible Use of Copyrighted Materials
230
Copyright Attribution
230
