17
English

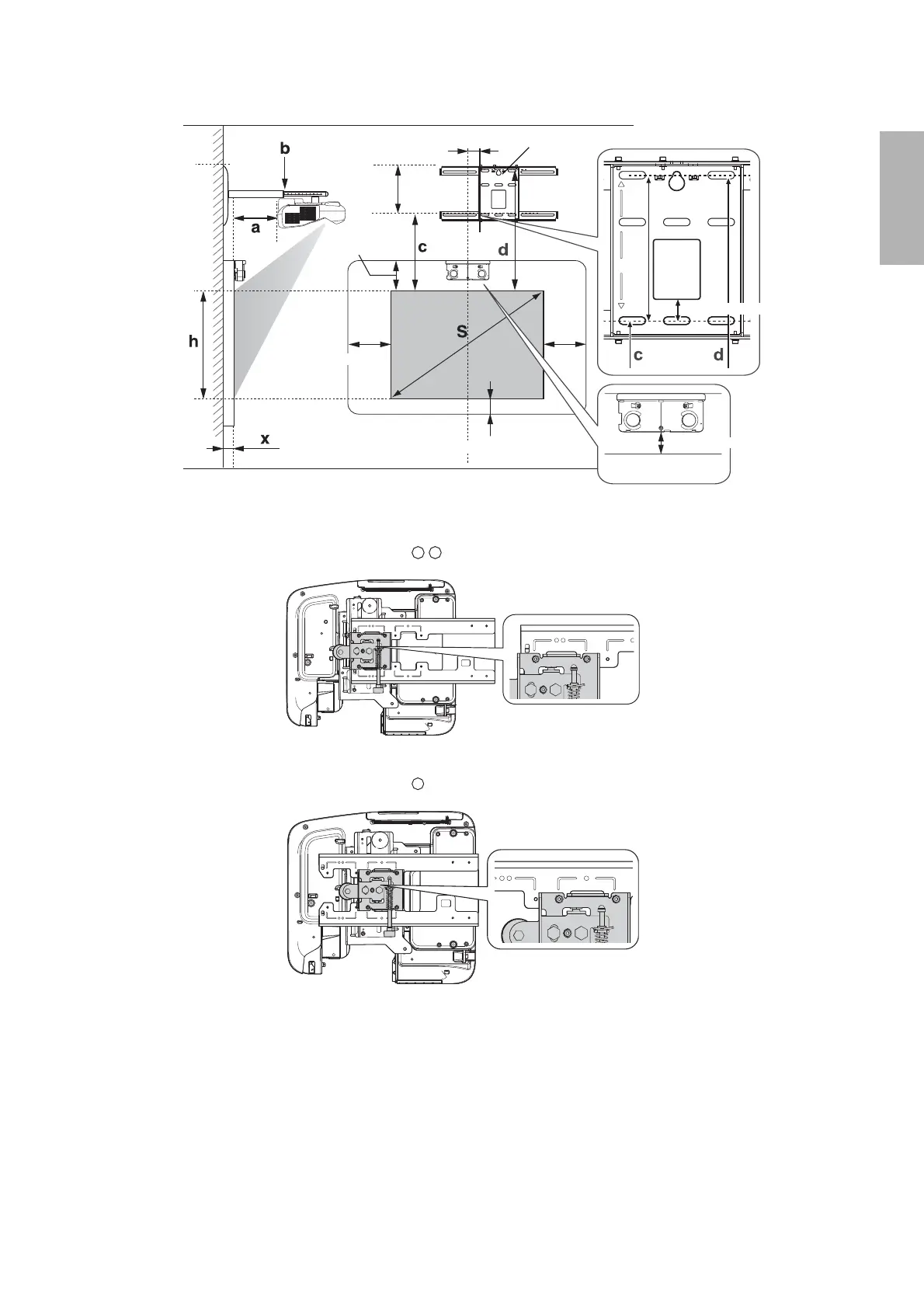

Diagonal image size and mounting position
In order to see the stamp and the numbers on the slider scale, you need to slide out the arm extension.
When the diagonal image size is 75 inches or more (85 inches or more for WUXGA images), mount the 3-axis
adjustment unit at the position marked with a stamp.
When the diagonal image size is less than 75 inches (85 inches for WUXGA images), mount the 3-axis
adjustment unit at the position marked with a stamp.
Wall plate
Distance from wall to
projection surface
2.8 in. (70.5 mm)
8.3 in.
(210 mm)
Height of
projected
4.0 in. (100 mm)
1 to 3.9 in. (25 to 100mm)
0.8 in. (20 mm)
1.1 in. (28.3 mm)
4.7 in.
(120 mm)
