40

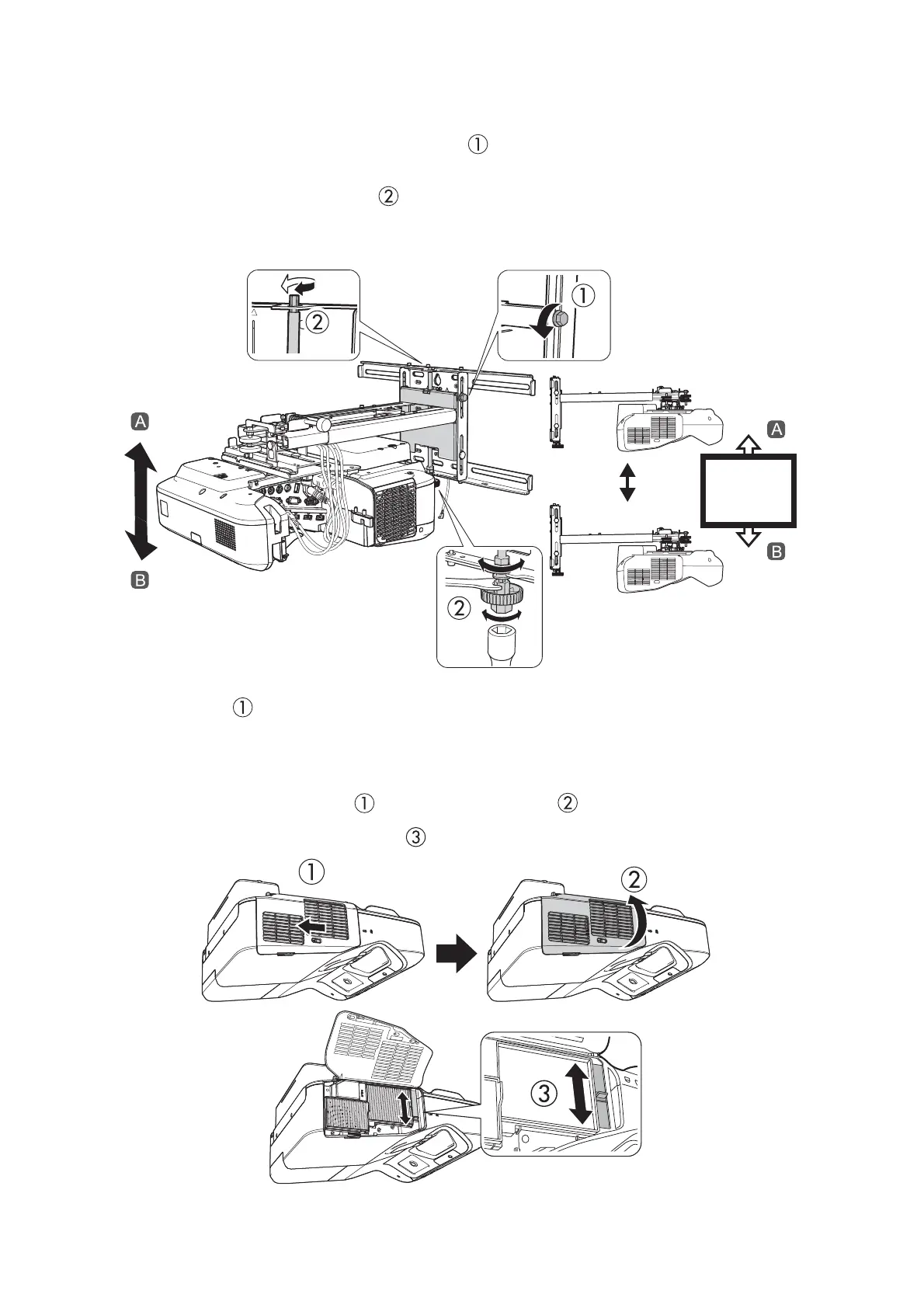

J Adjust the vertical slide
1. Loosen the M6 × 20 mm hexagon shoulder bolt ( ).
2. Adjust the vertical slide with the M8 hexagon bolt at the bottom of the wall mount, or the hexagonal
shaft at the top of the wall mount ( ).
Tightening the M8 hexagon bolt lowers the wall mount, and loosening the bolt raises it.
Tightening the hexagonal shaft raises the wall mount, and loosening the shaft lowers it.
3. After you finish making your adjustments, tighten the M6 × 20 mm hexagon shoulder bolt you
loosened in .
K Re-adjust the focus
1. Slide the air filter cover switch ( ) to open the air filter cover ( ).
2. Use the focus lever to adjust the focus ( ).
3. After you finish making the adjustment, close the air filter cover.
To Next Page
