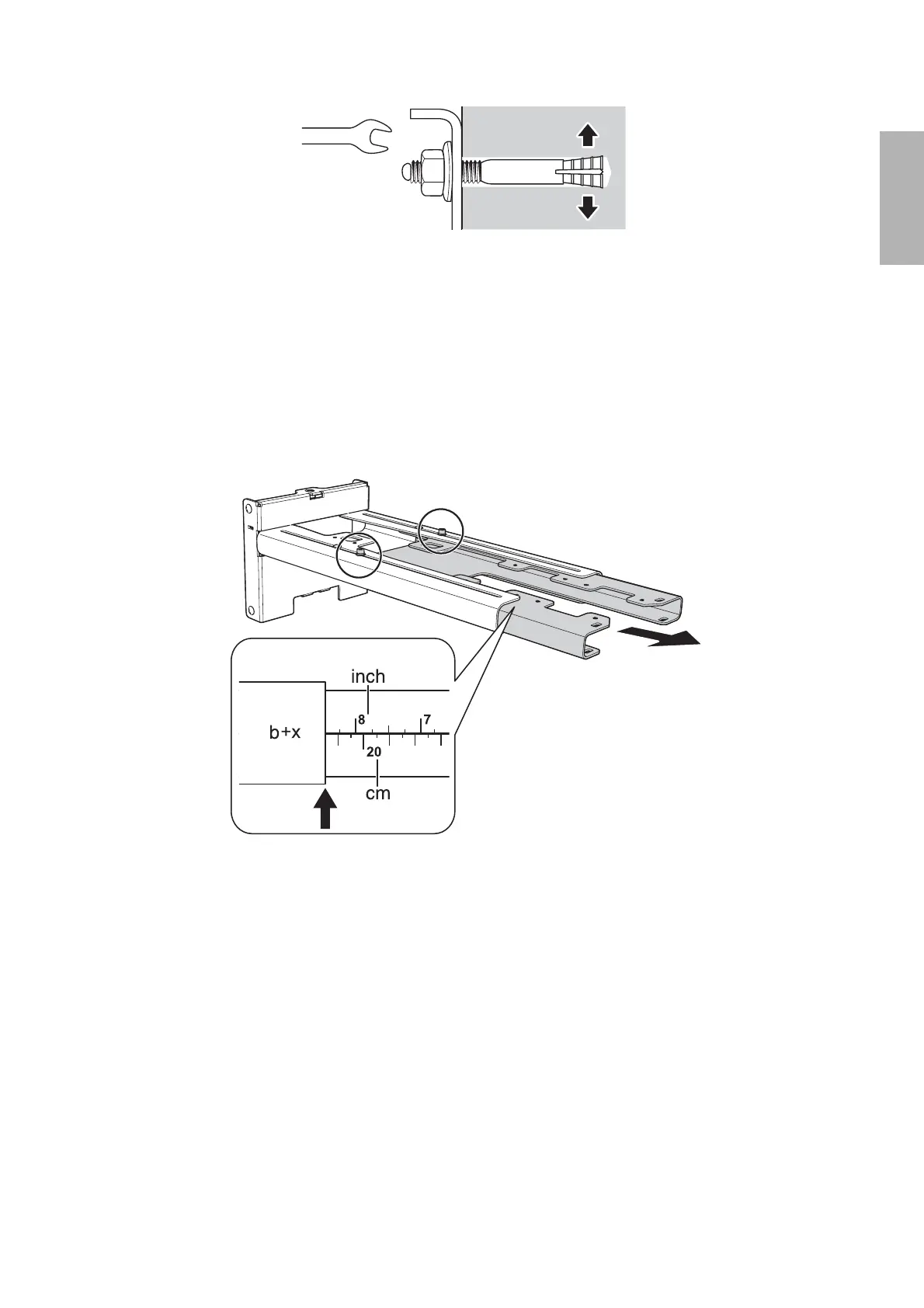

9. Tighten the nut with a wrench to secure the wall plate to the wall.
10. Remove the temporary wall plate screw.
C Determine the projection distance and pull out the mount arm slider
1. Using the tables on pages 19 to 24, check the number for the slider measure (b).
2. Loosen the M4 × 12 mm hexagon socket head cap bolts (×2), and then pull out the slider on the wall
mount.
Align the slider with the measure (b+x) that is equal to the slider measure (b) plus the thickness of the
projection screen (x).
For an illustration of how to measure the thickness of the projection screen (x), see page 17.
