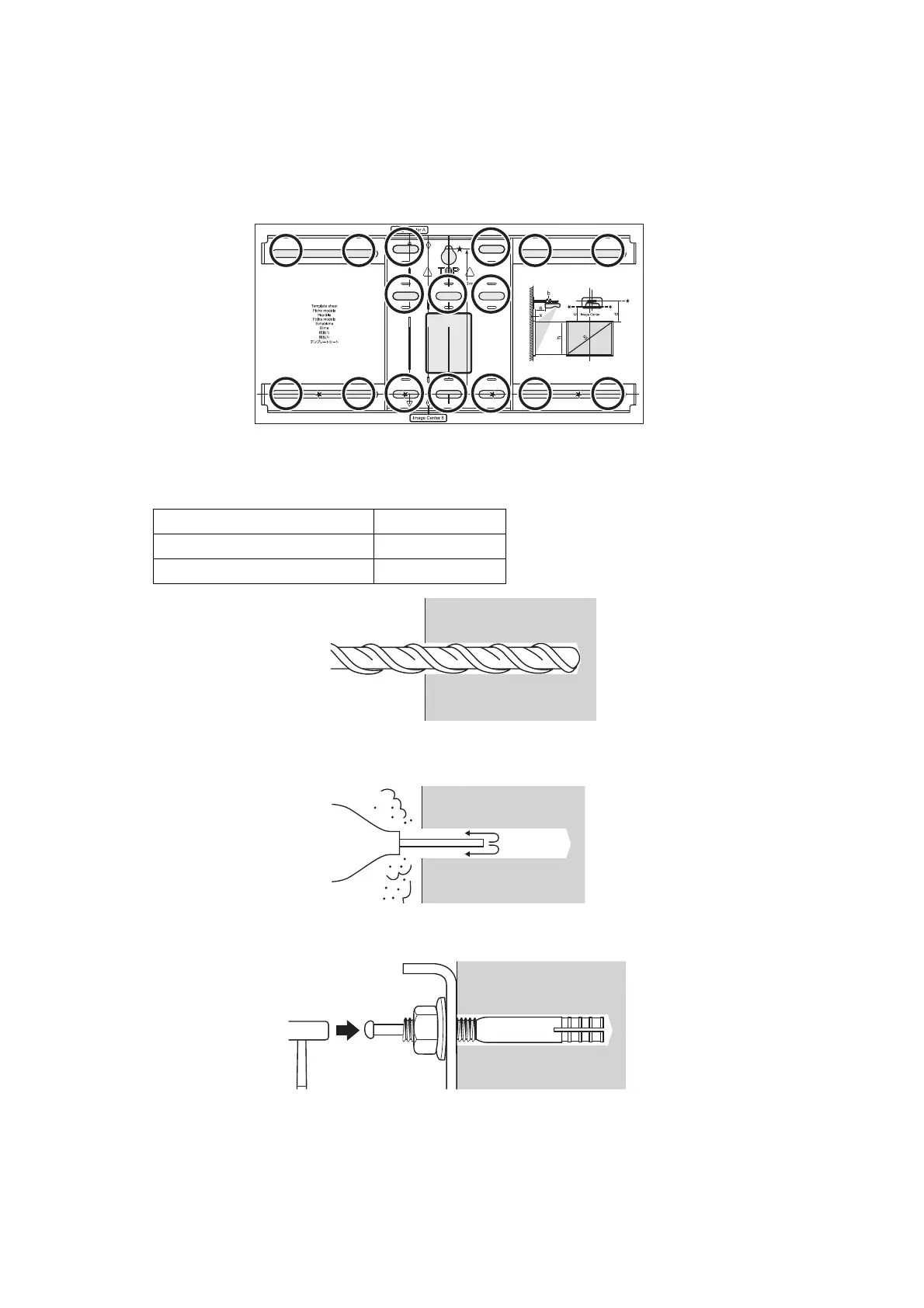

2. Attach the template sheet to the wall.
3. Drive an M10 screw (not included) into the temporary wall plate hole.
Leave at least 0.2 inch (6 mm) between the screw head and the wall.
4. Determine the position of the wall plates mounting holes.
Use at least four mounting holes.
Steps 5 to 9 below provide instructions for attaching the wall plate to a concrete wall.
5. Drill holes of the following diameters and depths.
6. Remove the template sheet.
7. Use a device such as a dust pump to clean out concrete dust from the hole.
8. Position the wall plate on the wall and insert M10 × 60 mm expansion anchors into the holes. Attach
the nut and tap it with a hammer until the core touches the top of the anchor.
Drill diameter 0.41 in. (10.5 mm)
Pilot hole depth 1.8 in. (45 mm)
Anchor hole depth 1.6 in. (40 mm)
