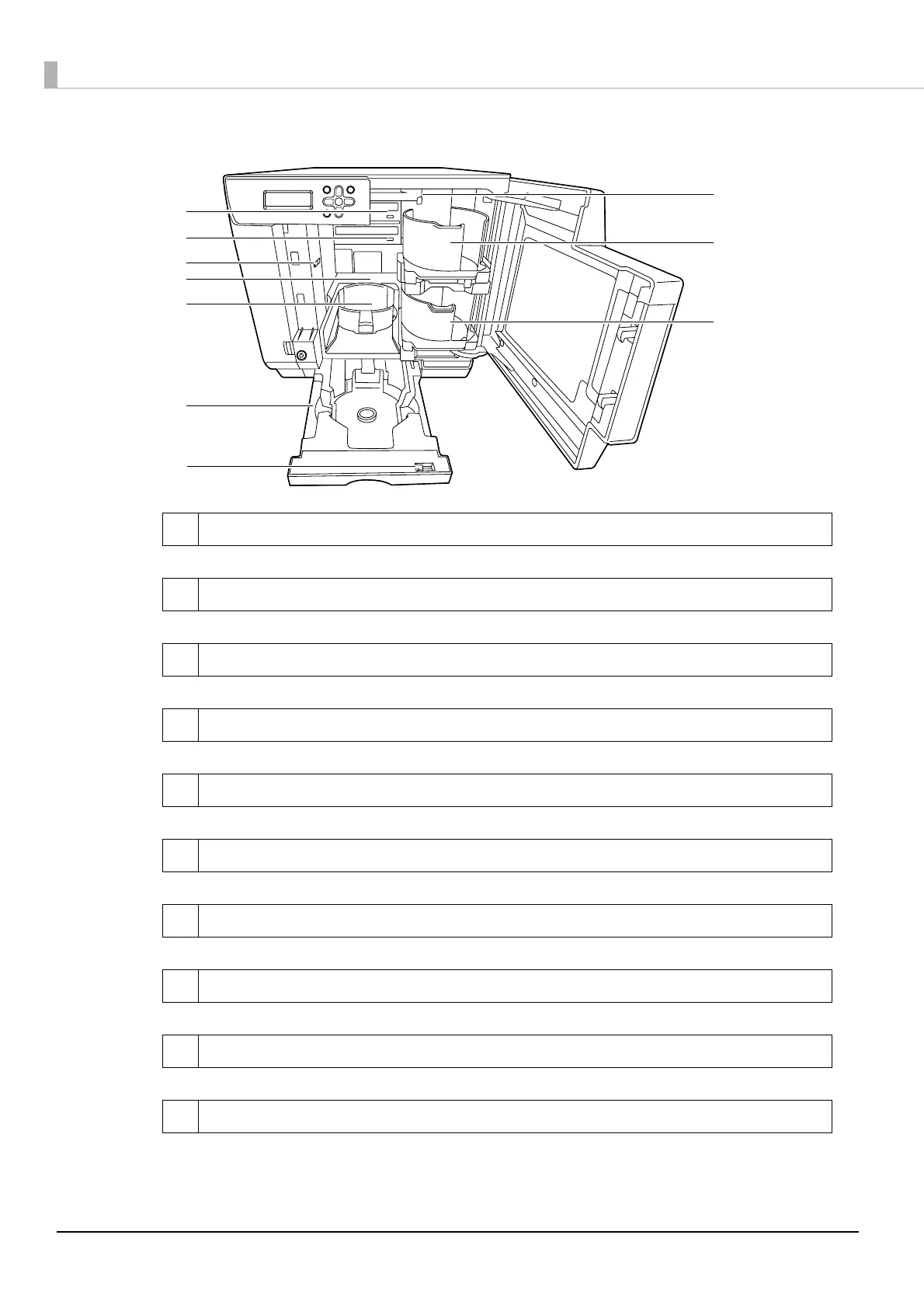

Inside
1Drive 1
Writes data on the recording surface of the discs.
2Drive 2
Writes data on the recording surface of the discs.
3 Security lock switch
Turns the disc cover lock function on and off.
4 Printer
Prints on the label surface of the discs.
5Stacker 3
Use as the disc output stacker in Batch Mode. Holds up to about 50 discs.
6Stacker 4
Use as a disc output stacker. Holds up to about 5 discs.
7 Lock lever
Locks and unlocks Stacker 4. Be sure to lock when attaching Stacker 3.
8Arm
Transports discs.
9Stacker 1
Use Stacker 1 as a disc input stacker. Holds up to about 50 discs.
10 Stacker 2
Use Stacker 2 as a disc input or output stacker. Holds up to about 50 discs.
4
2
1
5
6
7
9
8
10
3
