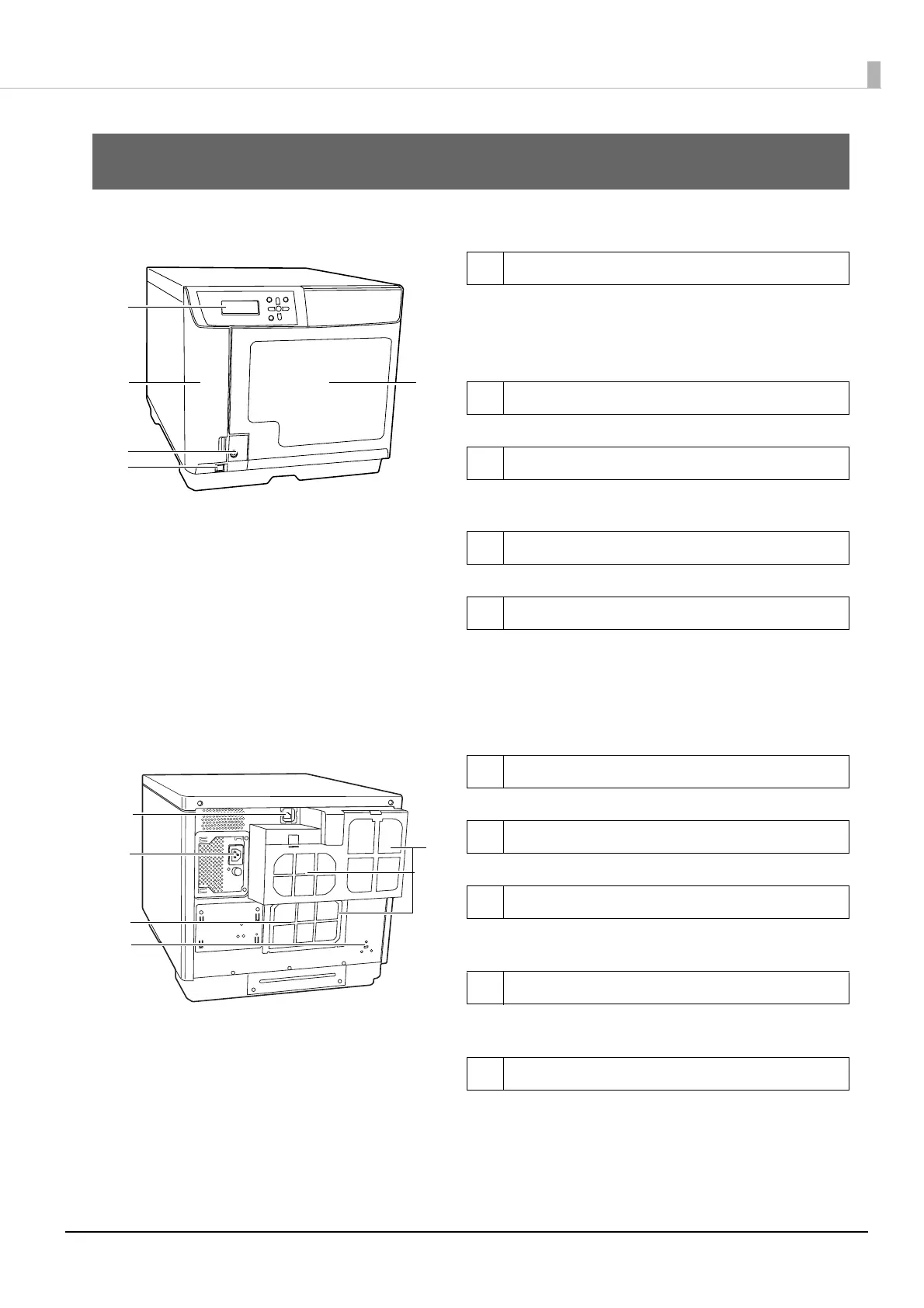

Part Names and Functions
Part Names and Functions
Front
Back
1 Control panel
Use to control this product (PP-100N). It also
shows the status of the product and menus.
See “Control panel” on page 15 in this guide for
details on the control panel.
2 Ink cartridge cover
Open to insert and replace ink cartridges.
3 Disc cover lock
Use the disc cover key to lock and unlock the
disc cover (when the security lock switch is on).
4Power button
Use to turn the product on and off.
5 Disc cover
Open when loading or taking out discs.
1 Ethernet interface connector
Plug the Ethernet cable into this connector.
2 AC inlet
Plug the power cord into this connector.
3 Rear printer cover
Open this cover only when a disc is stuck in the
printer tray.
4Security slot
Allows you to attach a commercially available
antitheft wire.
5 Air vents
Expel heat generated inside this product to
prevent the temperature from rising. Leave at
least 10 cm between the back of the product
and the wall for ventilation.
2
1
4
5
3
1
4
2
3
5
