2. Installation
RC180 Safety and Installation Rev.18
44

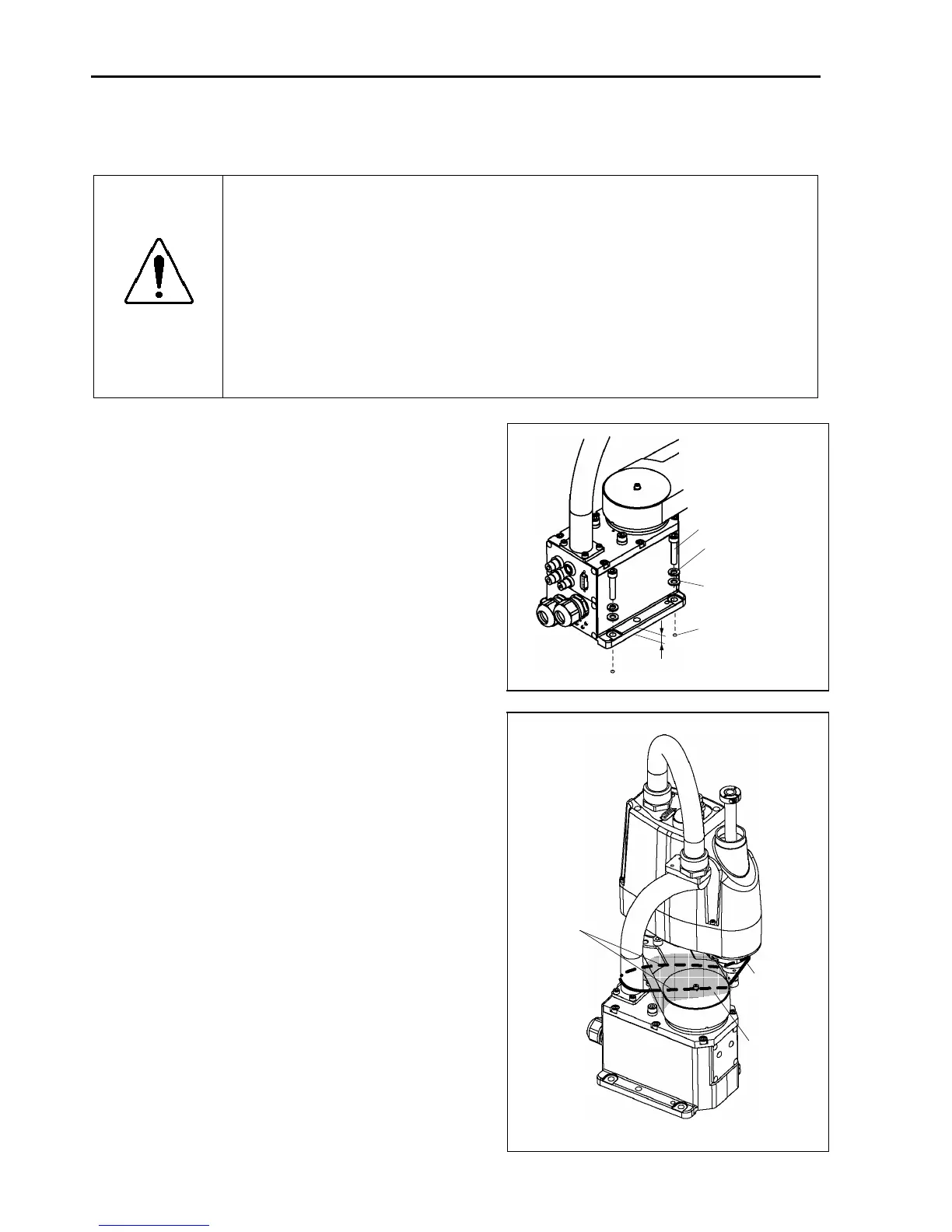

G3 : Table Top Mounting
CAUTION
■
Install the Table Top Mounting Manipulator with two or more people.
The Manipulator weights are as follows. Be careful not to get
hands, fingers, or feet caught and/or have equipment damaged by
a fall of the Manipulator.
G3-251* : approx. 14 kg: 31 lb.
G3-301* : approx. 14 kg: 31 lb.
G3-351* : approx. 14 kg: 31 lb.
10 mm
4-M8
30
Screw Hole
(depth 20 mm
or more)
Spring
Washer
Plane
Washer
(1) Secure the base to the base table
with four bolts.
Use bolts with specifications
conforming to ISO898-1 Property
Class: 10.9 or 12.9.
(2) Using nippers, cut off the wire tie
binding the shaft and arm
retaining bracket on the base.
(3)
Remove the bolts securing the
wire ties removed in step (2).
(4) Remove the shipping bolt and
jigs.
)
NOTE
Bolt
:M4
To Next Page
