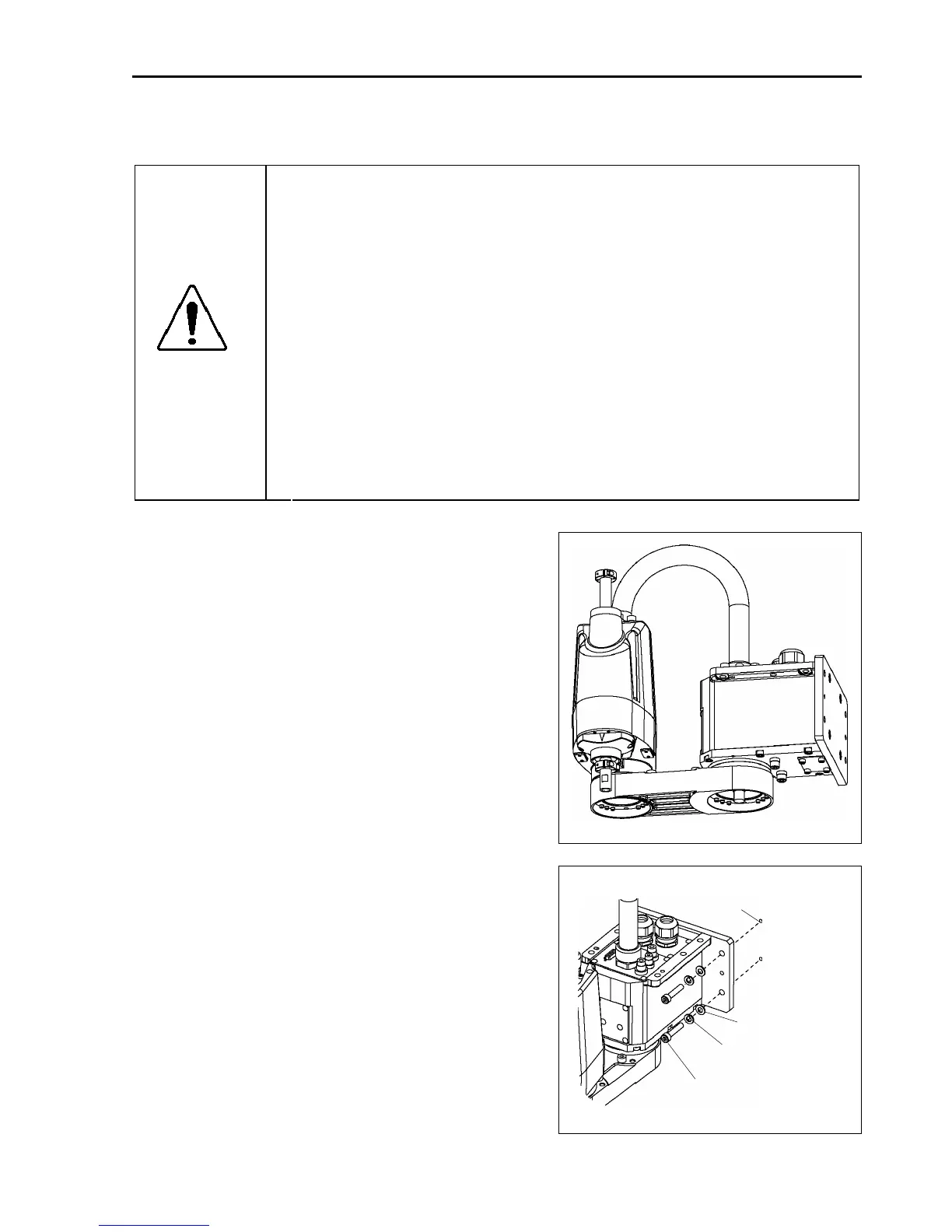

G3 : Multiple Mounting
■
Install the Multiple Mounting Manipulator with two or more people.
The Manipulator weights are as follows. Be careful not to get
hands, fingers, or feet caught and/or have equipment damaged by
a fall of the Manipulator.
G3-301*M : approx. 14 kg: 31 lb.
G3-351*M : approx. 14 kg: 31 lb.
WARNING
■
When installing the Manipulator to the wall, support the
Manipulator, and then secure the anchor bolts. Removing the
support without securing the anchor bolts properly is extremely
hazardous and may result in fall of the Manipulator.
(1)
Unpack the manipulator with
retaining the arm posture.
(2)
Secure the base to the wall with
four bolts.
Use bolts with specifications
conforming to ISO898-1 Property
Class: 10.9 or 12.9.
(3) Remove the shipping bolt and
jigs.
4-M8
×
30
Screw Hole
(depth 20 mm or more)
Spring Washer
Plane Washe
r
)
